With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch ON.

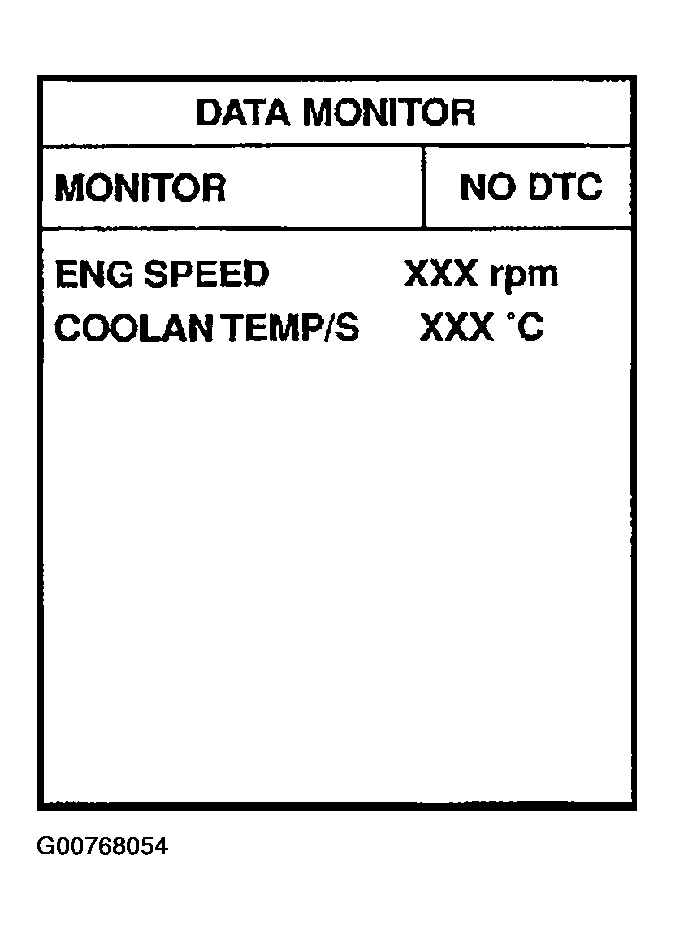

- Select "DATA MONITOR" mode with CONSULT-II.
- Check that "COOLANT TEMP/S" is above 10°C (50°F).
If it is above 10°C (50°F), the test result will be OK. If it is below 10°C (50°F), go to following step.
- Start engine and run it for 65 minutes at idle speed.
If "COOLANT TEMP/S" increases to more than 10°C (50°F) within 65 minutes, stop engine because the test result will be OK.
- If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
