Component Description

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

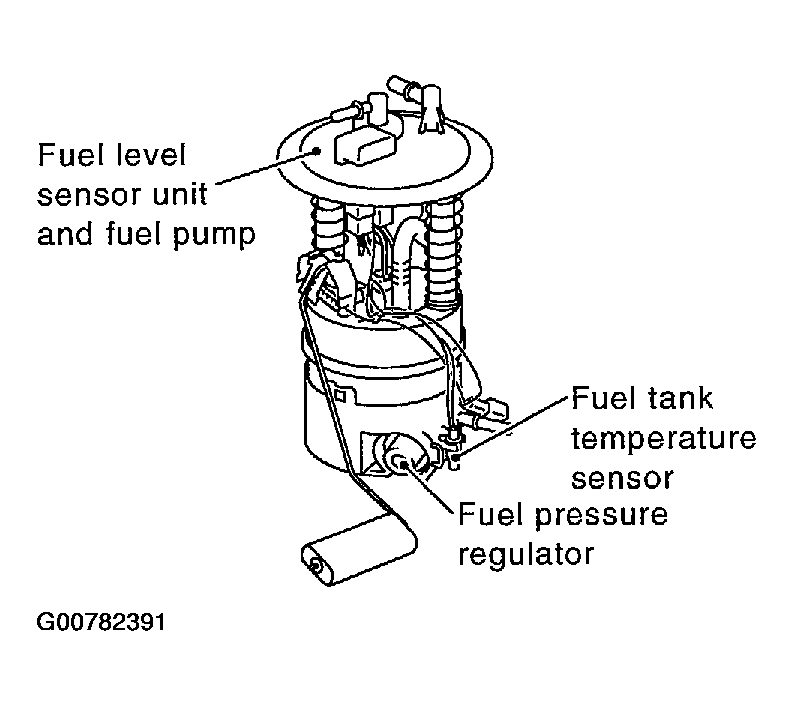

Fig 1: Locating Fuel Tank Temperature Sensor (P0181)

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

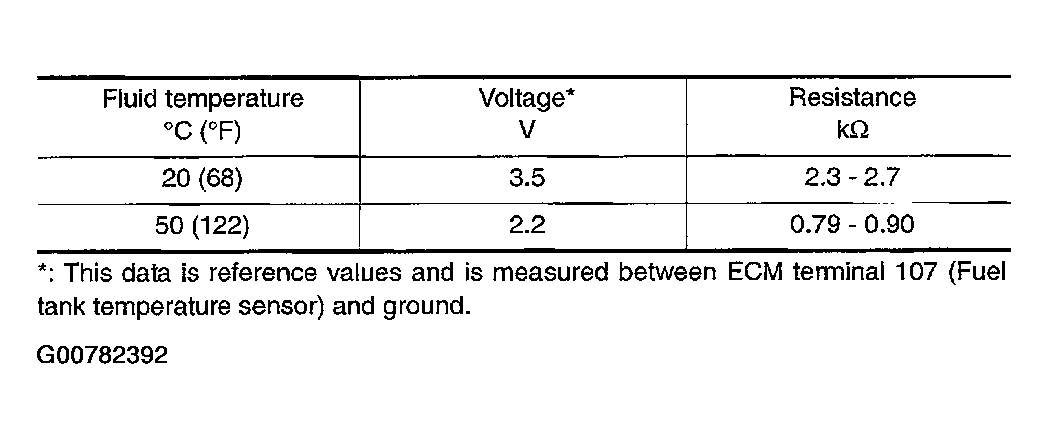

Fig 2: Fluid Temperature, Voltage And Resistance Reference Chart (P0181)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Temperature-Resistance Graph (P0181)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
