Fuel Tank Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel level sensor unit.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

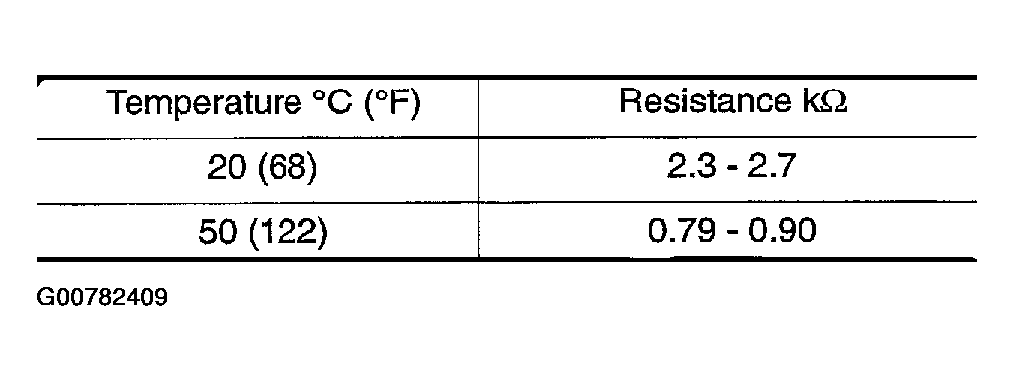

    Fig 1: Temperature-Resistance Specifications (P0182 P0183)
    G00782409Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals (P0182 P0183)
    G00782410Courtesy of NISSAN MOTOR CO., U.S.A.
