Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

RETIGHTEN GROUND SCREWS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws.
  1. GO TO 2.

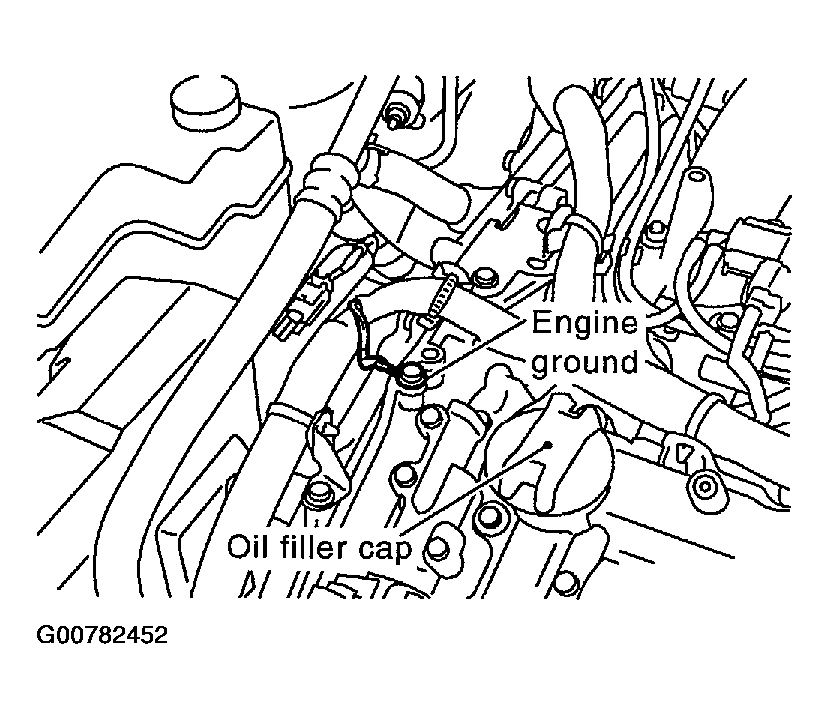

    Fig 1: Tightening Engine Ground Screws
    Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.

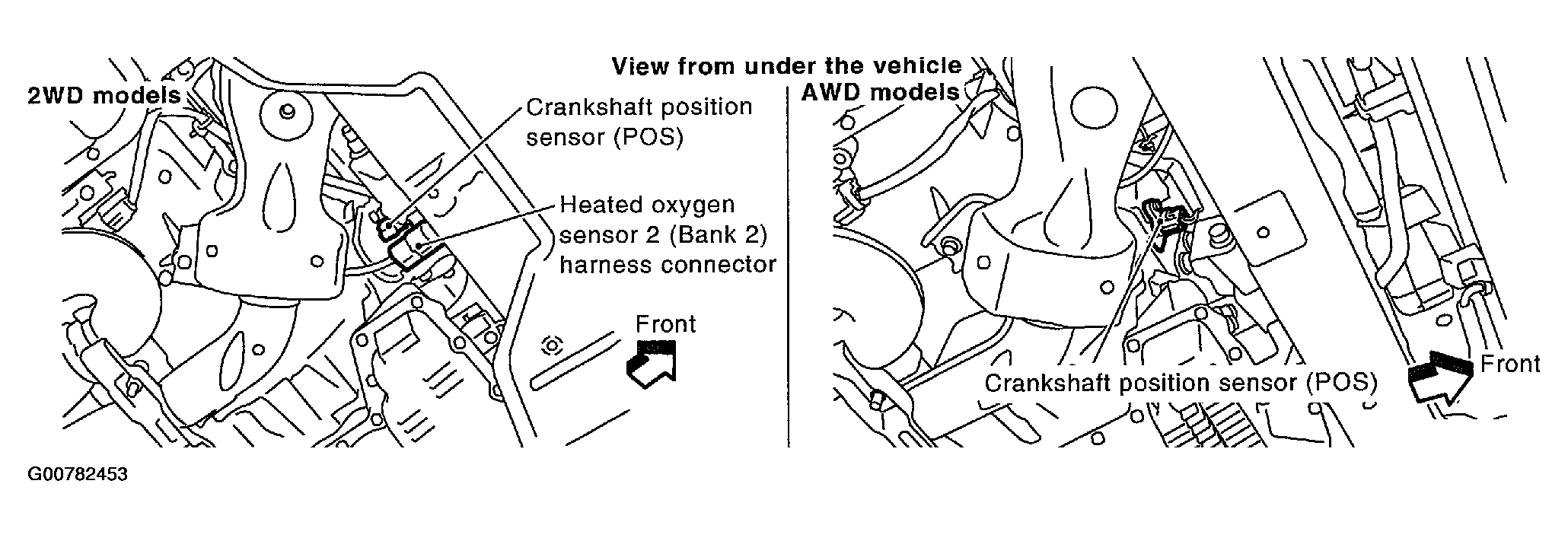

  Fig 2: Disconnecting Crankshaft Position Sensor Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor (POS) terminal 1 and ground with CONSULT-II or tester.
  Voltage: Battery voltage
4. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 4.
2. NG: GO TO 3.

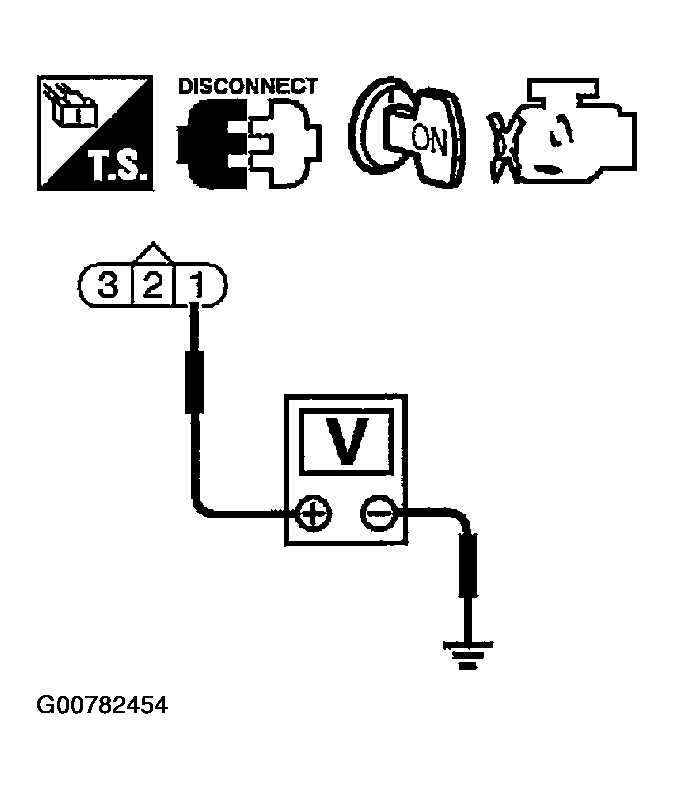

  Fig 3: Checking Voltage Between Crank Shaft Position Sensor Terminal 1 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E110, M7
- Harness connectors M82, F102
- Harness for open or short between crankshaft position sensor (POS) and ECM
- Harness for open or short between crankshaft position sensor (POS) and IPDM E/R
  1. Repair open circuit or short to ground or short to power in harness or connectors.
CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between CKP sensor (POS) terminal 3 and engine ground. Refer to WIRING DIAGRAM .
  Continuity should exist.
3. Also check harness for short to power.
OK or NG
1. OK: GO TO 6.
2. NG: GO TO 5.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F102, M82
- Harness for open or short between crankshaft position sensor (POS) and ground
  1. Repair open circuit or short to power in harness or connectors.
CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to WIRING DIAGRAM .
  Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 7.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 8.
2. NG: Replace crankshaft position sensor (POS).
CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.

OK or NG
1. OK: GO TO 9.
2. NG: Replace the signal plate.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. INSPECTION END
