Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. RETIGHTEN GROUND SCREWS

    Loosen and retighten engine ground screws.

    1. GO TO 2.

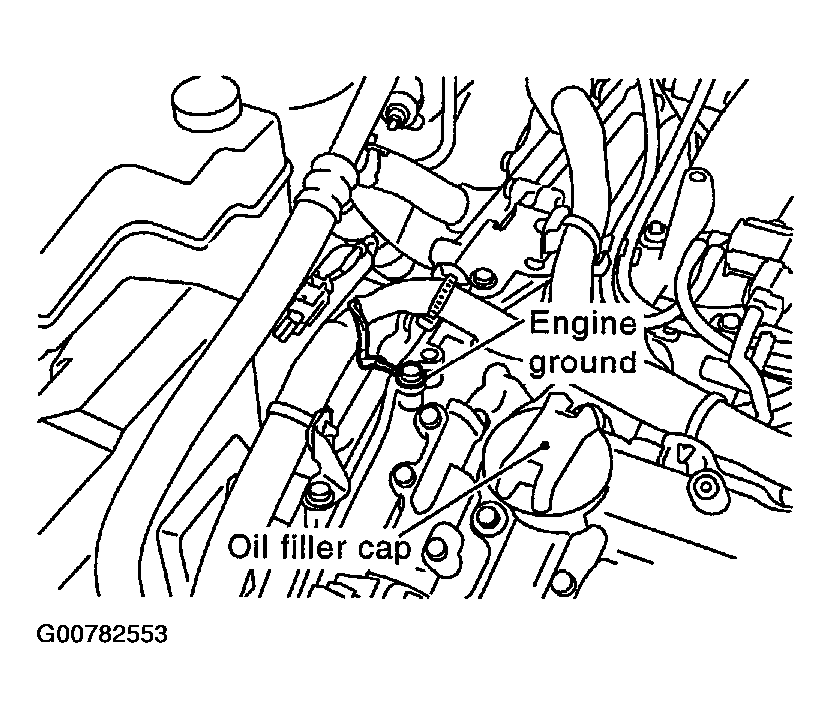

      Fig 1: Tightening Engine Ground Screws
      G00782553Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK CONNECTOR
    1. Disconnect EVAP control system pressure sensor harness connector.

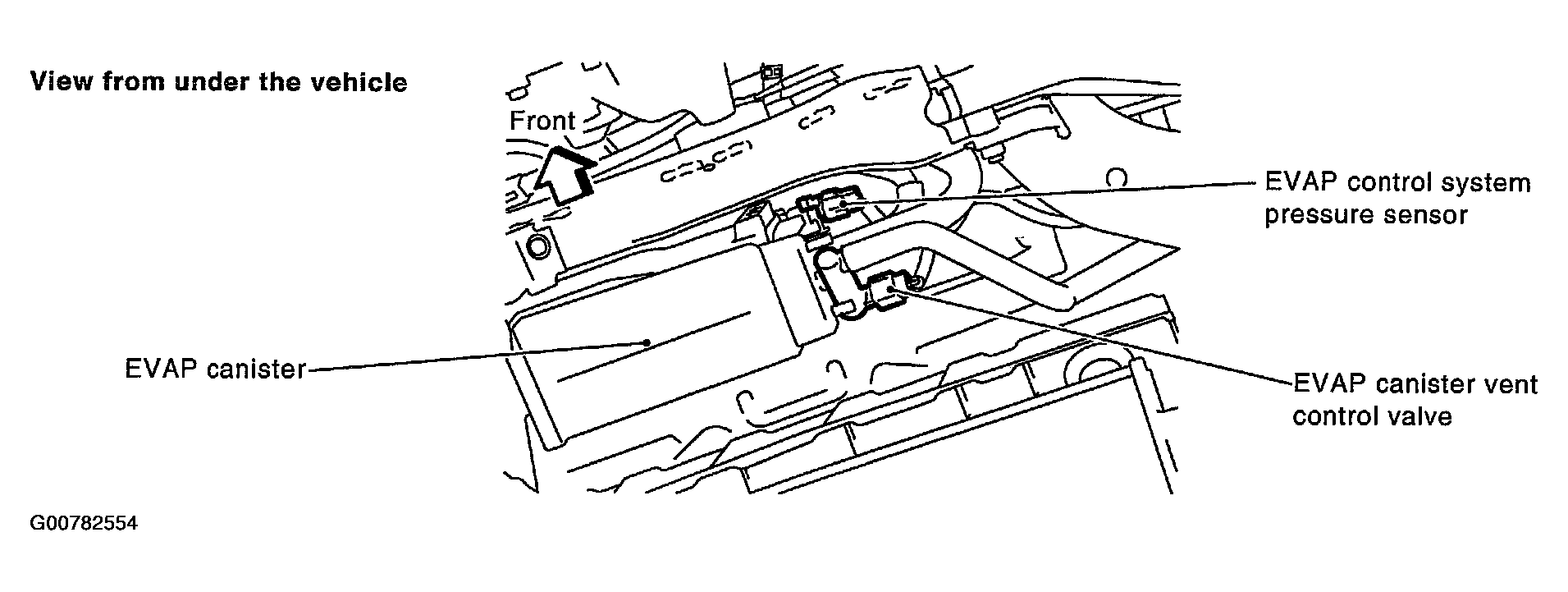

      Fig 2: Disconnecting EVAP Control System Pressure Sensor Harness Connector (P0452)
      G00782554Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check sensor harness connector for water.

    Water should not exist.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace harness connector.
  3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.

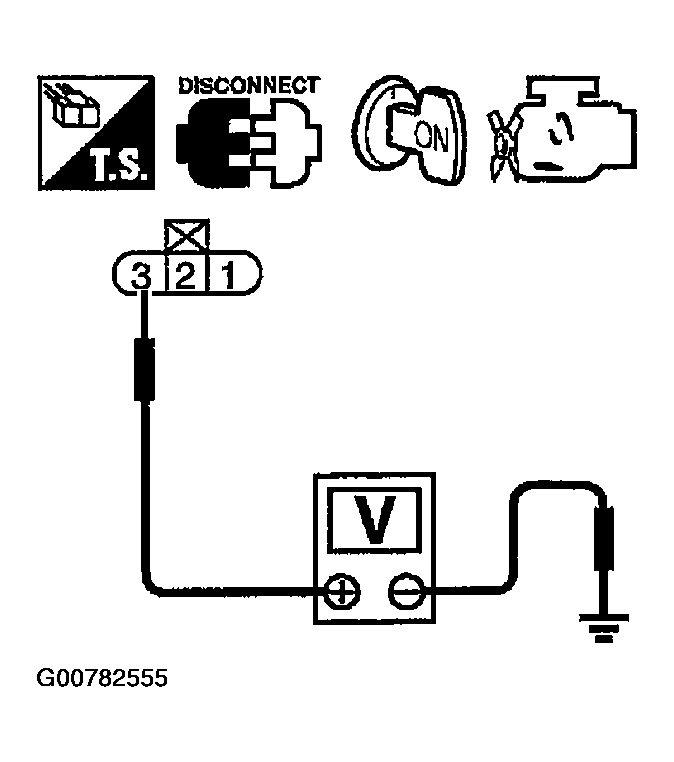

      Fig 3: Checking EVAP Control System Pressure Sensor Power Supply Circuit
      G00782555Courtesy of NISSAN MOTOR CO., U.S.A.

    Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B2, M9
    • Harness connectors M82, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch "OFF".
    2. Check harness continuity between EVAP control system pressure sensor terminal 1 and engine ground. Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

      OK or NG

      1. OK: GO TO  7.
      2. NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B2, M9
    • Harness connectors M82, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9.
    2. NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B2, M9
    • Harness connectors M82, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace EVAP control system pressure sensor.
  10. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
