Section 1110 (Engine Control System)
>>
DTC P0506: ISC System
>>
On Board Diagnosis Logic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On Board Diagnosis Logic
WARNING:
This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

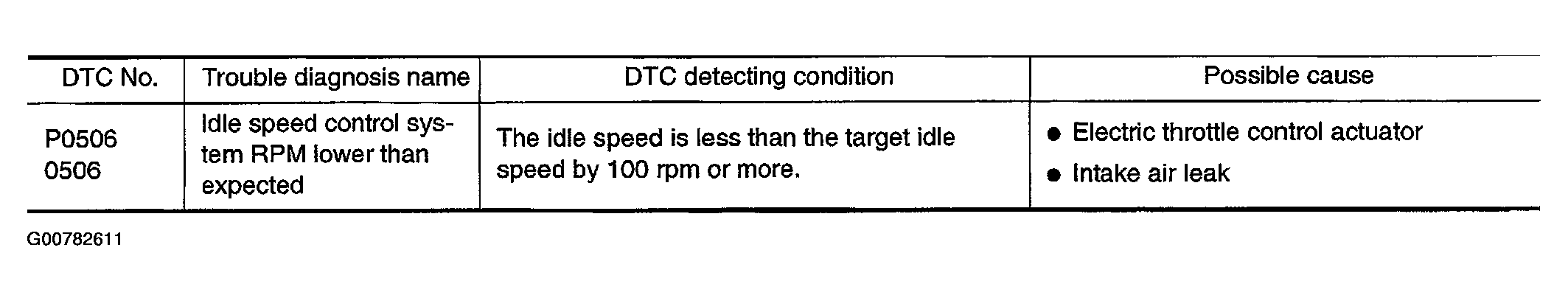

Fig 1: On Board Diagnosis Logic Chart (P0506)
Courtesy of NISSAN MOTOR CO., U.S.A.
