With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
  4. Repeat step 3 for 32 times.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

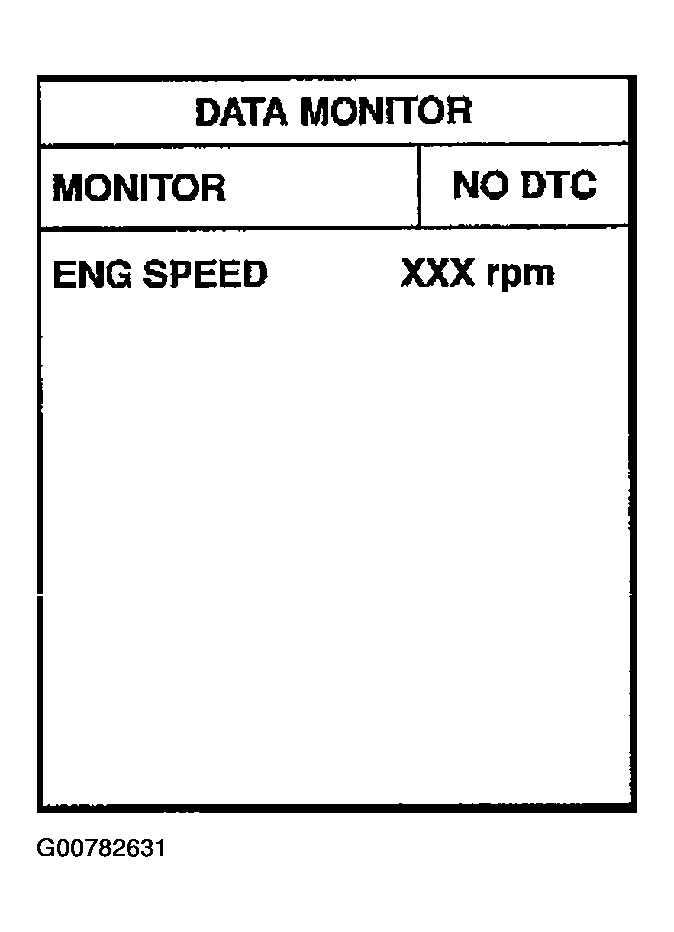

    Fig 1: DTC Confirmation Procedure With CONSULT-II (Malfunction C) (P0605)
    G00782631Courtesy of NISSAN MOTOR CO., U.S.A.
