With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 2 seconds.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

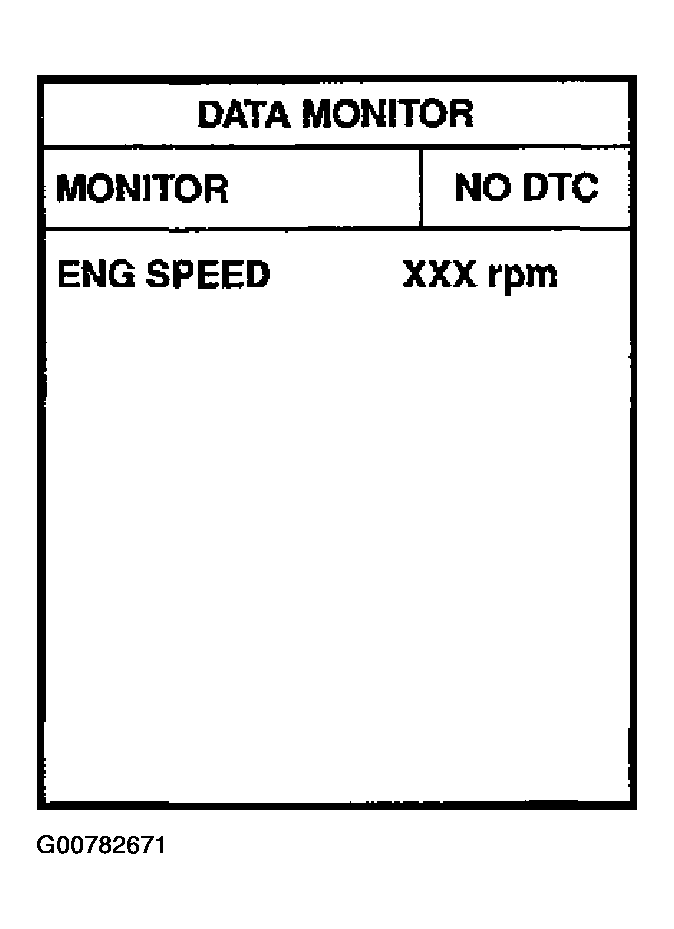

    Fig 1: DTC Confirmation Procedure With CONSULT-II (P1122)
    G00782671Courtesy of NISSAN MOTOR CO., U.S.A.
