Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

ASCD STEERING SWITCH

Disconnect combination switch (spiral cable).
Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

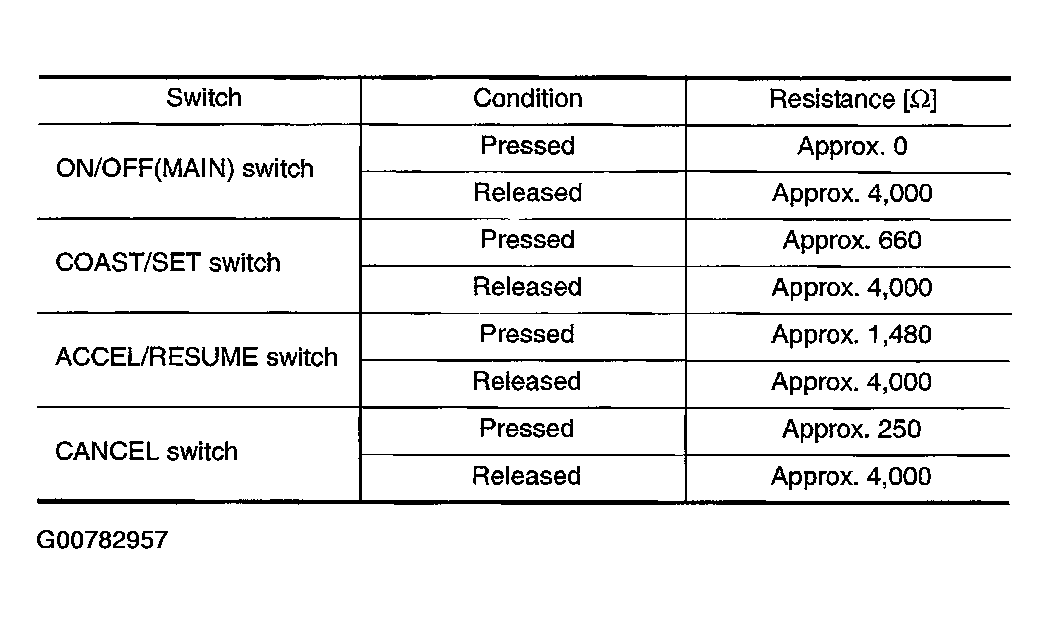

Fig 1: Resistance Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

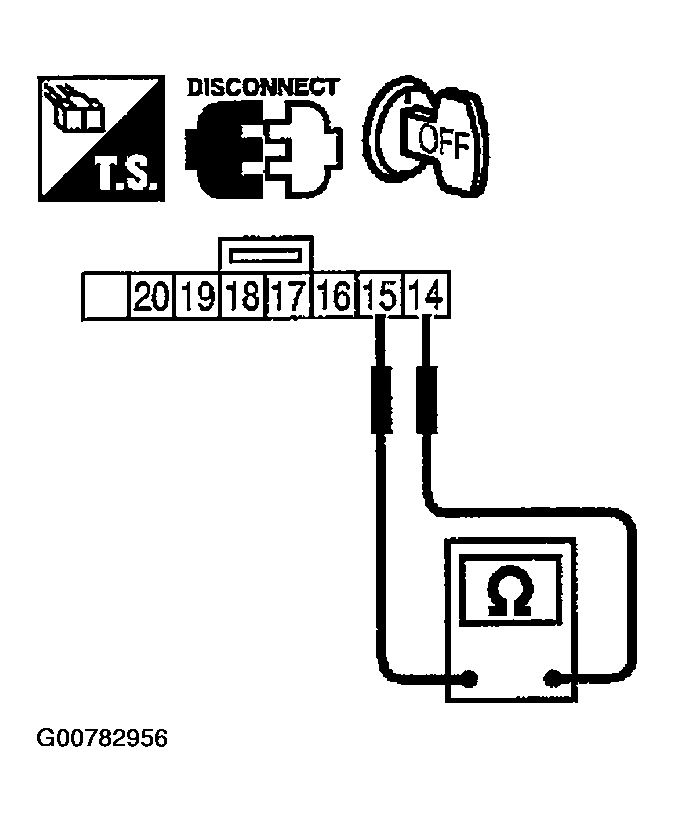

Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15

Courtesy of NISSAN MOTOR CO., U.S.A.
