WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.
Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

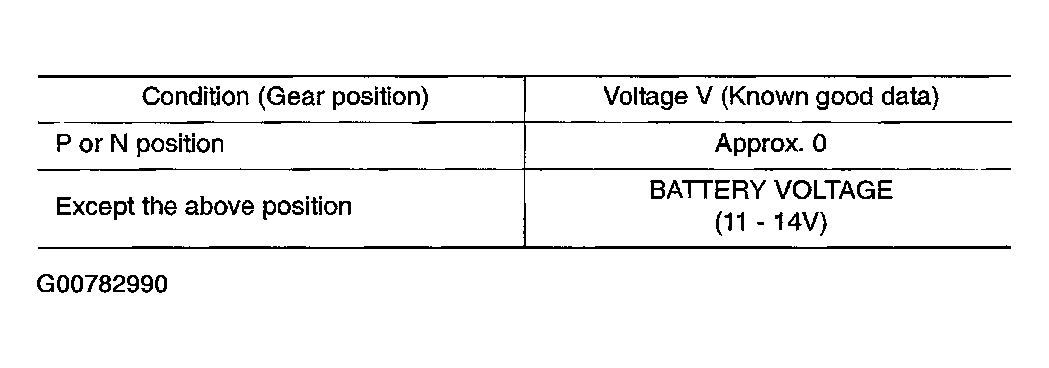

Fig 1: Voltage Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

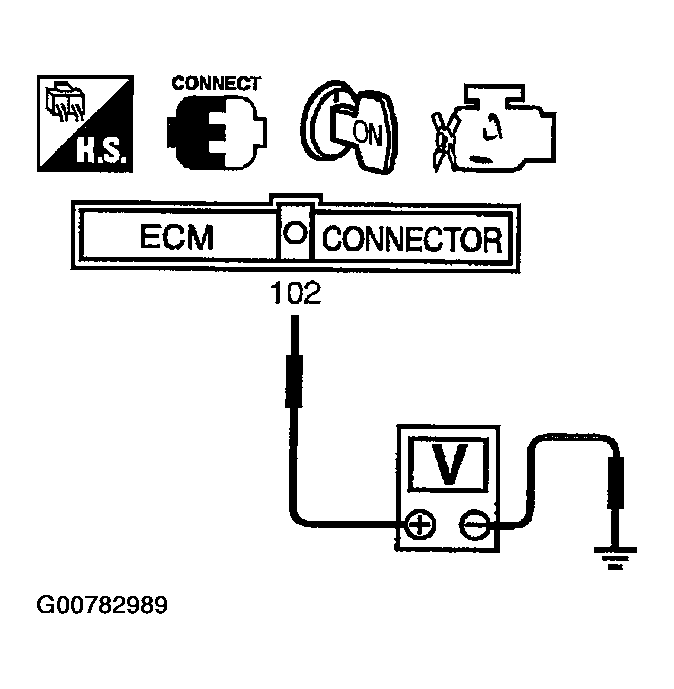

Fig 2: Checking Voltage Between ECM Terminal 102 (PNP Switch Signal)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, go to "DIAGNOSTIC PROCEDURE ".
