VIAS Control Solenoid Valve

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Reconnect harness connectors disconnected.
Turn ignition switch ON.
Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
Check air passage continuity and operation delay time under the following conditions.

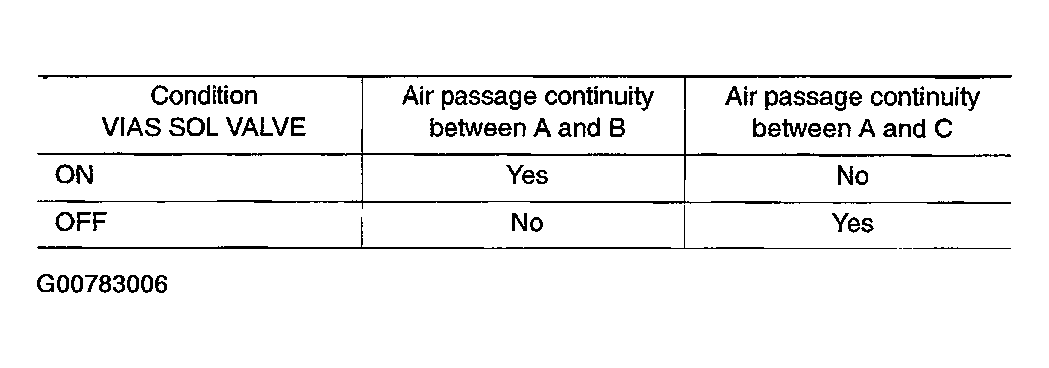

Fig 1: Continuity Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

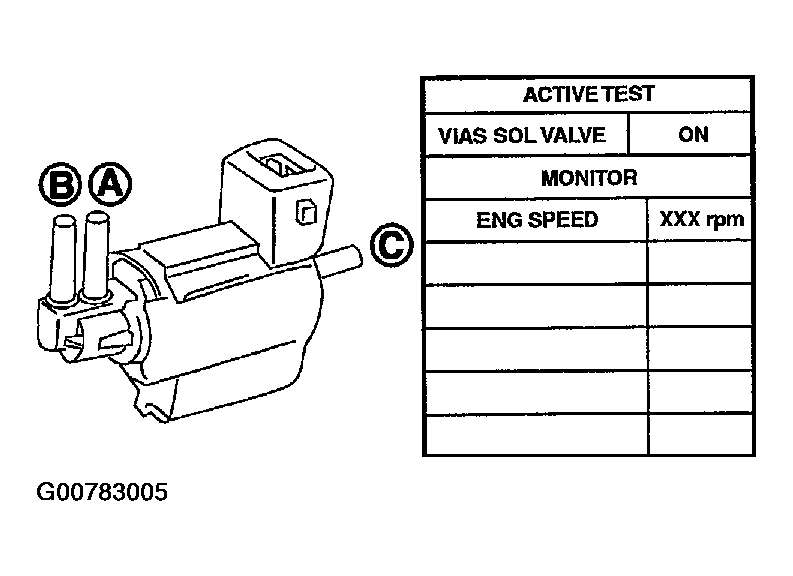

Fig 2: Displaying "VIAS SOL VALVE" In "ACTIVE TEST" Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
