Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.

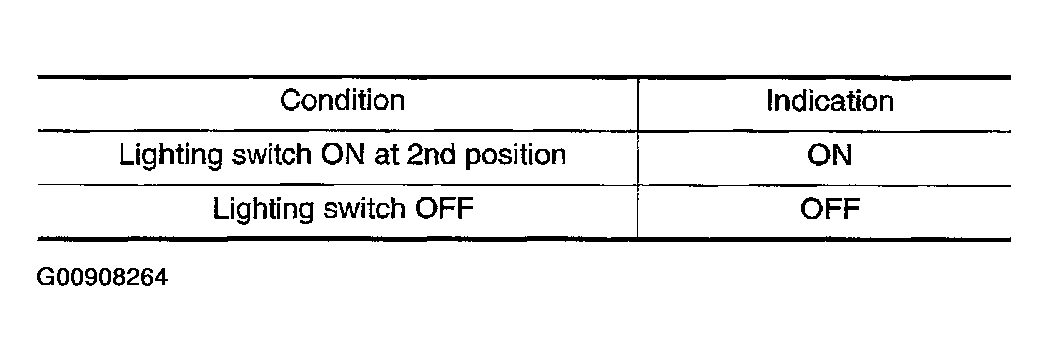

Fig 1: Condition Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG: GO TO 3.

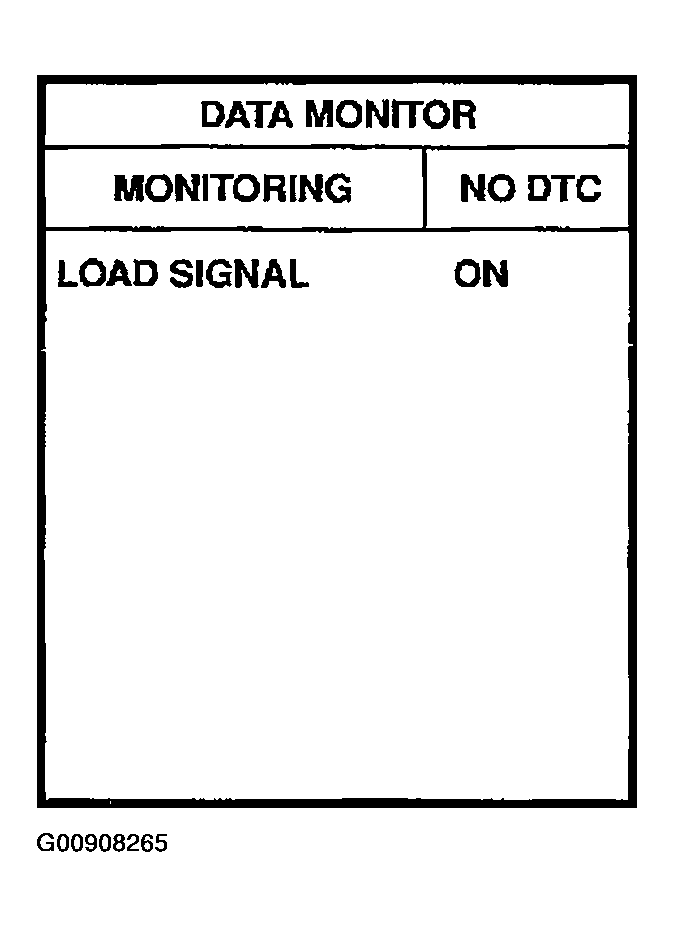

  Fig 2: Displaying "DATA MONITOR" Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check "LOAD SIGNAL" indication under the following conditions.

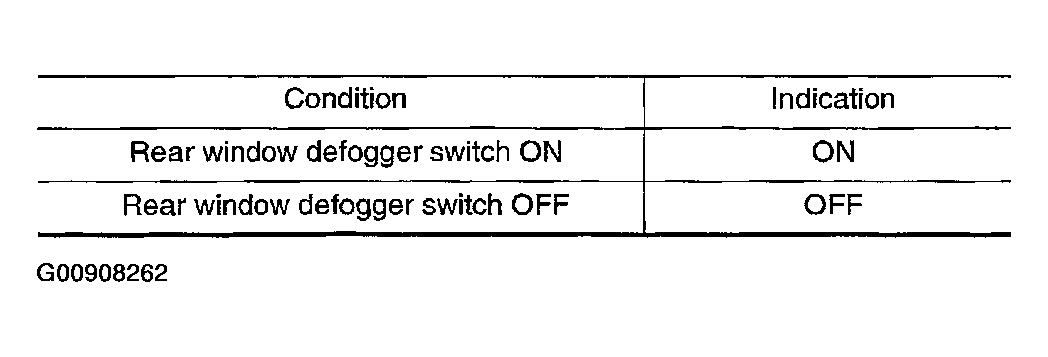

Fig 3: Condition Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: INSPECTION END
2. NG: GO TO 4.

  Fig 4: Displaying "DATA MONITOR" Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to REAR WINDOW DEFOGGER .
1. INSPECTION END
CHECK HEADLAMP SYSTEM
Refer to HEADLAMP - XENON TYPE - or "HEADLAMP -CONVENTIONAL TYPE- ".
1. INSPECTION END
