Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

INSPECTION START
Do you have CONSULT-II?

Yes or No
1. Yes: GO TO 2.
2. No: GO TO 3.
CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select "ENGINE MOUNTING" in "ACTIVE TEST" mode with CONSULT-II and touch "ON/OFF" on the CONSULT-II screen.
3. Check that the motor operating sound is heard from front electronic controlled engine mount for about 0.5 seconds according to the switching condition of "ENGINE MOUNTING".
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 4.

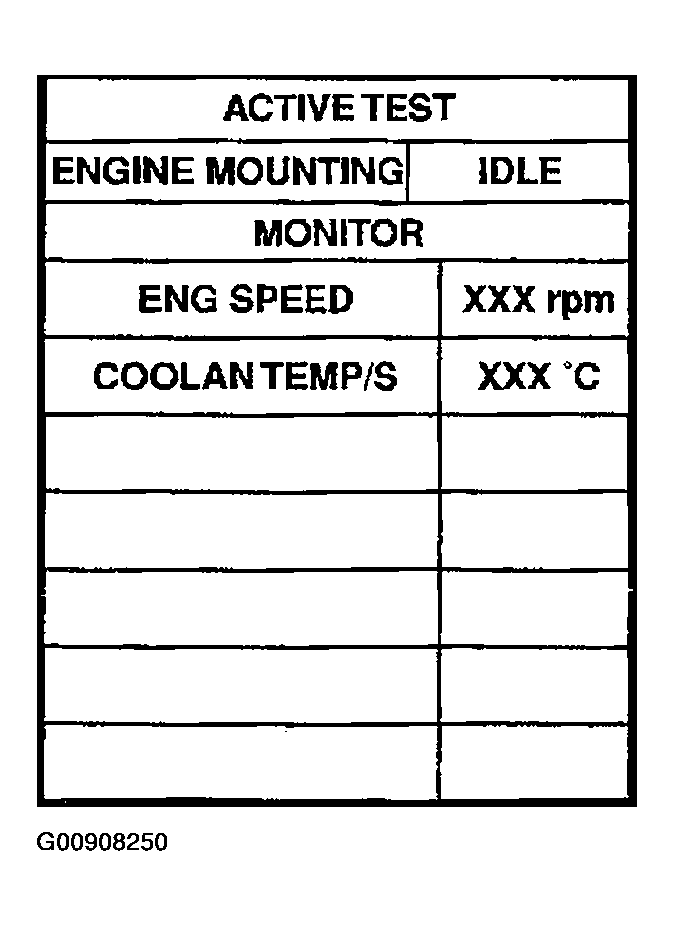

  Fig 1: Displaying "ACTIVE TEST" Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OVERALL FUNCTION
Without CONSULT-II
1. Make sure that gear position is "P" or "N".
2. Start engine and let it idle.
3. Change the engine speed from idle to more than 1, 000 RPM and then return to idle (with vehicle stopped).
4. Check that the motor operating sound is heard from front electronic controlled engine mount for about 0.5 seconds when changing engine speed.
  It is better to hear the operating sound around the left side front wheel house.
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 4.
CHECK ELECTRONIC CONTROLLED ENGINE MOUNT POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front or rear electronic controlled engine mount harness connector.

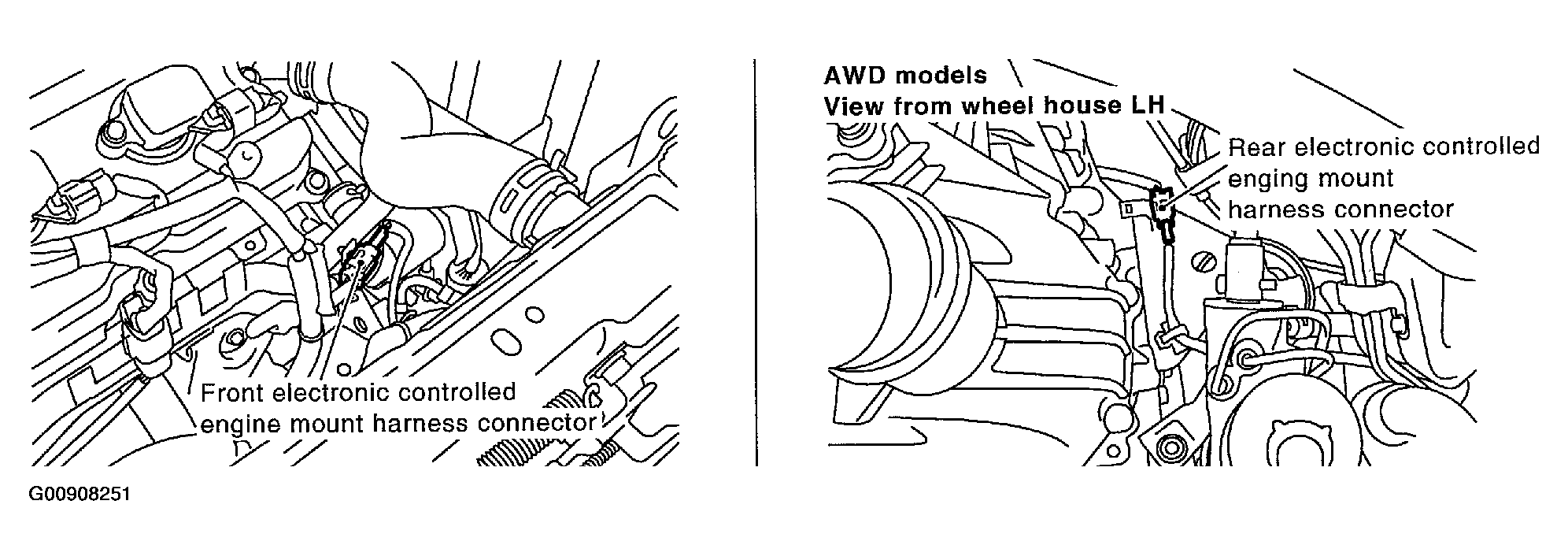

  Fig 2: Disconnecting Front Or Rear Electronic Controlled Engine Mount Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electronic controlled engine mount terminal 3 and ground with CONSULT-II or tester.
  Voltage: Battery voltage
OK or NG
1. OK: GO TO 6.
2. NG: GO TO 5.

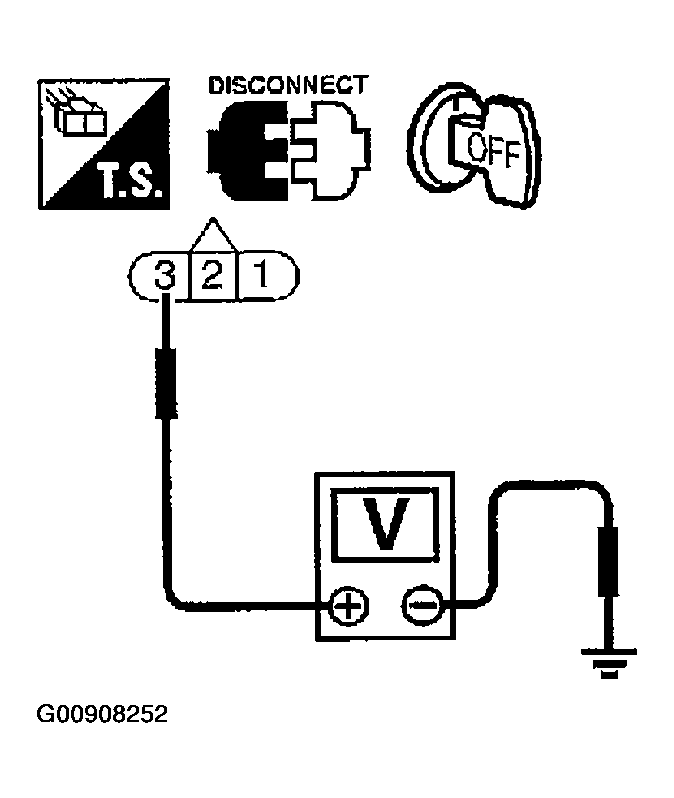

  Fig 3: Checking Voltage Between Electronic Controlled Engine Mount Terminal 3 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M82, F102
- 10A fuse
- Harness for open and short between electronic controlled engine mount and battery
  1. Repair harness or connectors.
CHECK ELECTRONIC CONTROLLED ENGINE MOUNT OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals and electronic engine mount terminals as follows. Refer to WIRING DIAGRAM .

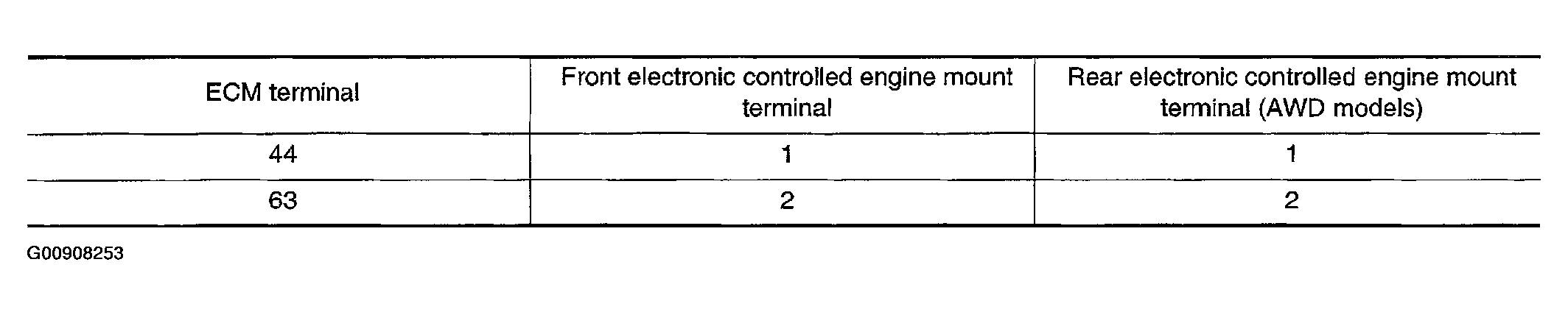

  Fig 4: ECM Terminal Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 7.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK ELECTRONIC CONTROLLED ENGINE MOUNT
Visually check front and rear electronic controlled engine mount.

OK or NG
1. OK: GO TO 8.
2. NG: Replace front or rear electronic controlled engine mount.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
1. INSPECTION END
