ECM Inspection Table

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

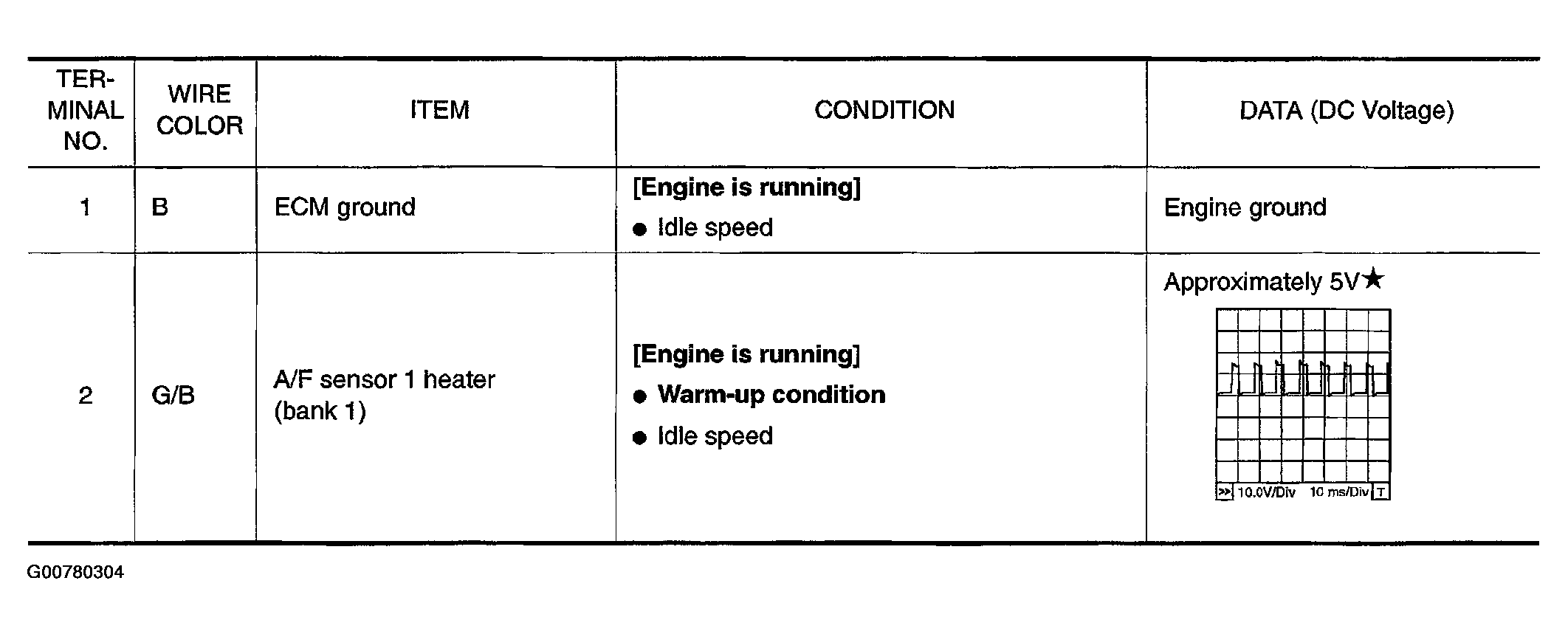

Fig 1: ECM Inspection Chart (1 Of 10)

G00780304

Courtesy of NISSAN MOTOR CO., U.S.A.

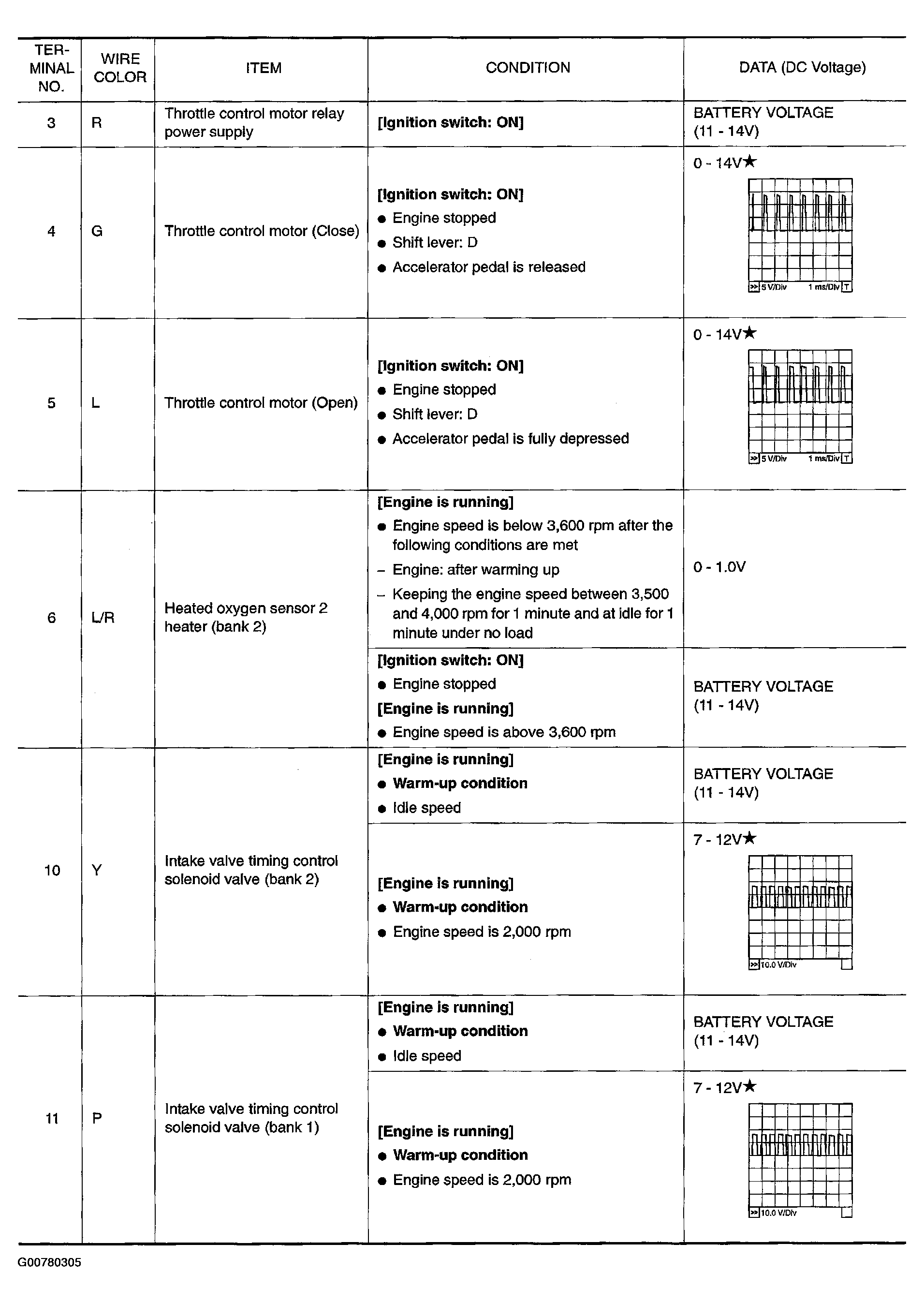

Fig 2: ECM Inspection Chart (2 Of 10)

G00780305

Courtesy of NISSAN MOTOR CO., U.S.A.

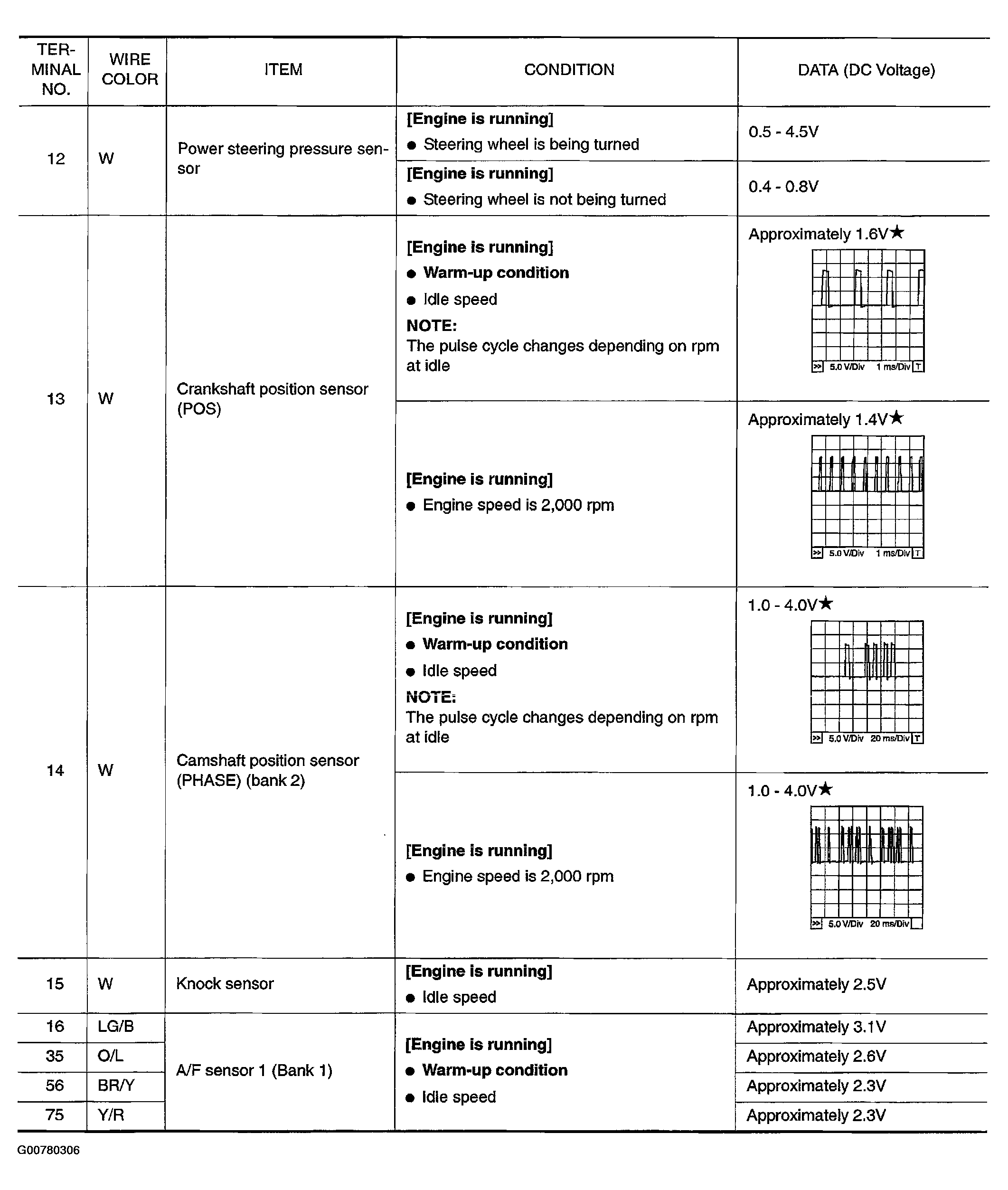

Fig 3: ECM Inspection Chart (3 Of 10)

G00780306

Courtesy of NISSAN MOTOR CO., U.S.A.

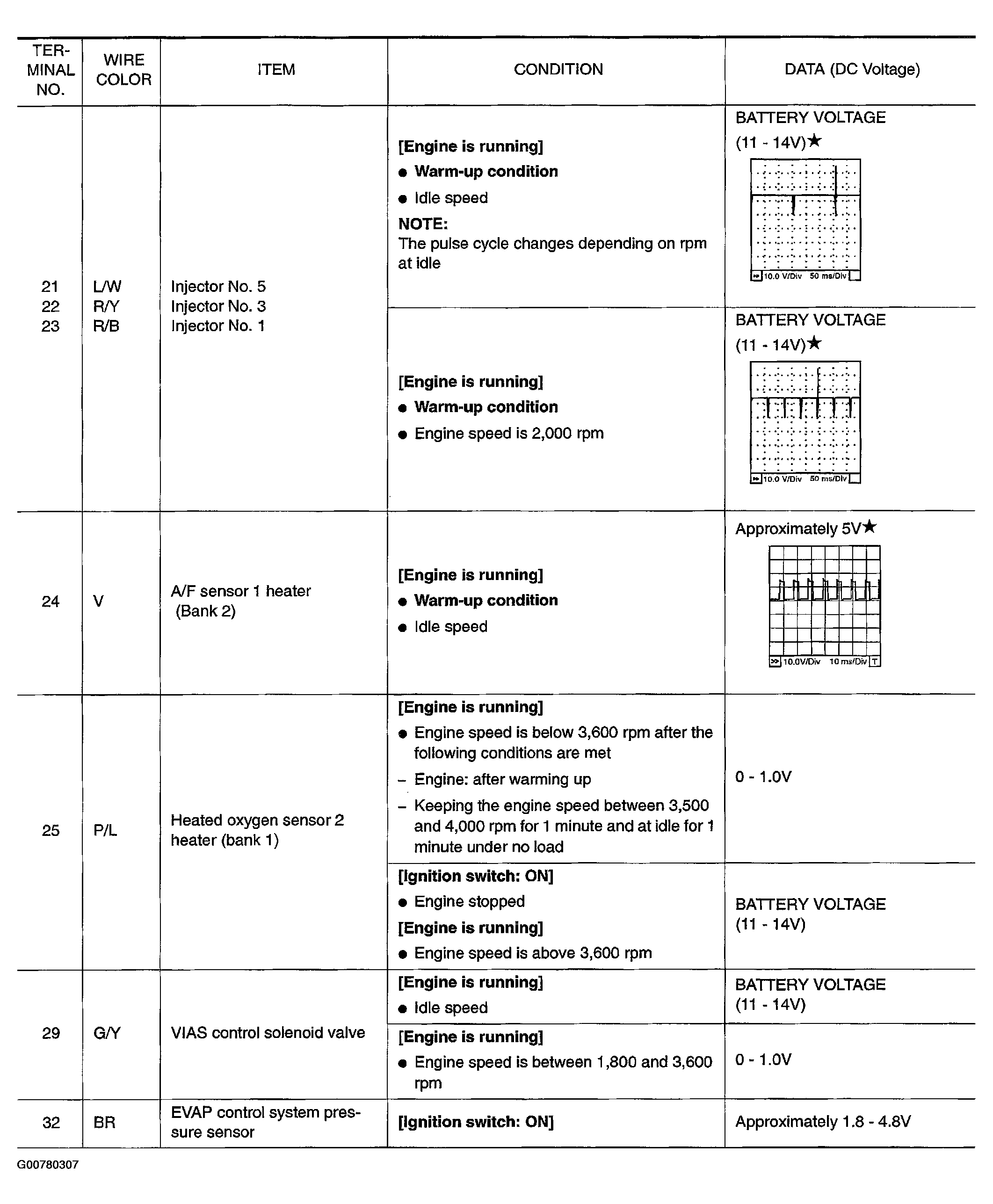

Fig 4: ECM Inspection Chart (4 Of 10)

G00780307

Courtesy of NISSAN MOTOR CO., U.S.A.

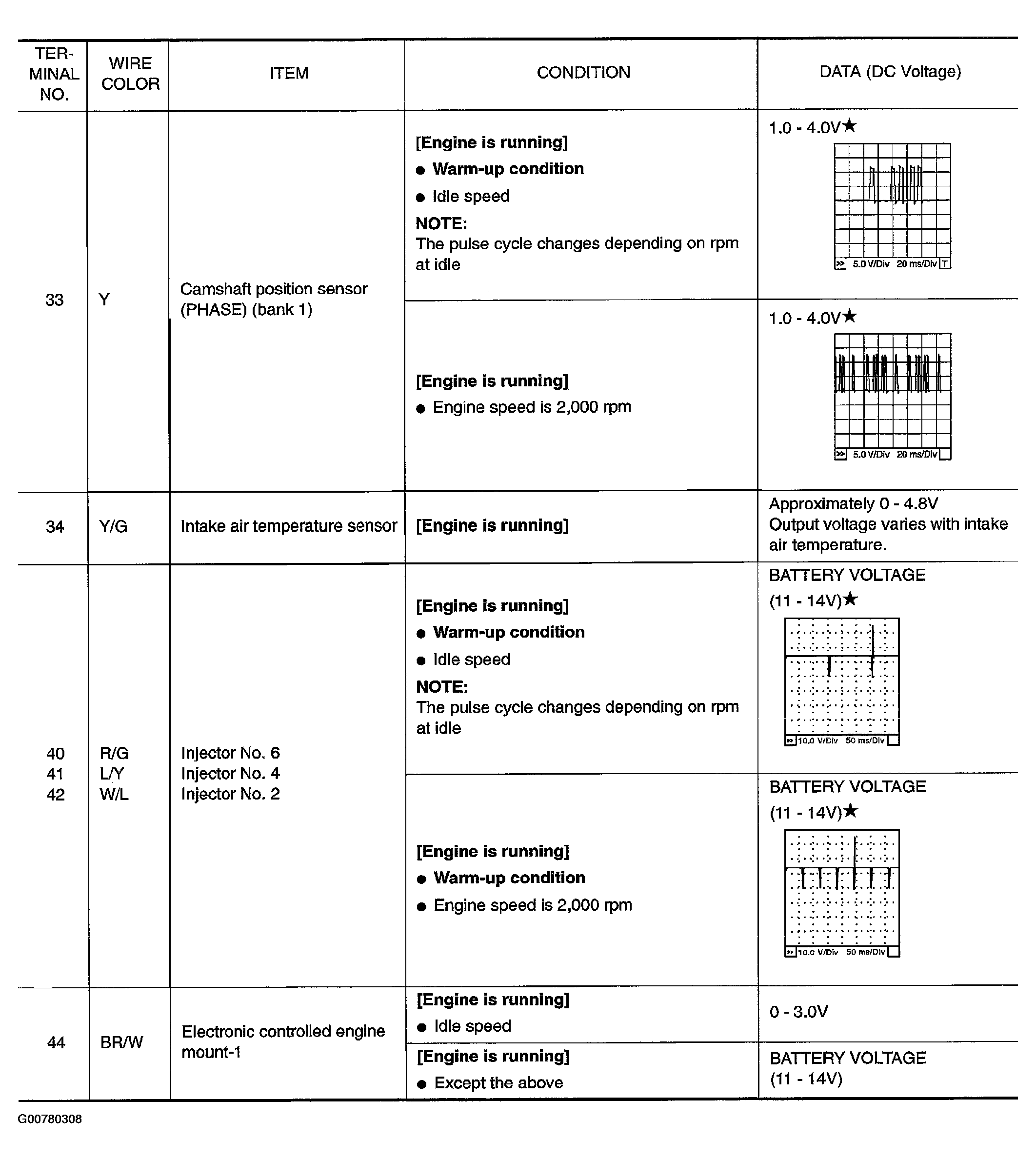

Fig 5: ECM Inspection Chart (5 Of 10)

G00780308

Courtesy of NISSAN MOTOR CO., U.S.A.

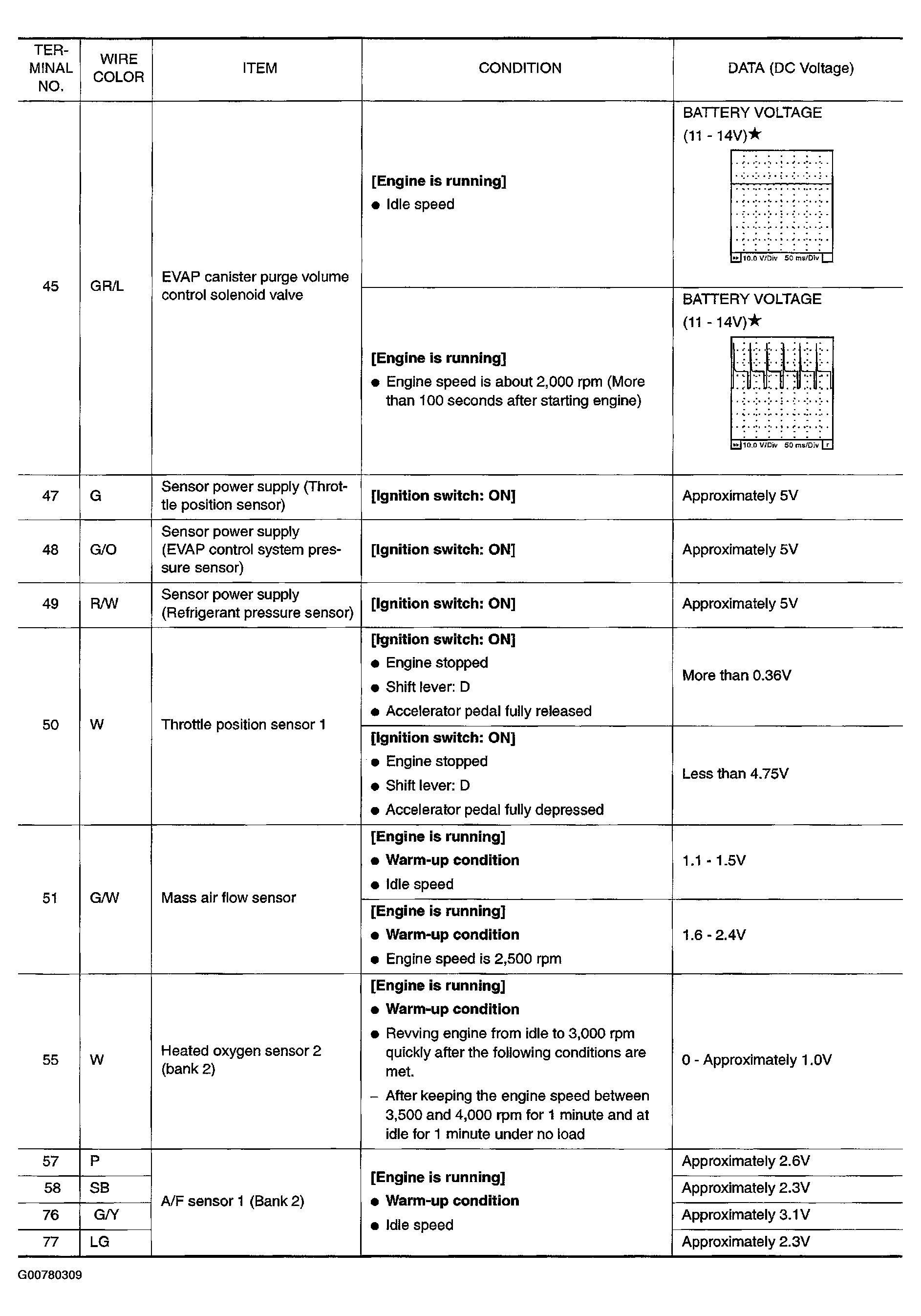

Fig 6: ECM Inspection Chart (6 Of 10)

G00780309

Courtesy of NISSAN MOTOR CO., U.S.A.

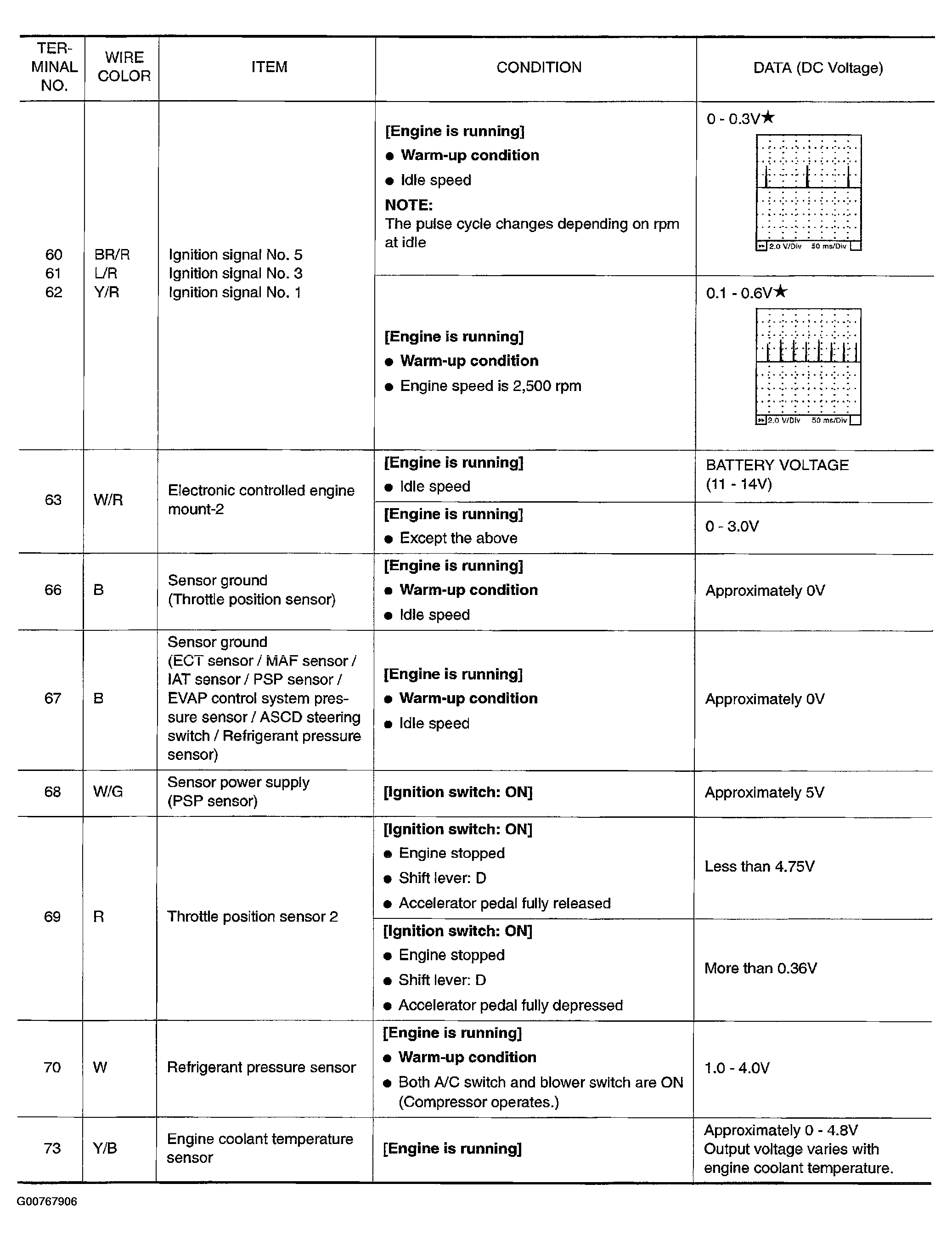

Fig 7: ECM Inspection Chart (7 Of 10)

G00767906

Courtesy of NISSAN MOTOR CO., U.S.A.

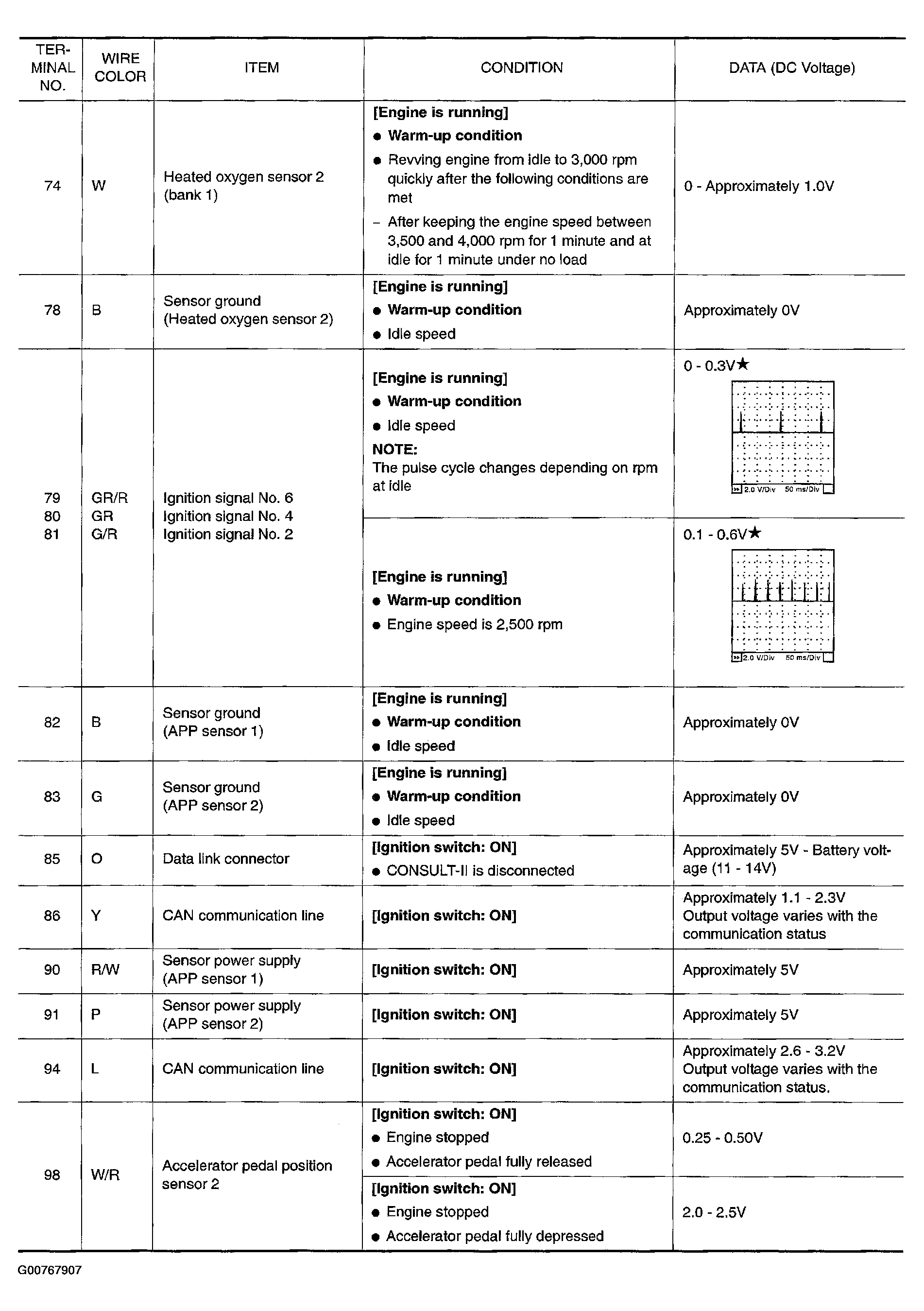

Fig 8: ECM Inspection Chart (8 Of 10)

G00767907

Courtesy of NISSAN MOTOR CO., U.S.A.

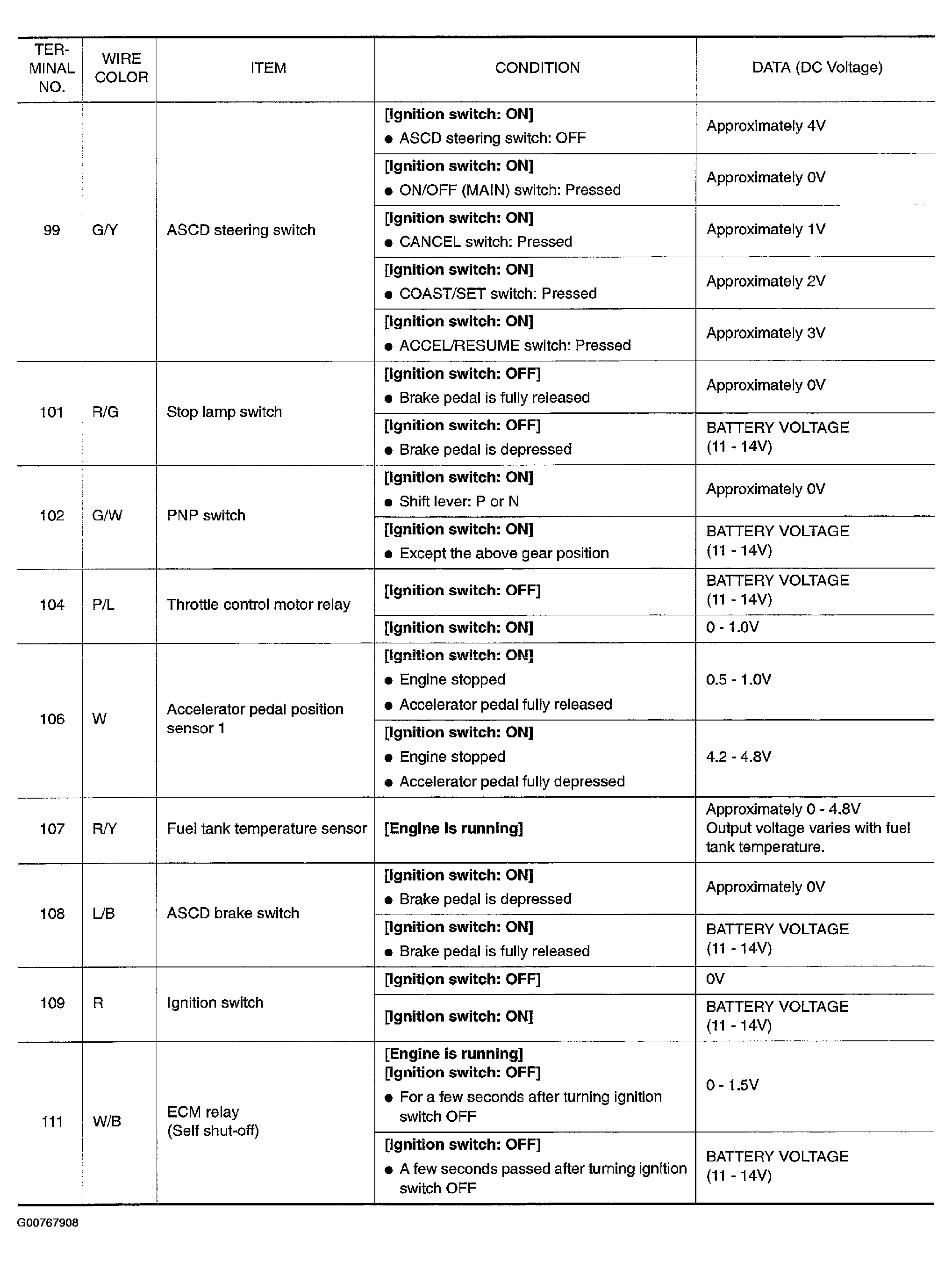

Fig 9: ECM Inspection Chart (9 Of 10)

G00767908

Courtesy of NISSAN MOTOR CO., U.S.A.

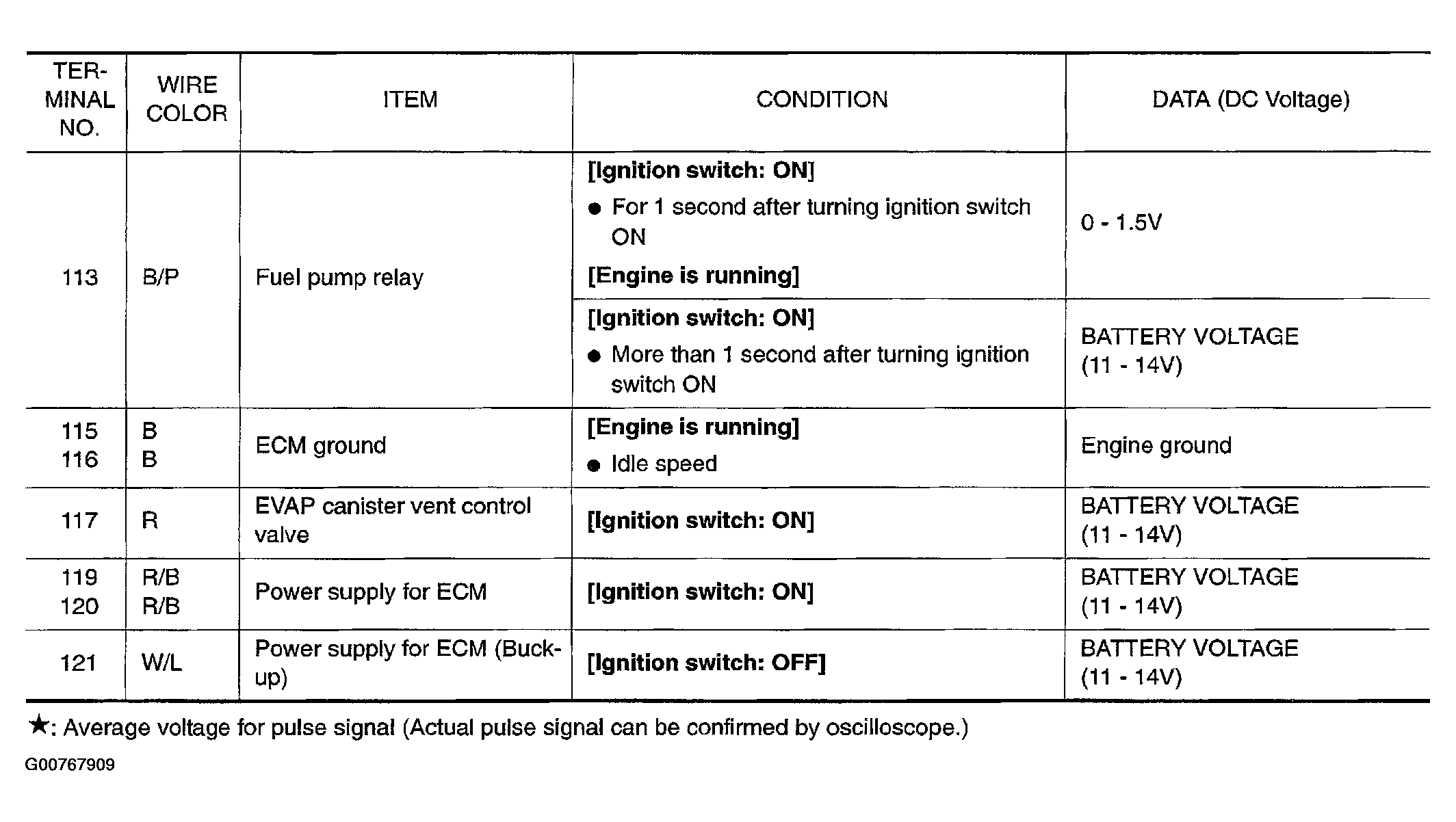

Fig 10: ECM Inspection Chart (10 Of 10)

G00767909

Courtesy of NISSAN MOTOR CO., U.S.A.
