ECM Terminals and Reference Value: Preparation

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

ECM is located behind the glove box. For this inspection, remove glove box.
Remove ECM harness connector.

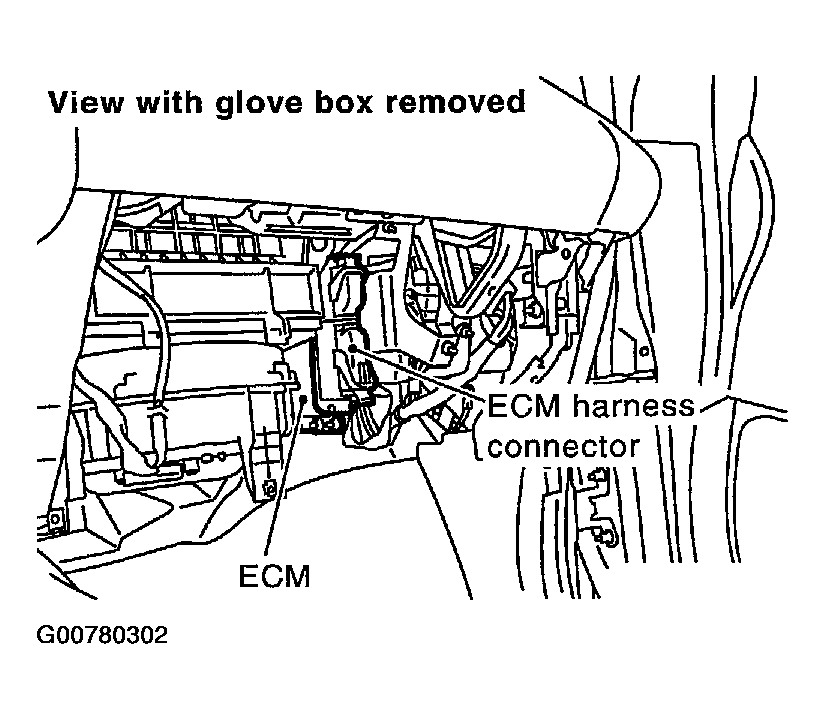

Fig 1: Identifying ECM Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

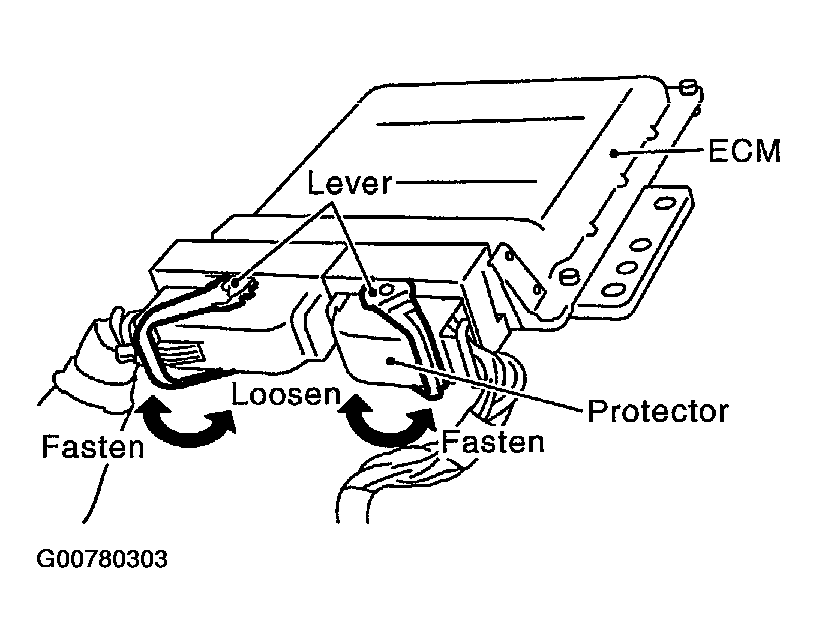

When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown at right.
Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.
Data is for comparison and may not be exact.

Fig 2: Connecting Break-Out Box And Y-Cable Adapter Between ECM And ECM Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
