Without CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

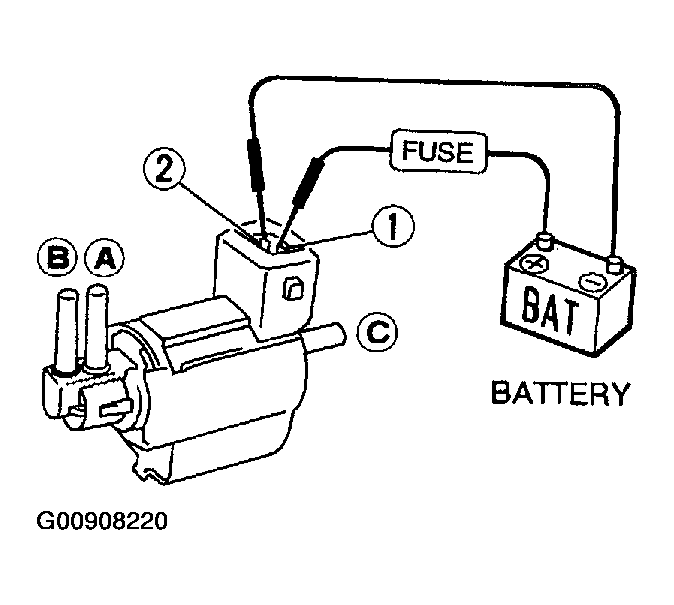

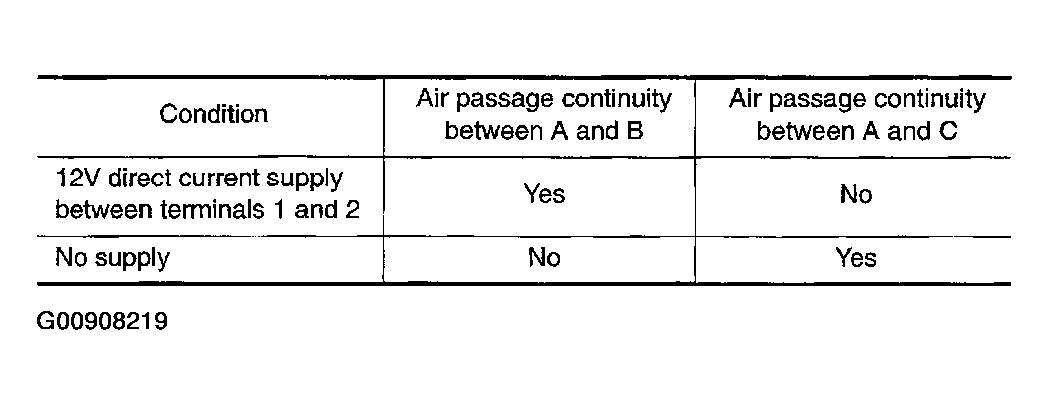

Check air passage continuity and operation delay time under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
Operation takes less than 1 second.
Courtesy of NISSAN MOTOR CO., U.S.A.
