Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument driver lower panel. Refer to "INSTRUMENT DRIVER LOWER PANEL ".
  2. Remove fuse block (J/B).
  3. Disconnect AWD control unit connector.
  4. Remove AWD control unit.

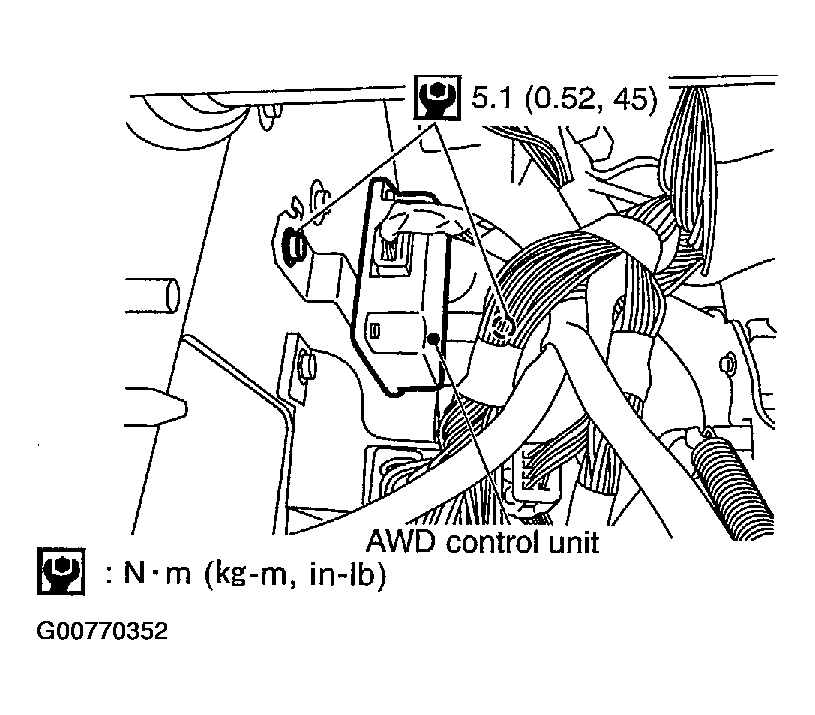

    Fig 1: Removing/Installing AWD Control Unit
    G00770352Courtesy of NISSAN MOTOR CO., U.S.A.
