AWD Lock Indicator Lamp
WARNING:
This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
The following is the indications of indicator lamp.

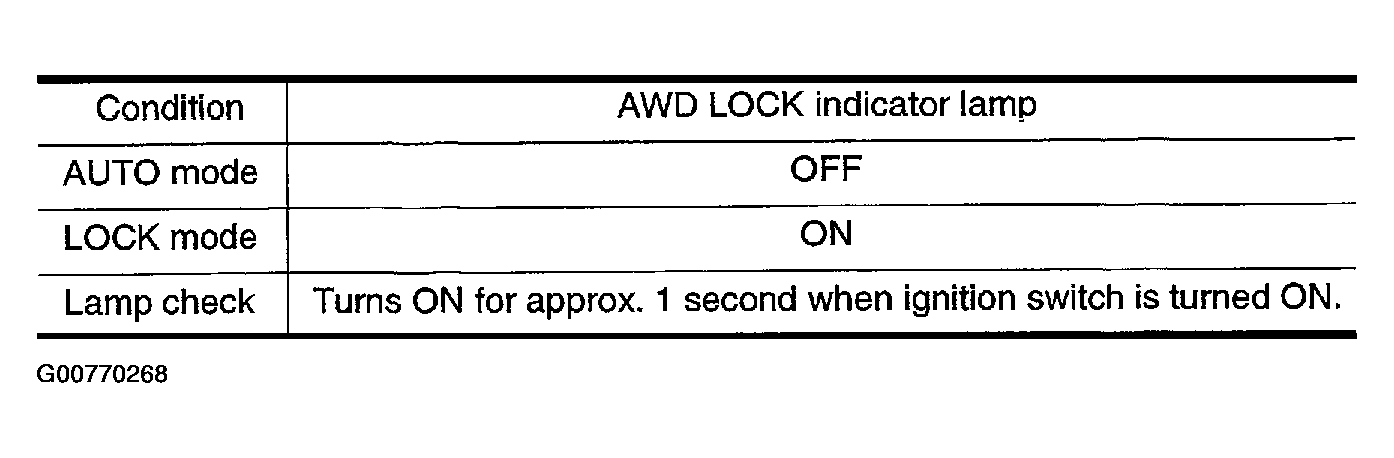

Fig 1: Indications Of Indicator Lamp Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

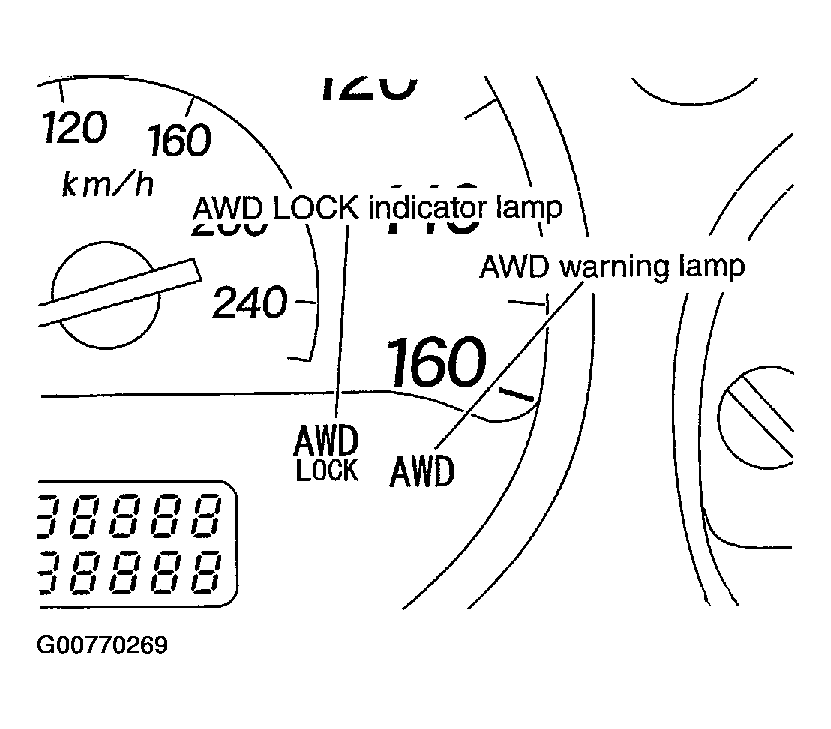

Fig 2: Identifying Indicator Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
