Total Preload Torque

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Measure pinion bearing preload torque (P1). Refer to "PINION BEARING PRELOAD TORQUE ".
Pinion bearing preload torque (P1)

: 0.10 - 0.39 N.m (0.01 - 0.04 kg-m, 1 - 3 in-lb)
Install the pinion sleeve shims and pinion sleeve assembly.
Rotate the companion flange at least 20 times to check for smooth operation of the bearing.
Using a preload gauge, measure the Total preload torque.
Tool number: ST3127S000 (J25765-A)

Total preload torque

When all oil seals are installed

: P1 + 0.16 - 0.22 N.m (0.016 - 0.023 kg-m, 1.4 - 1.9 in-lb)

Without transfer case oil seal and adapter case oil seal

: P1 + 0.06 - 0.12 N.m (0.006 - 0.013 kg-m, 0.6 - 1.1 in-lb)

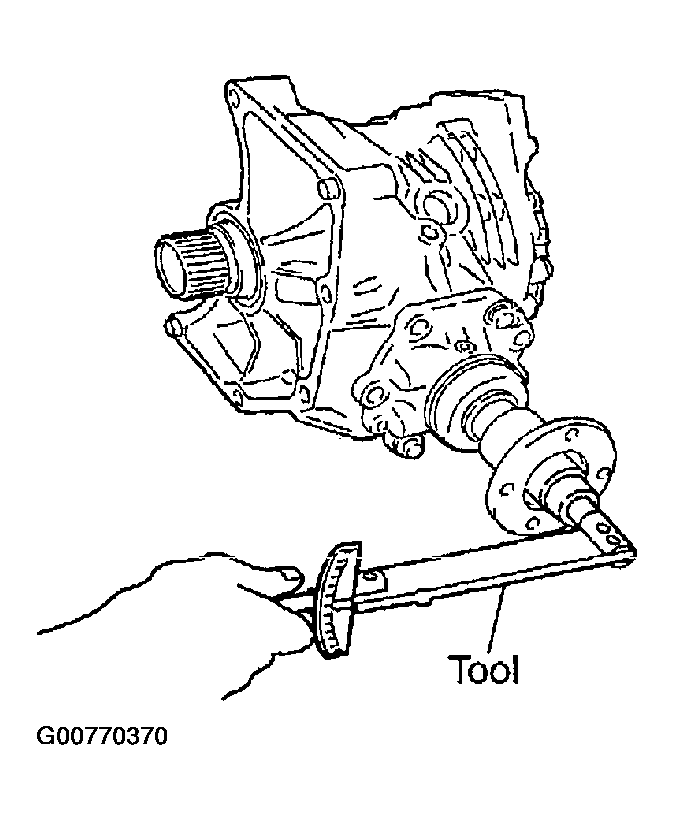

Fig 1: Measuring Total Preload Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
- If measured value is out of the specification, disassemble it to check and adjust each part. If measuring the Total preload torque after the disassembly, measure it with the transfer case oil seals and gear ring oil seals removed, then install the oil seals.
