Pinion Sleeve Assembly

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove pinion sleeve mounting bolts.

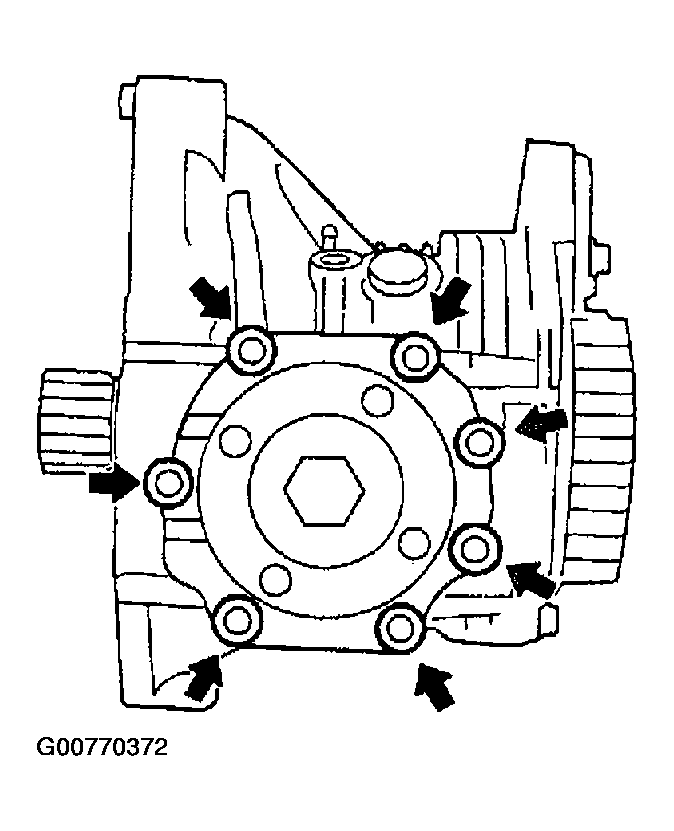

Fig 1: Identifying Pinion Sleeve Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a plastic hammer, tap companion flange to remove pinion sleeve assembly.

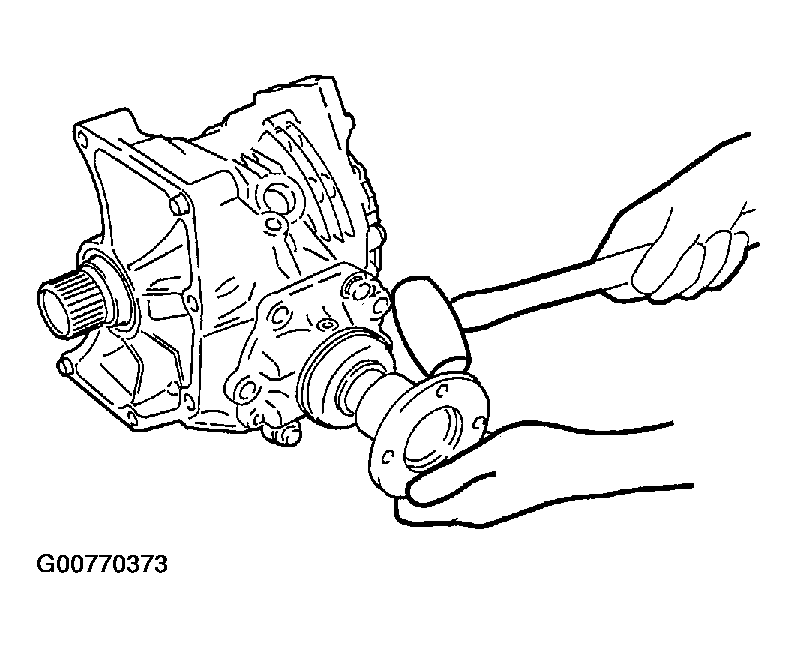

Fig 2: Removing Pinion Sleeve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the pinion sleeve shim.
Remove the pinion lock nut.
Using a drift, remove drive pinion assembly from pinion sleeve with a press.
Tool number: ST33220000 (J25804-01)
Remove companion flange.
Remove the O-ring from pinion sleeve.

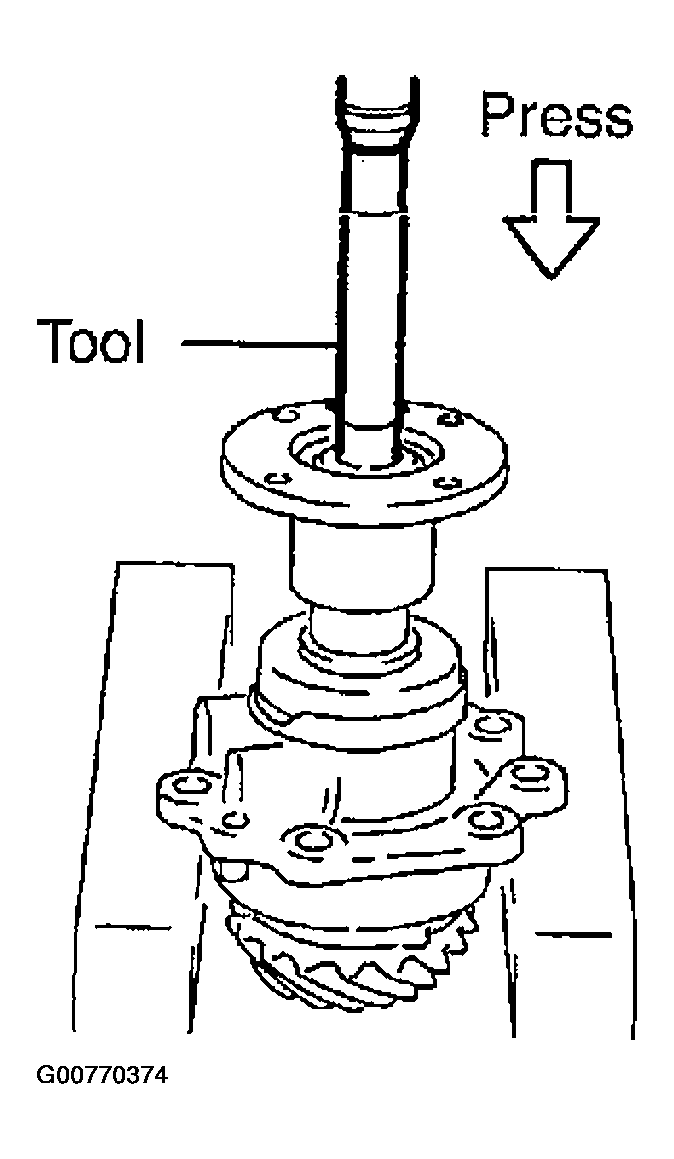

Fig 3: Removing Drive Pinion Assembly From Pinion Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a flat-bladed screwdriver, remove the pinion sleeve oil seal.
CAUTION: Be careful not to damage the pinion sleeve.
Remove the pinion rear bearing inner race.

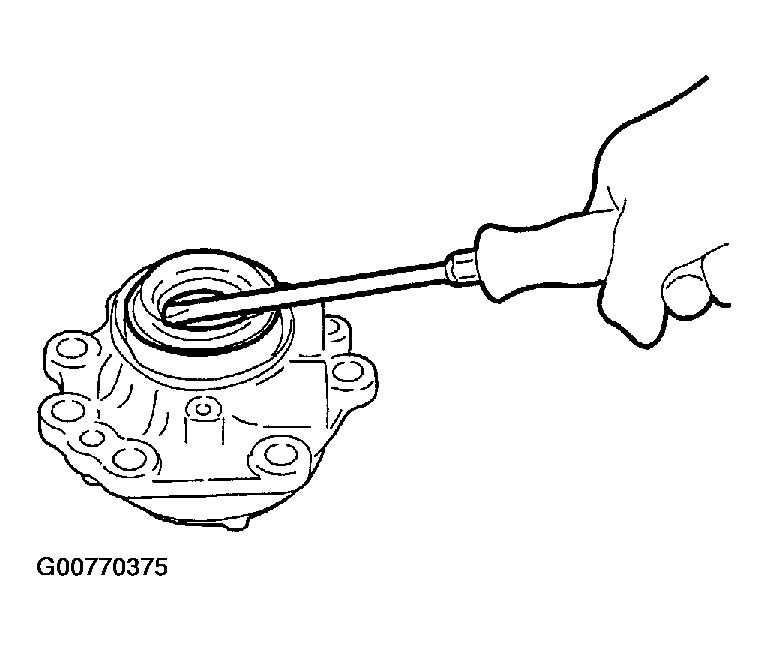

Fig 4: Removing Pinion Sleeve Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a puller, remove the pinion rear bearing outer race.
Tool number: KV381054S0 (J34286)

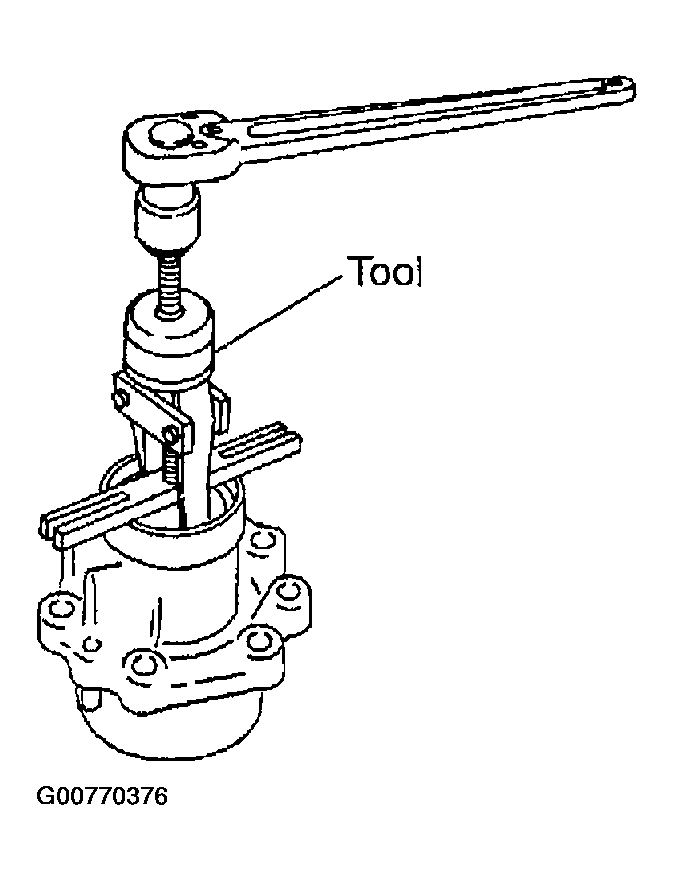

Fig 5: Removing Pinion Rear Bearing Outer Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a puller, remove the pinion front bearing outer race.
Tool number: KV381054S0 (J34286)
Remove dust cover.

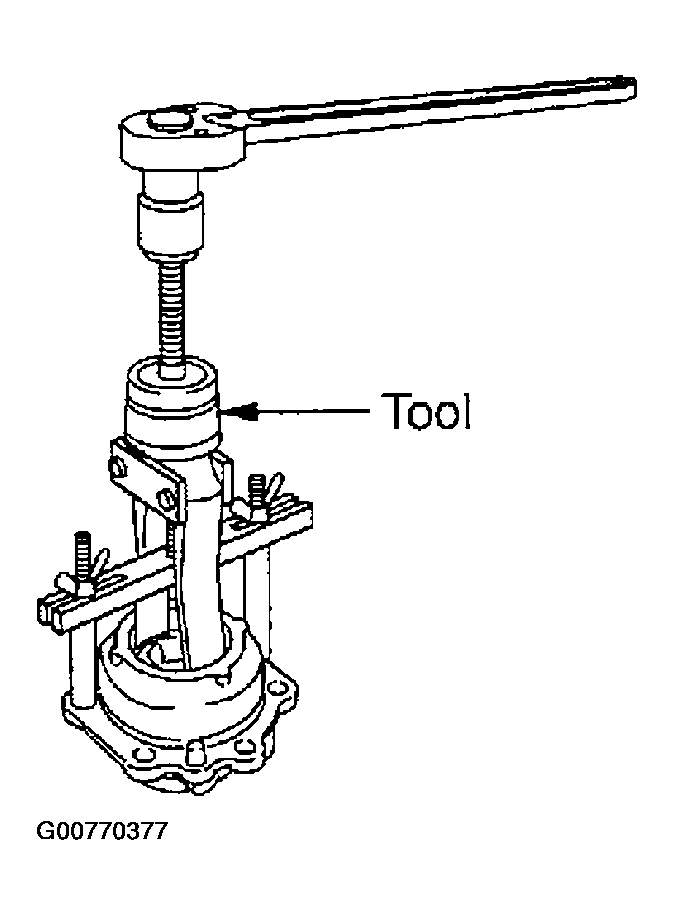

Fig 6: Removing Pinion Front Bearing Outer Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the collapsible spacer from the drive pinion.
Using a replacer, press the pinion front bearing inner race out of the drive pinion.
Tool number: ST30031000 (J22912-01)

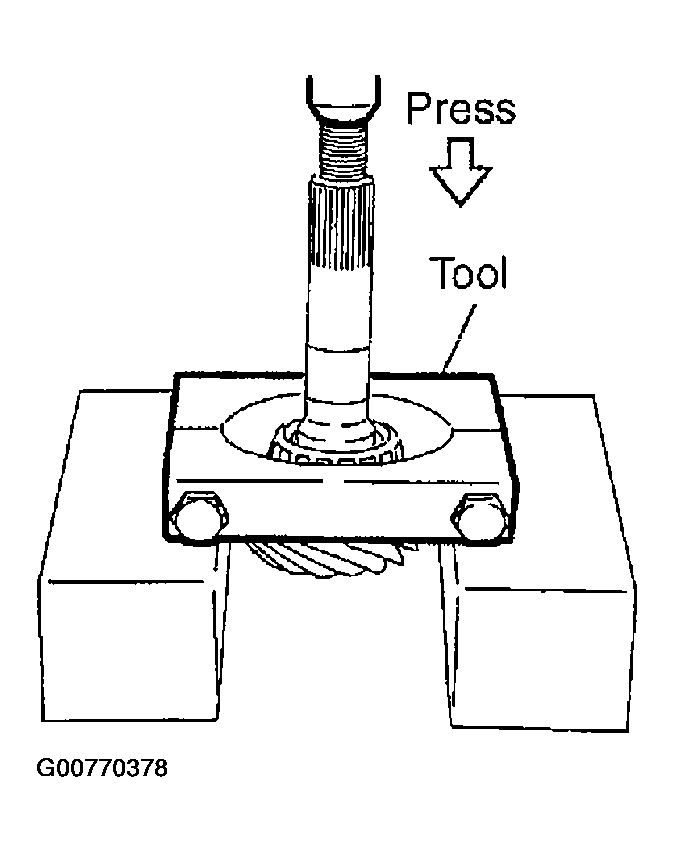

Fig 7: Pressing The Pinion Front Bearing Inner Race Out Of The Drive Pinion
Courtesy of NISSAN MOTOR CO., U.S.A.
