Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

When installing the transfer to the transaxle, install the mounting bolts following the standard below.

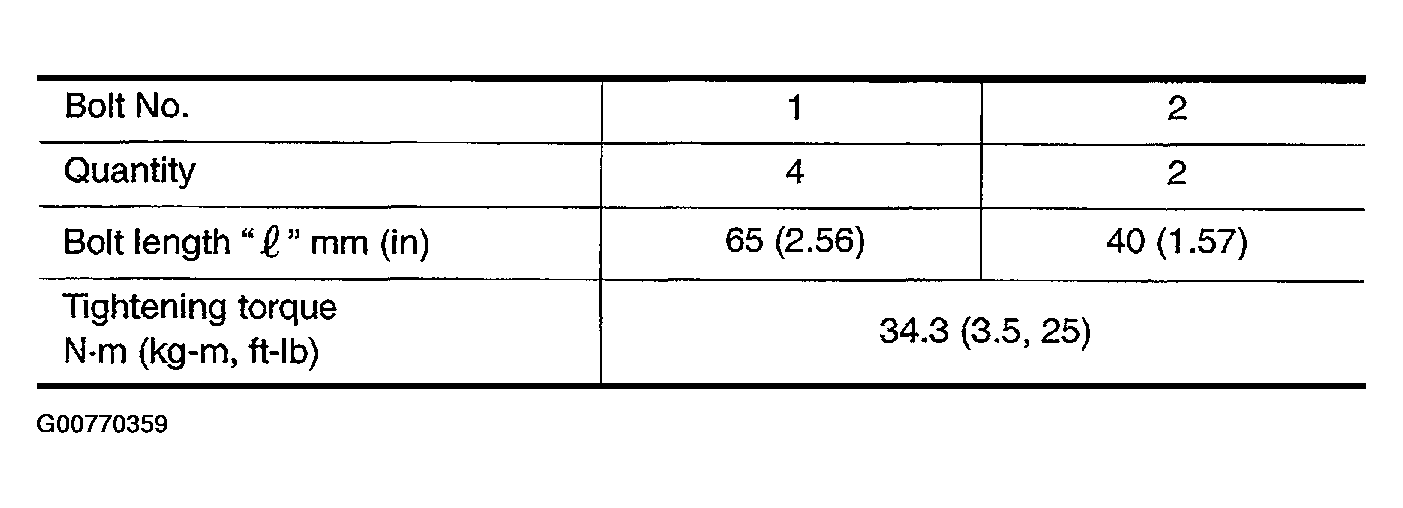

Fig 1: Mounting Bolts Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

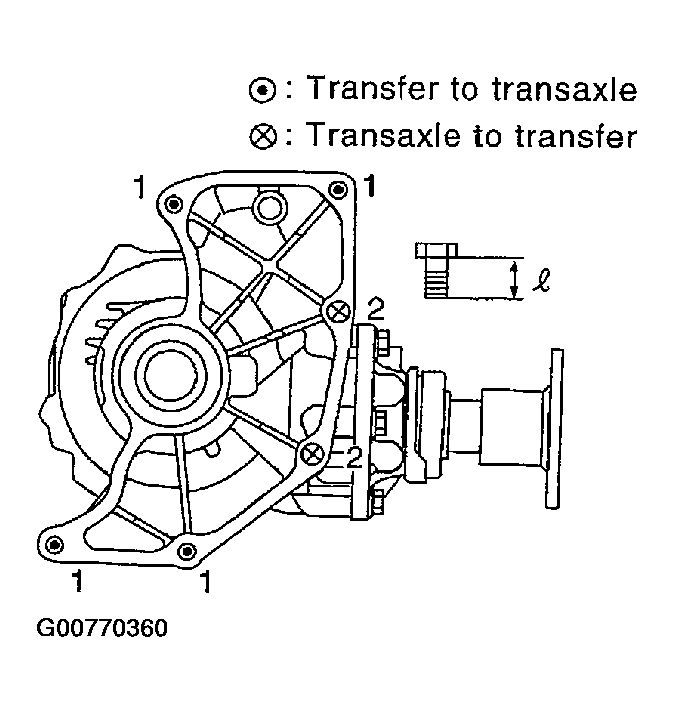

Fig 2: Installing Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When installing transfer to transaxle, be careful not to damage oil seal of transaxle.
After the installation, check the oil level and oil leakage. Refer to "INSPECTION ".
