Trouble Diagnosis Chart by Symptom

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Work Flow" before troubleshooting. Refer to "WORK FLOW ".
Always check key fob battery before replacing key fob.

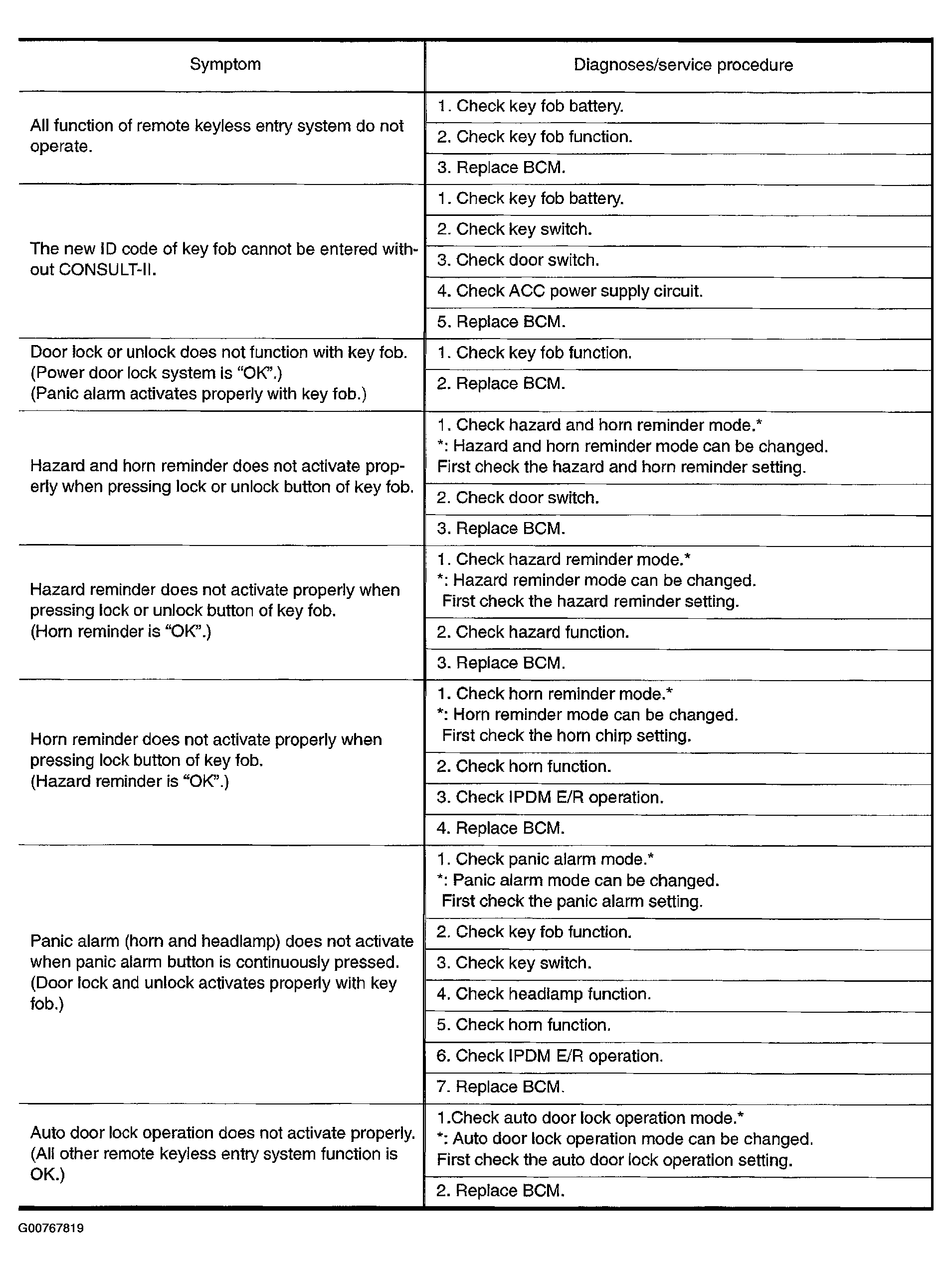

Fig 1: Problem Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

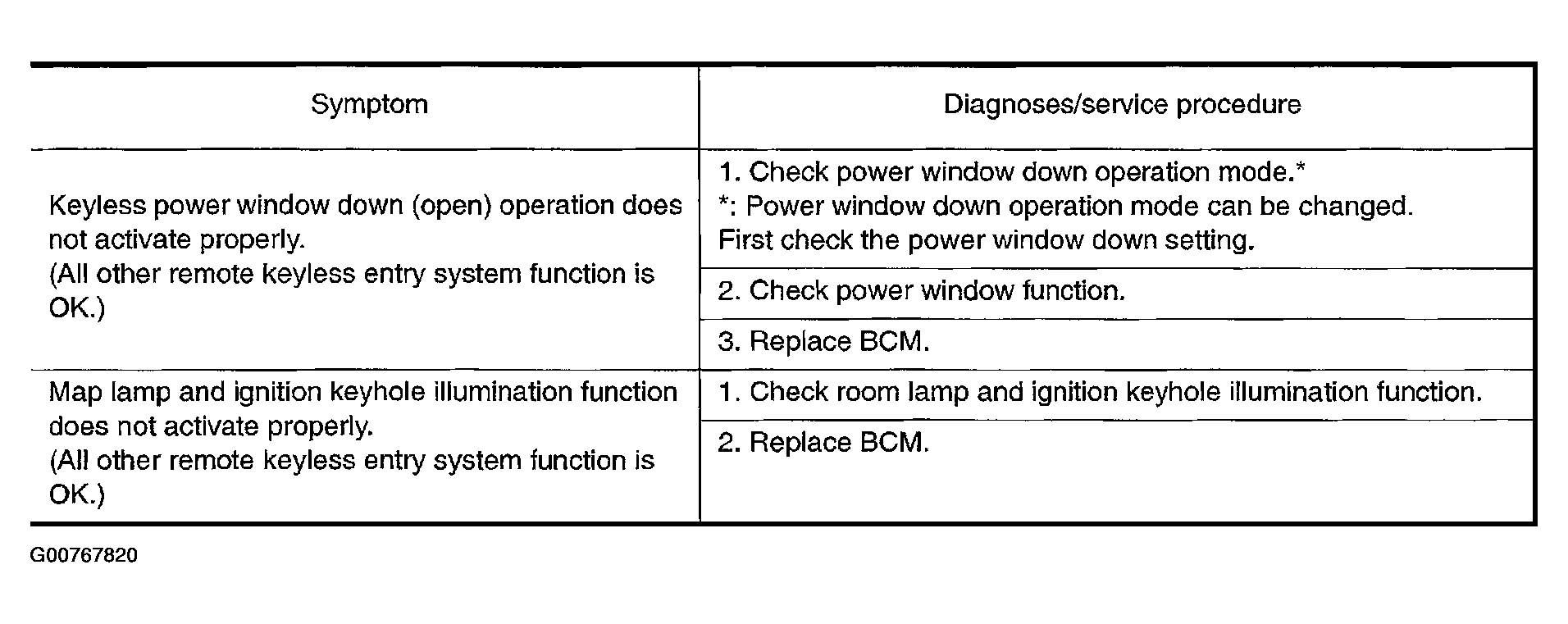

Fig 2: Problem Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
