Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down knob cover.
  2. Remove lock pin of selector knob.
  3. Lift up select lever knob and remove it. Refer to "SHIFT CONTROL SYSTEM ".
  4. Open cup holder lid.
  5. Insert a flat-bladed screwdriver wrapped with tape from behind A/T console finisher and remove by lifting.
  6. Disconnect harness connector, and remove A/T console finisher.

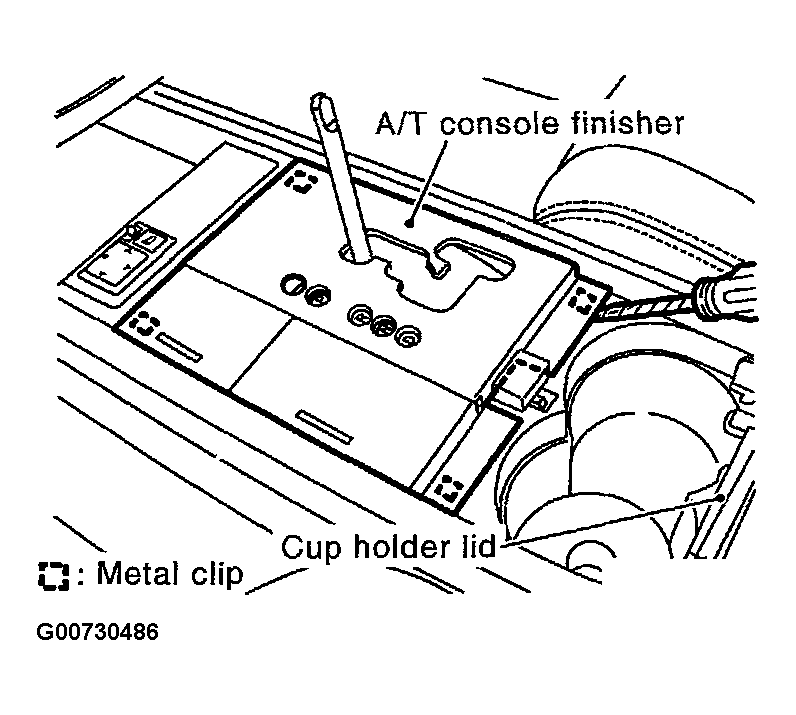

    Fig 1: Removing A/T Console Finisher
    G00730486Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Console front pocket is handled lifted, and disengage with the metal clips.
  8. Pull up and back to disengage from front pawls.
  9. Disconnect harness connector, and remove console front pocket.

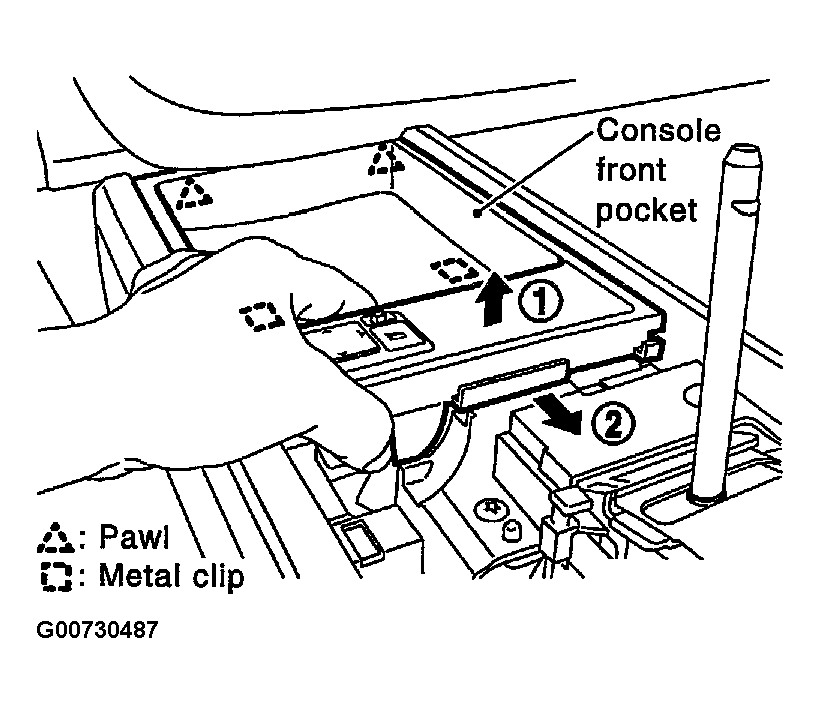

    Fig 2: Removing Console Front Pocket
    G00730487Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Open console lid.
  11. Remove console rear pocket.
  12. Insert a flat bladed screwdriver wrapped with tape from the space with the console box and remove console mask (LH/RH) by lifting.
  13. Remove screws, and remove center console assembly.
  14. Remove screws.
  15. Disconnect harness connector and remove console box.

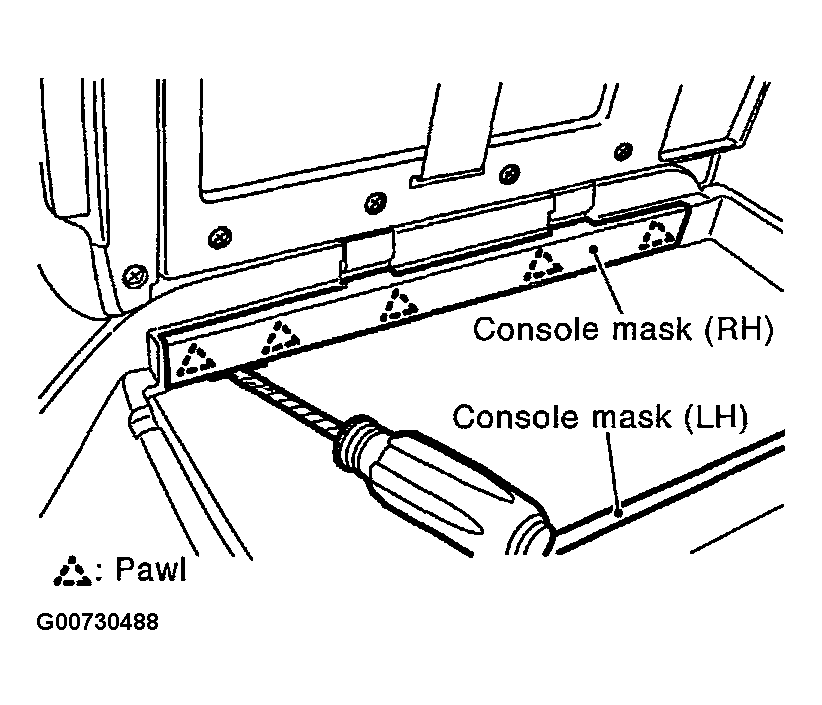

    Fig 3: Removing Console Mask (LH/RH)
    G00730488Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove screws.
  17. Disconnect metal clips and pawls, then remove rear cup holder and console rear cover.

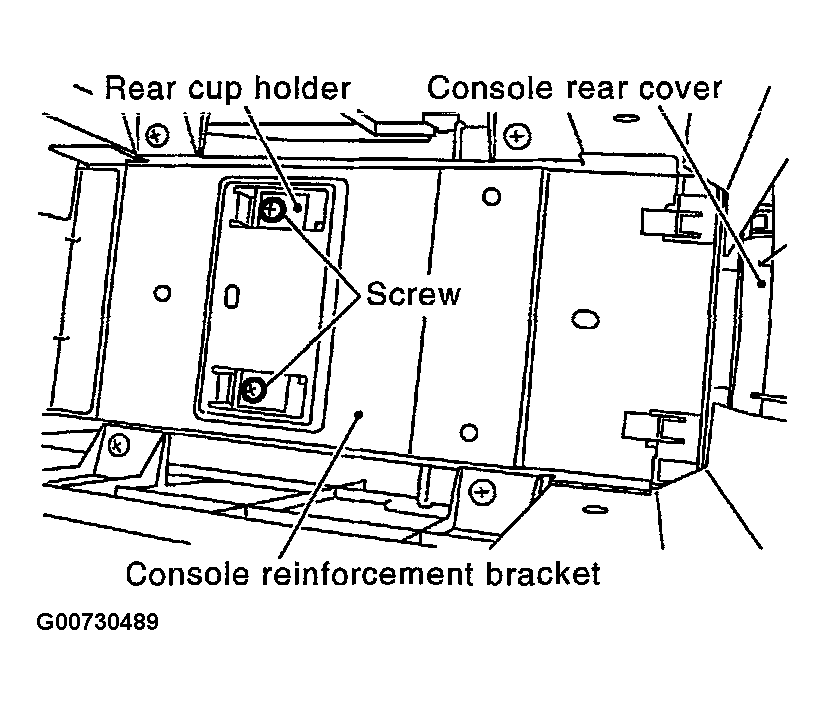

    Fig 4: Removing Rear Cup Holder And Console Rear Cover
    G00730489Courtesy of NISSAN MOTOR CO., U.S.A.
  18. The upper part of rear portion of instrument lower cover is pulled backward, and disengage with pawl is removed.
  19. Pull backward and remove instrument lower cover (LH).

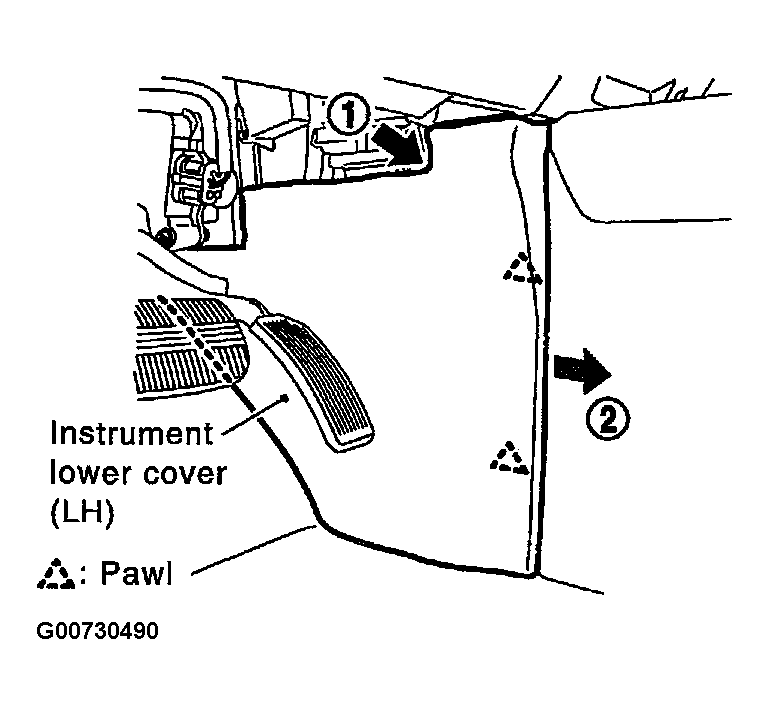

    Fig 5: Removing Instrument Lower Cover (LH)
    G00730490Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove screws.
  21. Disconnect clips, then remove console cover (LH/RH).
  22. Remove nuts, lock plate and control cable. Refer to "SHIFT CONTROL SYSTEM ".
  23. Remove bolts and nuts, and remove console reinforcement bracket.
