Power Supply and Ground Circuit Check for Display Unit

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE

Check if the following fuses in display unit are blown.

FUSE CHECK CHART

Unit	Power souse	Fuse No.
Display	Battery power	38
	Ignition switch ACC or ON	6
	Ignition switch ON or START	12

OK or NG

OK: GO TO 2.
NG: If fuse is blown be sure to eliminate case of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .

CHECK POWER SUPPLY CIRCUIT

Check voltage between display unit connector and ground.

VOLTAGE CHECK CHART

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal (Wire color)	(-)	OFF	ACC	ON
M39	1 (Y)	Ground	Battery voltage	Battery voltage	Battery voltage
	2 (P/B)	Ground	0V	Battery voltage	Battery voltage
	3 (G)	Ground	0V	0V	Battery voltage

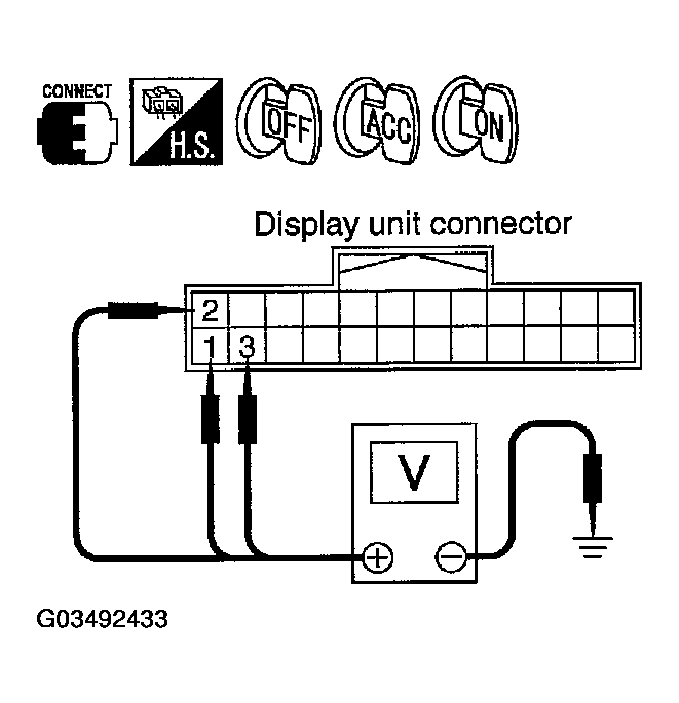

Fig 1: Checking Voltage Between Display Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.
NG: Check harness for open or short between display and fuse.

CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display unit connector.
3. Check continuity between display unit harness connector M39 terminals 6 (B) and ground.
  Continuity should exist.

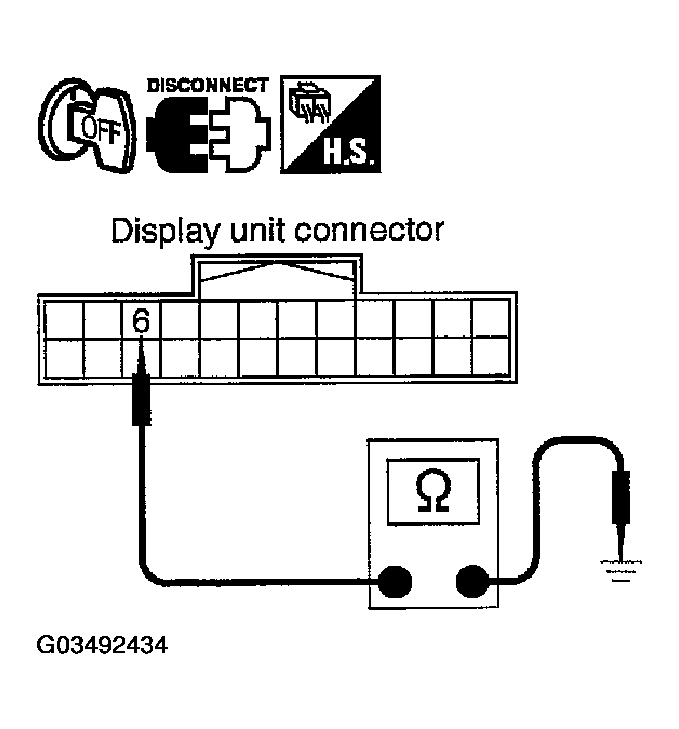

  Fig 2: Checking Continuity Between Display Unit Harness Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: INSPECTION END.
2. NG: Repair ground harness.
