Network Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Selecting NETWORK CHECK on self-diagnosis screen, display self-diagnostic results.

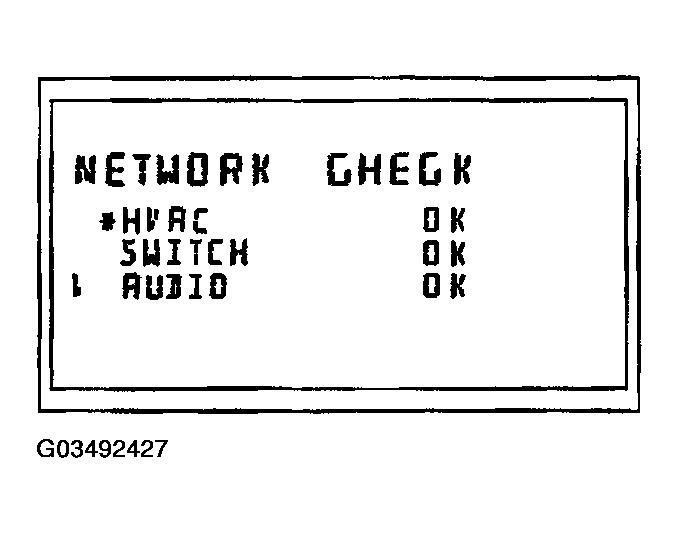

Fig 1: Identifying NETWORK Display
G03492427Courtesy of NISSAN MOTOR CO., U.S.A.
NETWORK CHECK CHART

Diagnosis item Contents DTC return condition Reference at error
HVAC OK/NG Communication error between unified meter and A/C amp. and display unit. "CAN COMMUNICATION LINE CHECK  "
SWITCH OK/NG Communication error between A/C and AV switch and display unit. "AV COMMUNICATION LINE CHECK  "
AUDIO OK/NG Communication error between audio and display unit. "AUDIO COMMUNICATION LINE CHECK  "
