Operation Procedures

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system off.
While pushing the "PAUSE/MUTE" switch, turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)

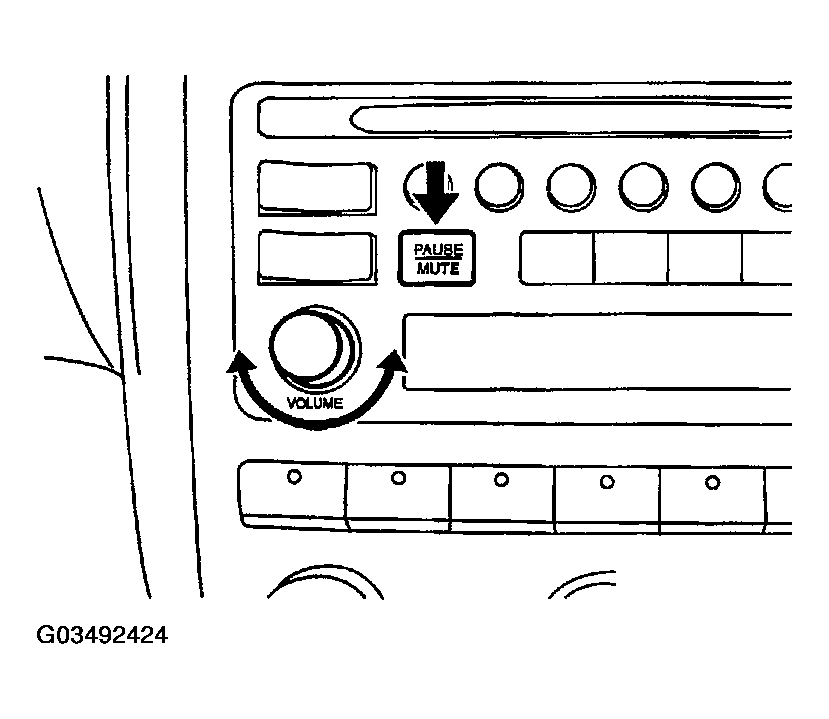

Fig 1: Identifying PAUSE/MUTE Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Display unit connection check screen.
Select each connecting unit (IVCS, CHANGER, SATELLITE RADIO).

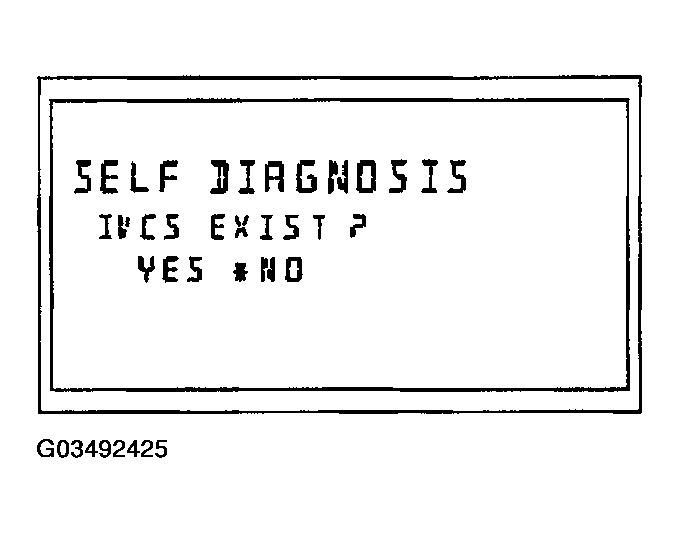

Fig 2: Identifying SELF DIAGNOSIS Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Self-diagnosis screen is displayed.
- Using the joystick, select each item, and perform diagnosis.
CAUTION: If self-diagnosis cannot activated, refer to "TROUBLE DIAGNOSIS CHART BY SYMPTOM ".

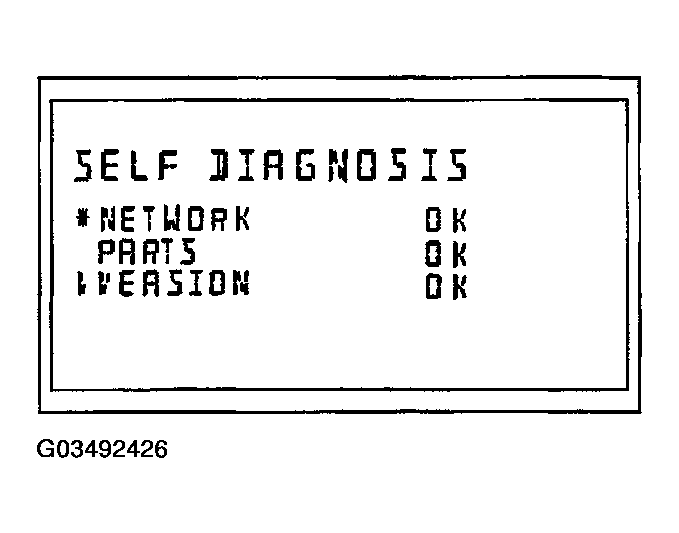

Fig 3: Identifying SELF DIAGNOSIS Display (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
