Display Detail Screen

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
DISPLAY DETAIL SCREEN CHART

Items Description
FULL BLINK All display unit segments turn ON.
BLANK-ADJ Adjust the display timeout for 5 to 15 seconds. (Default is 10 seconds.)(1)
WARNING Select warning indication ON/OFF. (Default is ON.)
(1) Except an audio screen.

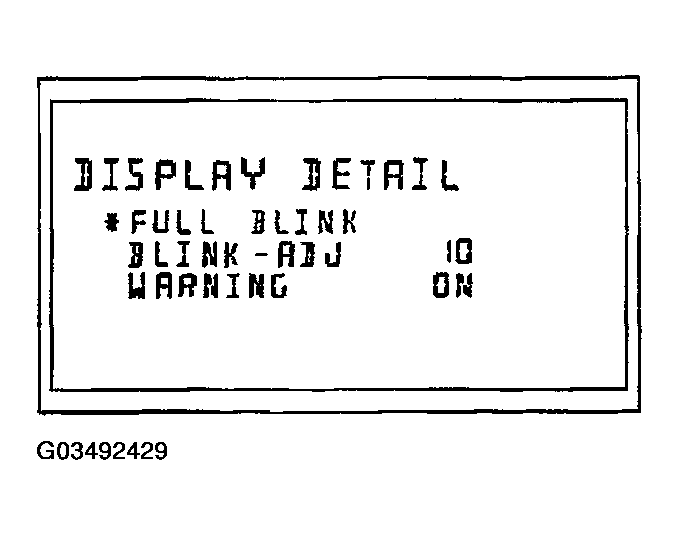

Fig 1: Identifying DISPLAY DETAIL Display
G03492429Courtesy of NISSAN MOTOR CO., U.S.A.
