MAINT Switch (Maintenance Switch)

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

When "MAINT" switch is pushed, display vehicle information screen. As vehicle information, it indicates) engine oil, tire rotation, and tire pressure.
Pushing "MAINT" switch once cycles display from engine oil-->tire rotation-->tire pressure* -->engine oil.
NOTE: *: There is not low tire pressure warning system becomes display OFF.

Engine Oil and Tire Rotation

Operating the joystick left/right, replace distance can be set.
When journey distance is the same as replace distance, alert is displayed. (SERVICE ALERT setting is ON.)
Selected replace distance is 0 - 7,500 miles (0 - 12,000 km) in increments of 500 mile (800 km).
Push and hold "TRIP RESET" or "MAINT" switch for 1.5 seconds or longer, reset present journey distance.
During driving, cannot change settings.

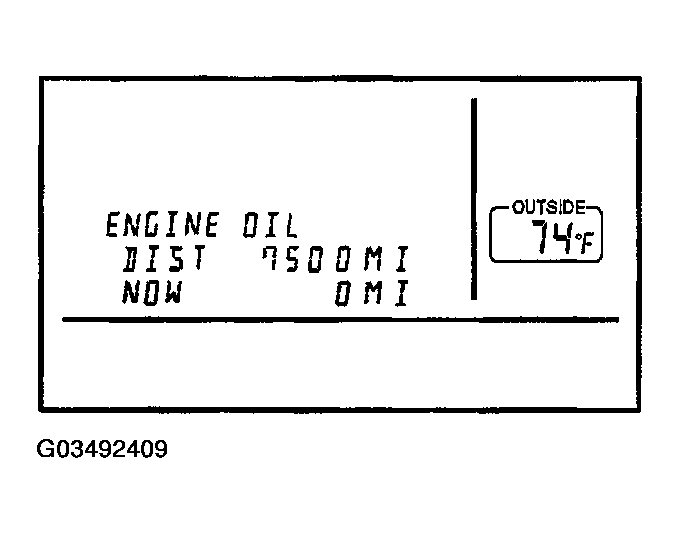

Fig 1: Identifying MAINT Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Tire Pressure

Tire pressure signal is received from low tire pressure warning control unit via CAN communication.
Tire pressure is displayed.
When FLAT TIRE signal is received from low tire pressure warning control unit, "FLAT TIRE" is displayed.

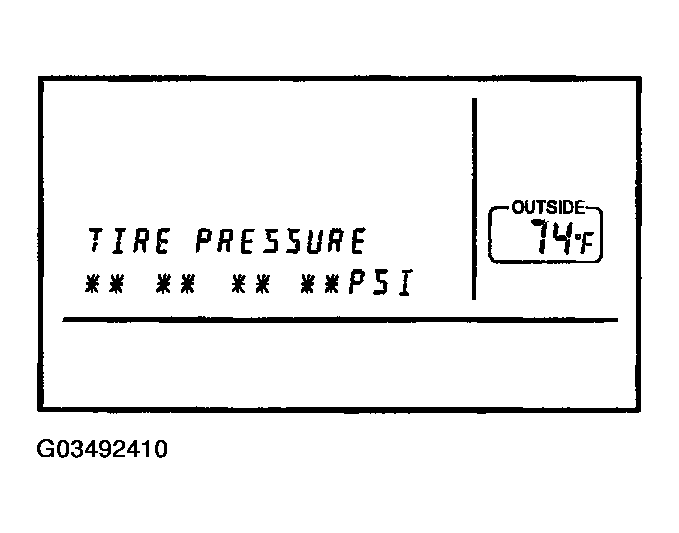

Fig 2: Identifying TIRE PRESSURE Display
Courtesy of NISSAN MOTOR CO., U.S.A.
