Power Supply and Ground Circuit Check for Display
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK POWER SUPPLY AND GROUND CIRCUIT FOR DISPLAY CONTROL UNIT
Check power supply and ground circuit for display control unit. Refer to "POWER SUPPLY AND GROUND CIRCUIT CHECK FOR DISPLAY CONTROL UNIT ".
OK or NG
- OK: GO TO 2.
- NG: Repair malfunctioning portion.
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch ON.

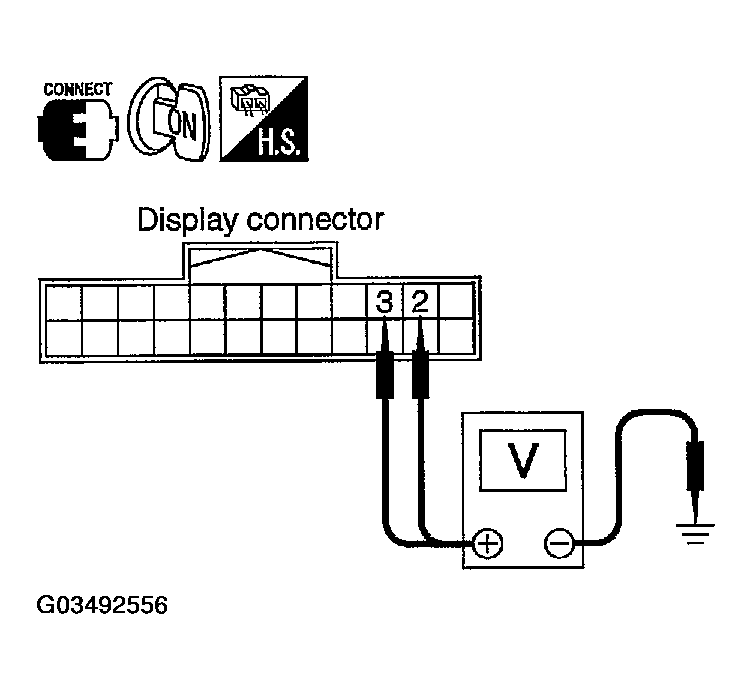

- Check voltage between display unit harness connector M38 terminals 2 (IAN), 3 (L/Y) and ground.
Approx. 9 V
OK or NG
- OK: GO TO 3.
- NG: GO TO 4 .
- CHECK GROUND CIRCUIT

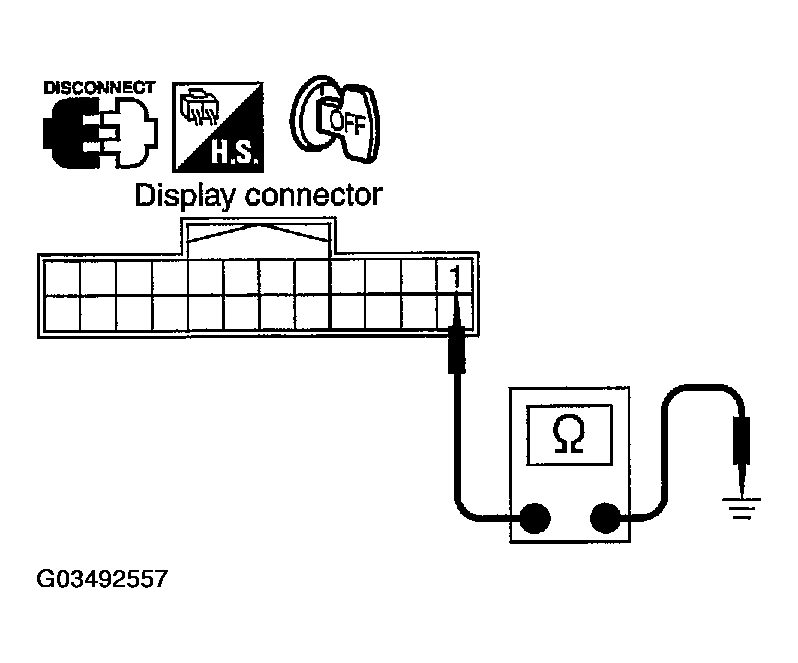

Check continuity between display and ground as follows.
CONTINUITY CHECK CHARTTerminals Ignition switch Continuity Connector Terminal (Wire color) Ground M38 1 (B) OFF Yes OK or NG
- OK: INSPECTION END.
- NG: Repair harness.
- CHECK HARNESS
- Turn ignition switch OFF.
- Disconnect display connector and display control unit connector.

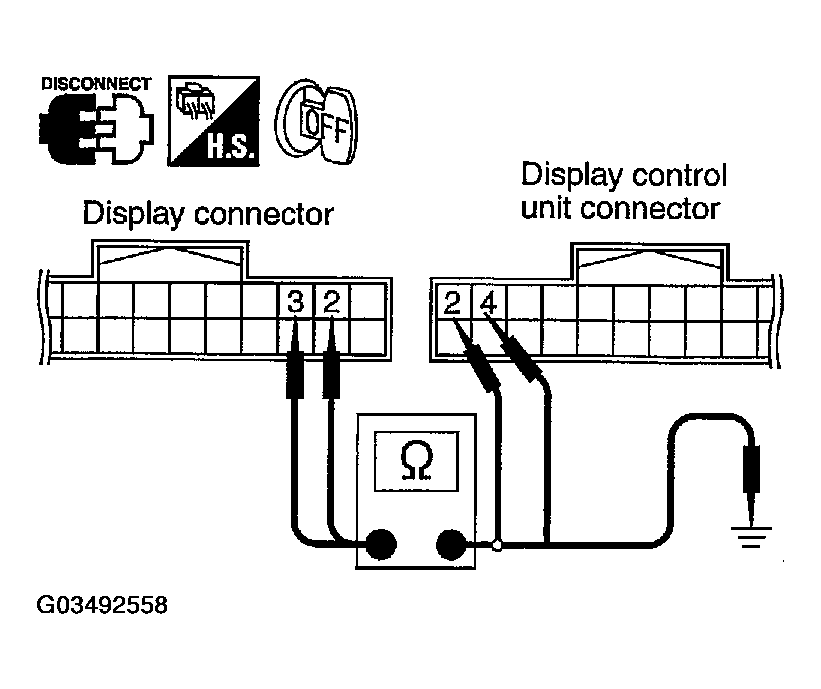

- Check continuity between display harness connector M38 terminals 2 (L/W), 3 (L/Y) and display control unit harness connector M42 terminals 2 (L/W), 4 (L/Y).CONTINUITY CHECK CHART
Terminals Continuity Display Display control unit Connector Terminal (Wire color) Connector Terminal (Wire color) M38 2 (L/W) M42 2 (L/W) Yes 3 (L/Y) 4 (L/Y) - Check continuity between display and ground.CONTINUITY CHECK CHART
Terminals Continuity Display Ground Connector Terminal (Wire color) M38 2 (L/W) No 3 (L/Y)
OK or NG
- OK: Replace display control unit.
- NG: Repair harness.
