Removal and Installation of NAVI Control Unit: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to "CENTER CONSOLE ASSEMBLY ".
Remove console cover (LH and RH). Refer to "CENTER CONSOLE ASSEMBLY ".
Remove control device assembly and remove NAVI control unit screws (2) and nut.
Disconnect NAVI control unit connector.

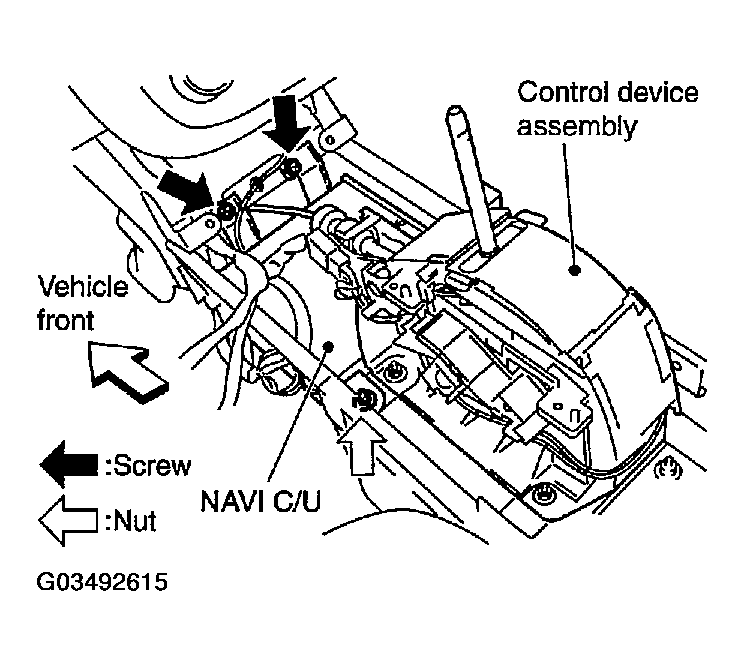

Fig 1: Identifying NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull NAVI control unit to a cock, then your side.
CAUTION: Cover unit with cloth avoid contact with console box bracket that may cause scratches or damages.

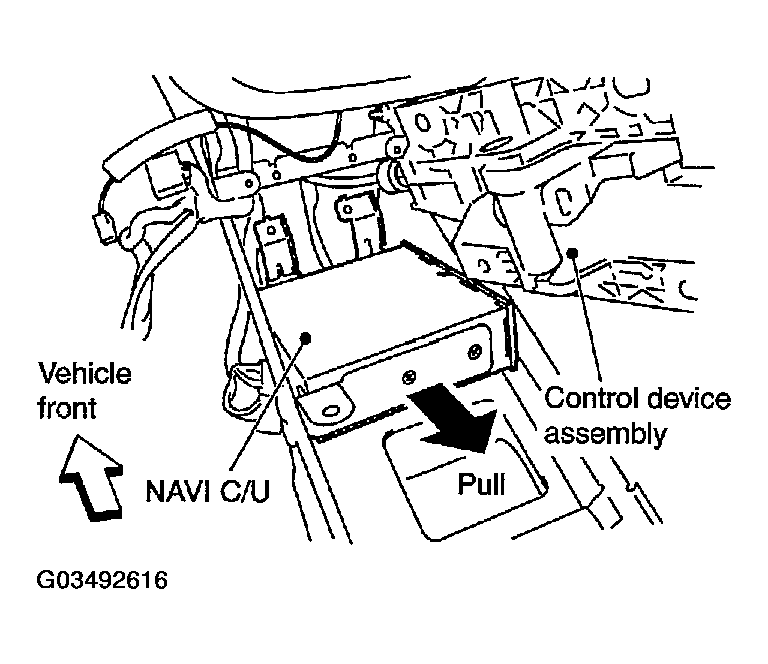

Fig 2: Pulling NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (4) and remove bracket.

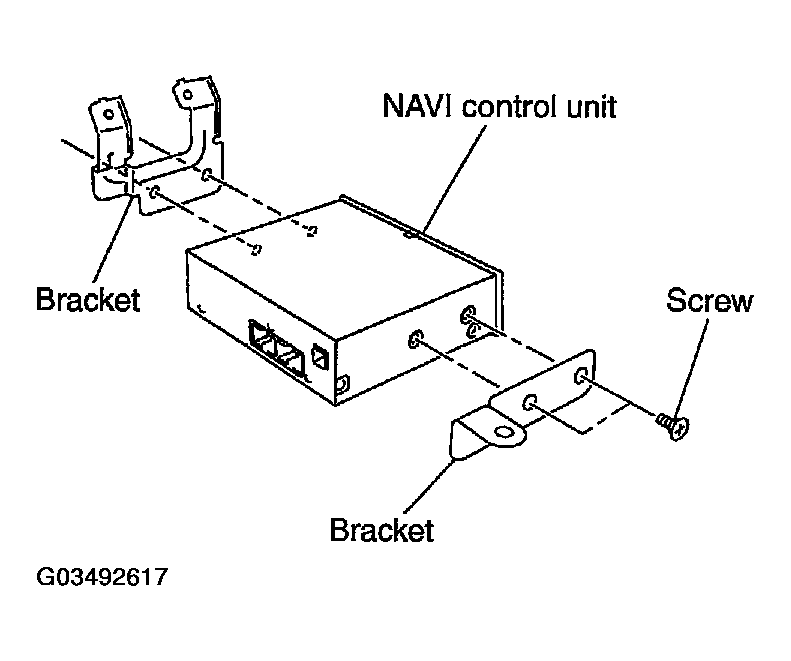

Fig 3: Removing Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
