Electronic Controlled Engine Mount: Murano

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Nissan Xterra, 2003 Nissan Sentra, 2003 Nissan Pathfinder, 2003 Nissan Murano, and 2003 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For electronic controlled engine mount system and component testing, see Fig 1-Fig 5 . For ECM location, connector and terminal view, see Figure. If problem is intermittent, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

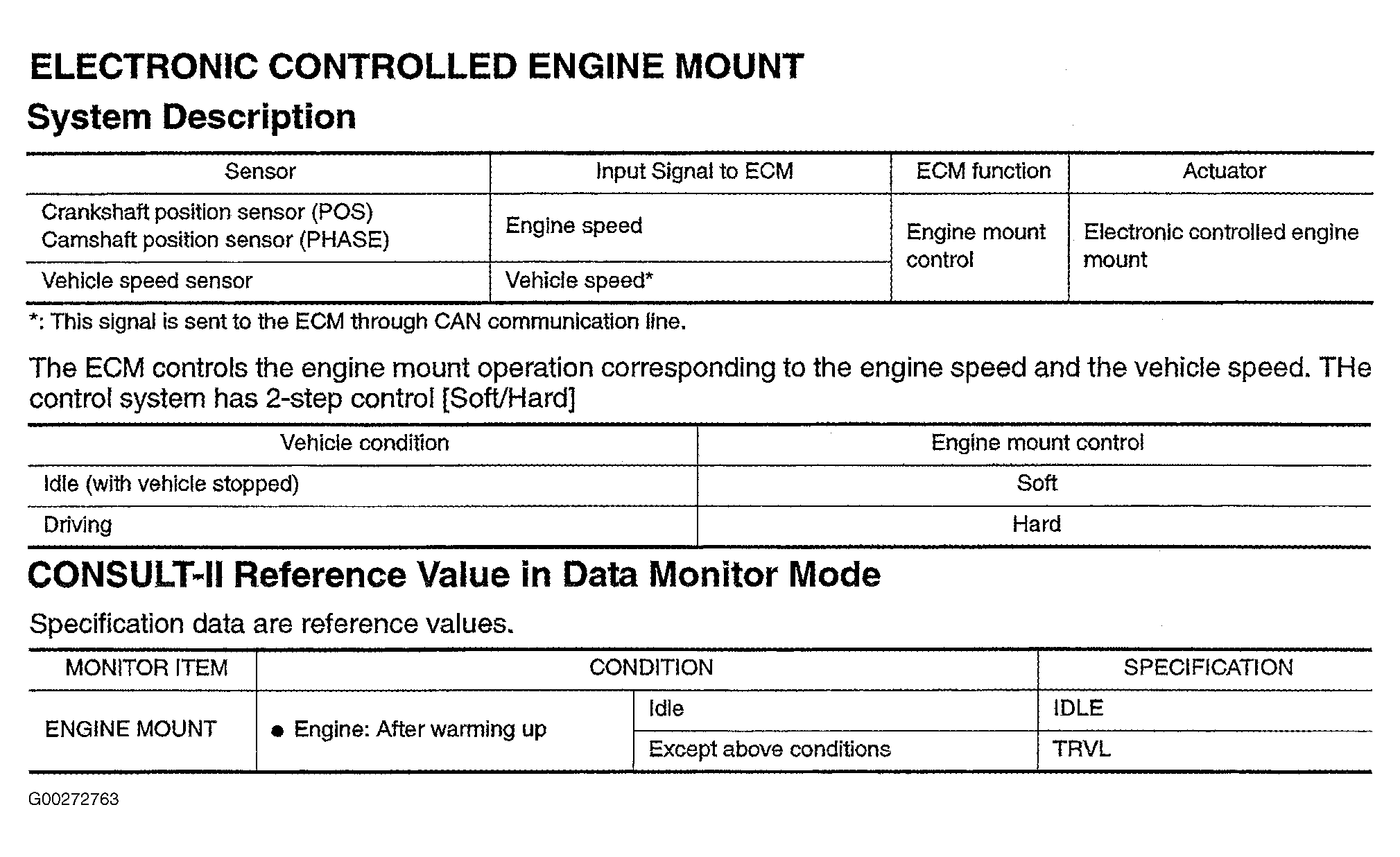

Fig 1: Electronic Controlled Engine Mount System & Component Testing Procedure (Murano - 1 Of 5)
G00272763Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Electronic Controlled Engine Mount System & Component Testing Procedure (Murano - 2 Of 5)
G00272764Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Electronic Controlled Engine Mount System & Component Testing Procedure (Murano - 3 Of 5)
G00272765Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Electronic Controlled Engine Mount System & Component Testing Procedure (Murano - 4 Of 5)
G00272766Courtesy of NISSAN MOTOR CO., U.S.A.

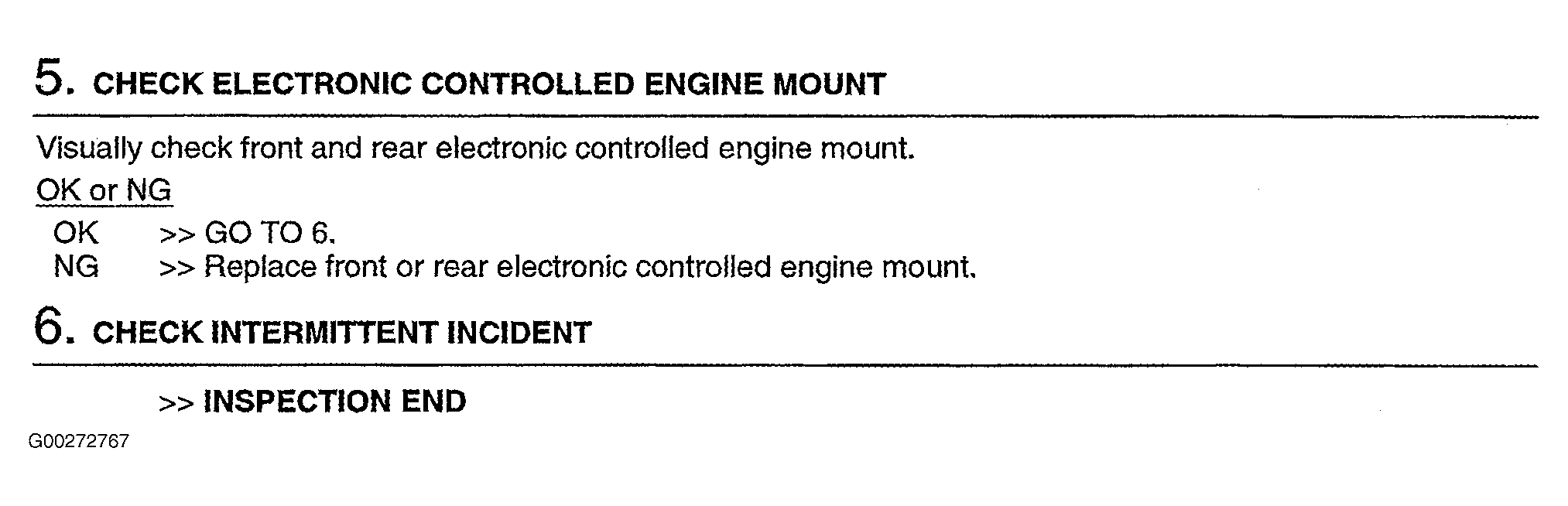

Fig 5: Electronic Controlled Engine Mount System & Component Testing Procedure (Murano - 5 Of 5)
G00272767Courtesy of NISSAN MOTOR CO., U.S.A.
