Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to CENTER CONSOLE .
  2. Disconnect harness connector.
  3. Remove attaching nuts and remove yaw rate/side/decel G sensor.

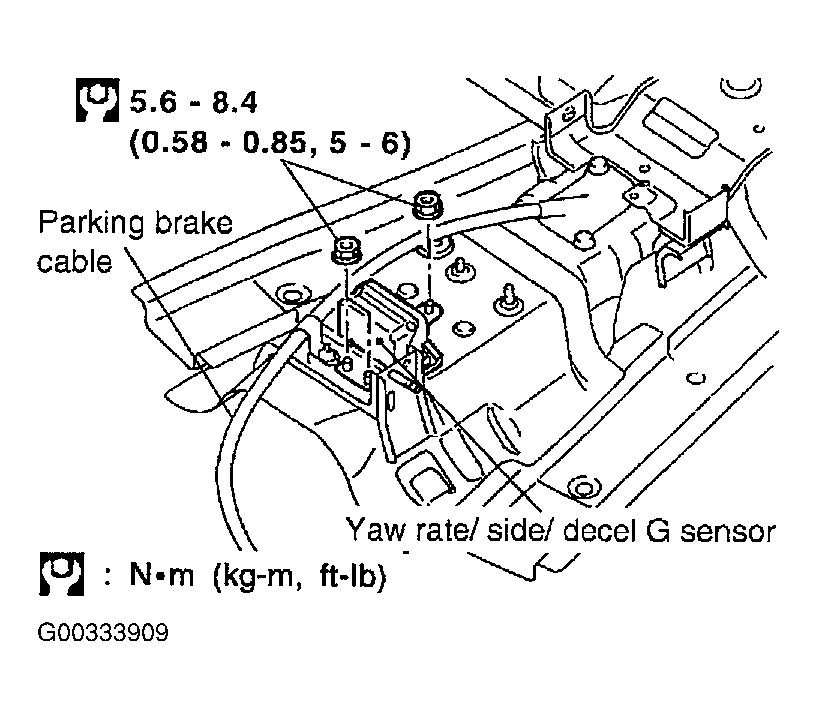

Fig 1: Removing G Sensor (Torque Specifications Included)
G00333909Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not drop or strike the yaw rate/side/decel G sensor.
  • Do not use power tools to remove or install yaw rate/side/decel G sensor.
