Check Key Switch (Insert)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between key switch connector terminals.

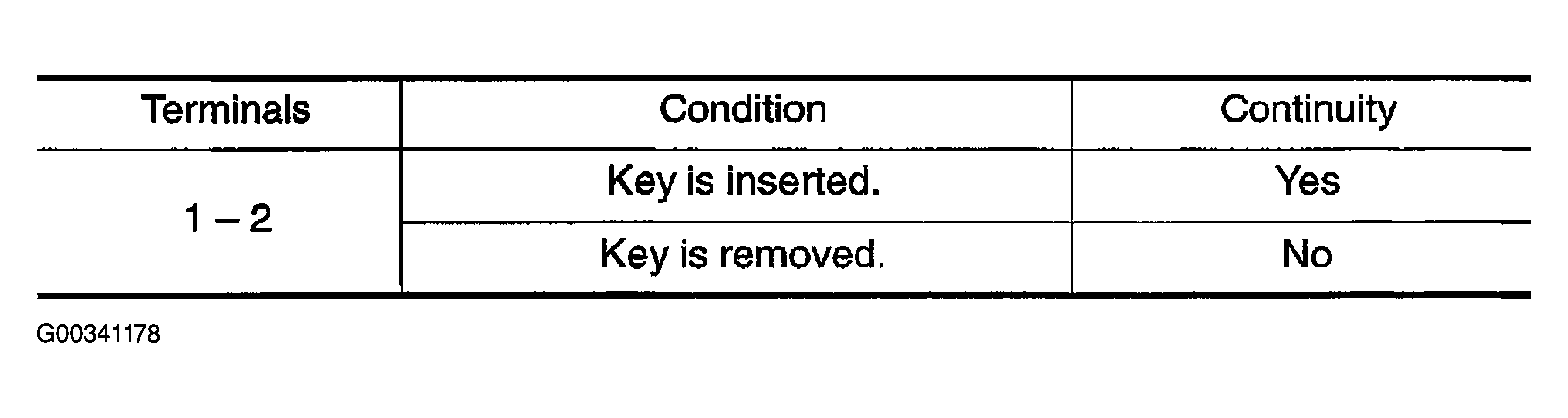

Fig 1: Key Switch Terminals Continuity Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Repair or replace harness.
NG >> Replace key switch.

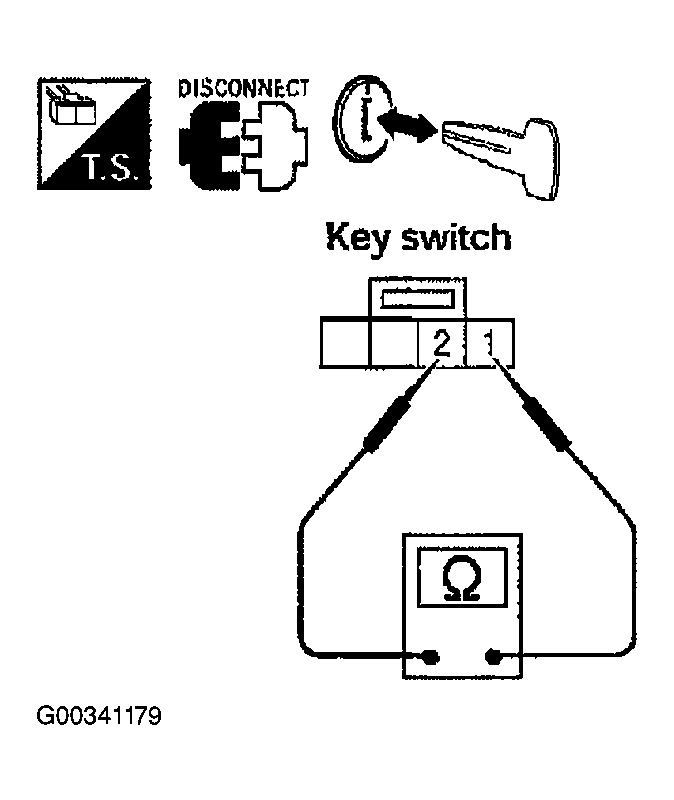

Fig 2: Checking continuity between key switch connector terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
