Connector Identification

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

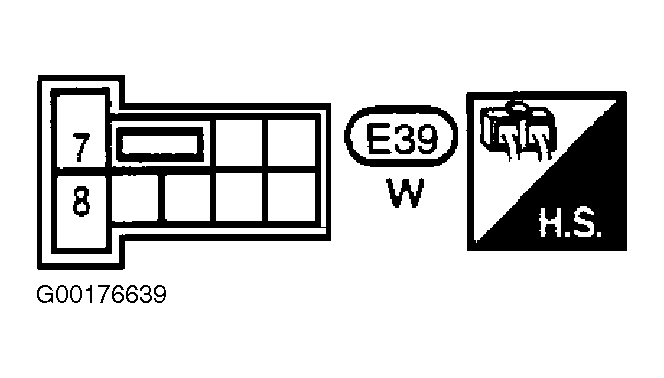

Fig 1: Identifying Connector E39 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Connector M19 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

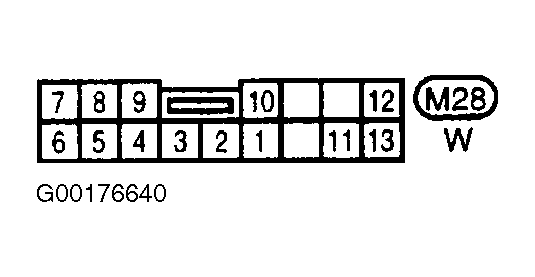

Fig 3: Identifying Connector M28 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
