How To Change The Display For ODO/Trip Meter

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combination meter and the mileage is displayed.
Depressing the odo/trip meter switch toggles the mode in the following order.

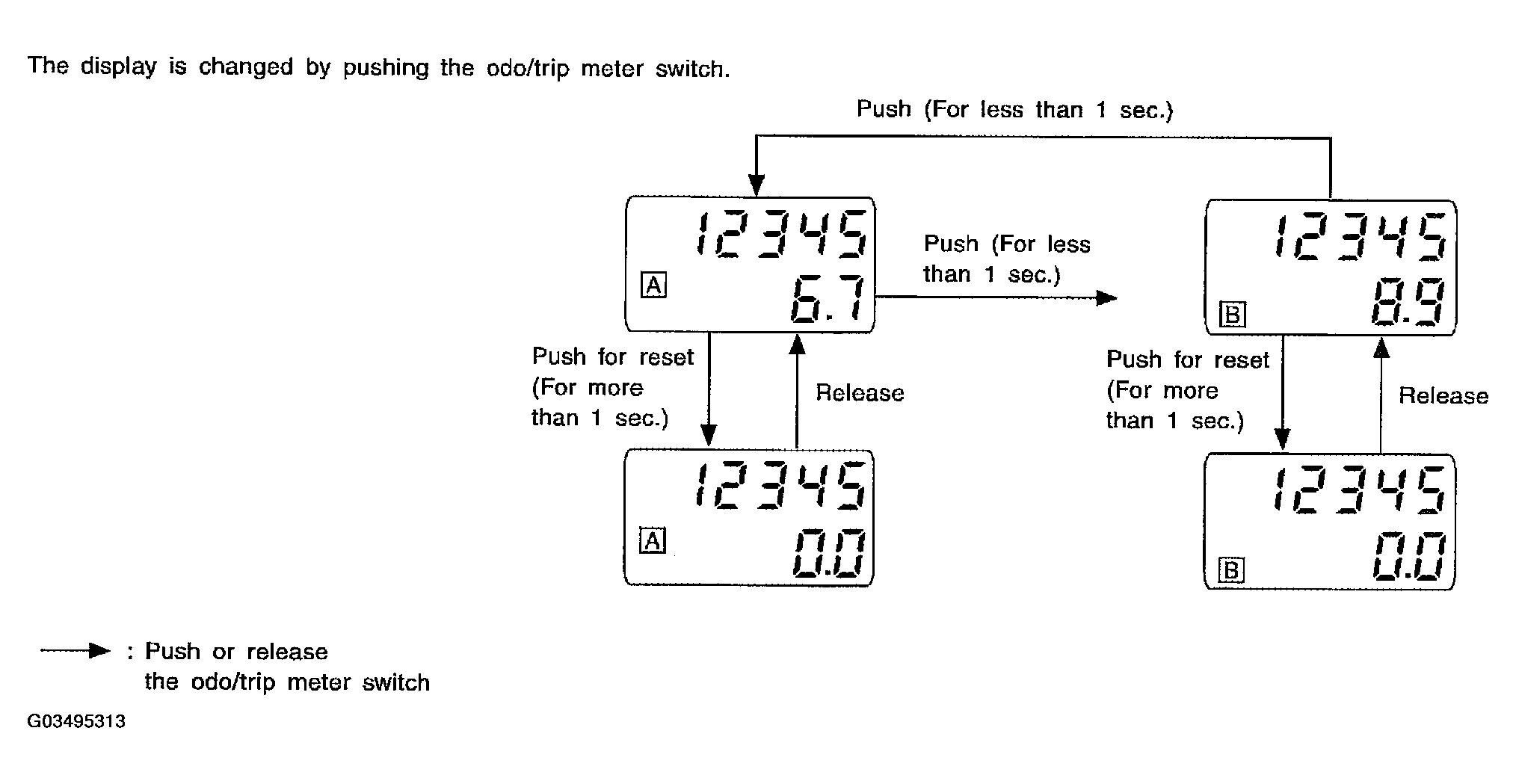

Fig 1: Depressing Odo/Trip Meter Switch Toggles
Courtesy of NISSAN MOTOR CO., U.S.A.
The odo/trip meter display mode toggling and trip display resetting can be identified by the amount of time that elapses from pressing the odo/trip meter switch to releasing it.
When resetting with trip A displayed, only trip A display is reset. (Trip B operates the same way.)

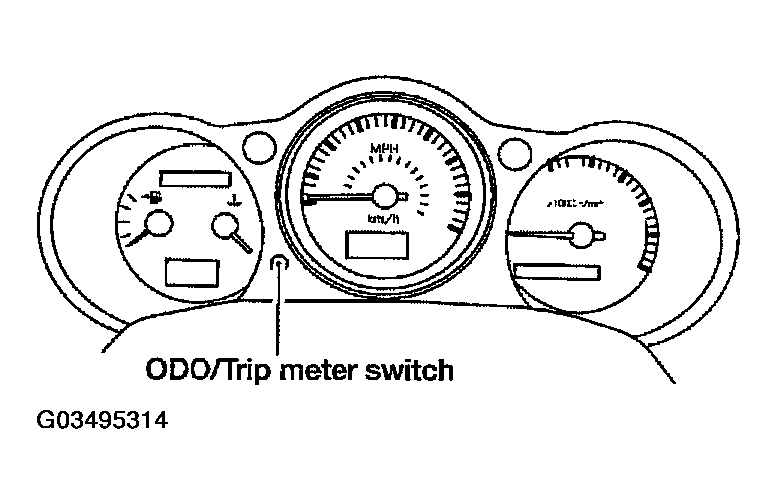

Fig 2: Identifying Odo/Trip Meter Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
