Network Check
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

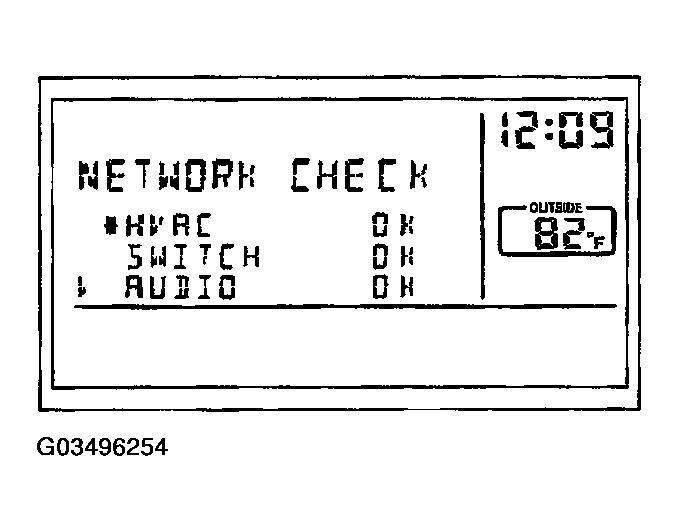

Selecting NETWORK CHECK on self-diagnosis screen, display self-diagnostic results.
DTC DIAGNOSIS ITEM CHART
| Diagnosis item | Contents | DTC return condition | Reference at error |
|---|---|---|---|
| HVAC | OK/NG | Communication error between unified meter and A/C amp. and display unit. | CAN Communication Line Check" |
| SWITCH | OK/NG | Communication error between AV switch and display unit. | AV Communication Line Check |
| AUDIO | OK/NG | Communication error between audio and display unit. | Audio Communication Line Check |
