Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.
  4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
  5. After stopping the vehicle, with the engine running, touch "START (NISSAN BASED VHCL)", "ABS", "SELF-DIAG RESULTS" in order on the CONSULT-II screen.
    CAUTION: If "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning on the ignition switch, "ABS" might not be displayed in the System Selection screen. In this case, repeat the operation from step 1.
  6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by touching "PRINT".)
    • When "NO FAILURE" is displayed, check the ABS warning lamp.
  7. Conduct the appropriate inspection from the display item list, and repair or replace the malfunctioning component.
  8. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
    CAUTION:
    • When a wheel sensor "short-circuit" is detected, if the vehicle is not driven at 30 km/h (19 MPH) for at least 1 minute, the ABS warning lamp will not turn off even if the malfunction is repaired.
  9. Turn ignition switch OFF to prepare for erasing the memory.
  10. Start the engine and touch "START (NISSAN BASED VHCL)", "ABS", "SELF-DIAG RESULTS", "ERASE MEMORY" in order on the CONSULT-II screen to erase the error memory. If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.
    CAUTION: If the error memory is not erased, re-conduct the operation from step 5.
  11. For the final inspection, drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute and confirm that the ABS warning lamp is off.


  1. After turning OFF the ignition switch, connect CONSULT-II and the CONSULT-II CONVERTER to the data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)", "ABS", "DATA MONITOR" in order on the CONSULT-II screen. If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.
    CAUTION: When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning on the ignition switch, "ABS" might not be displayed in the system selection screen. In this case, repeat the operation from step 2.
  3. Return to the Monitor Item Selection screen, and touch "C/U INPUT ITEM", "MAIN ITEM" or "ITEM MENU SELECTION". Refer to the following information.
  4. When "START" is touched, the data monitor screen is displayed.


  1. Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.

  4. Touch "ACTIVE TEST".
  5. The test item selection screen is displayed.
  6. Touch necessary test item.

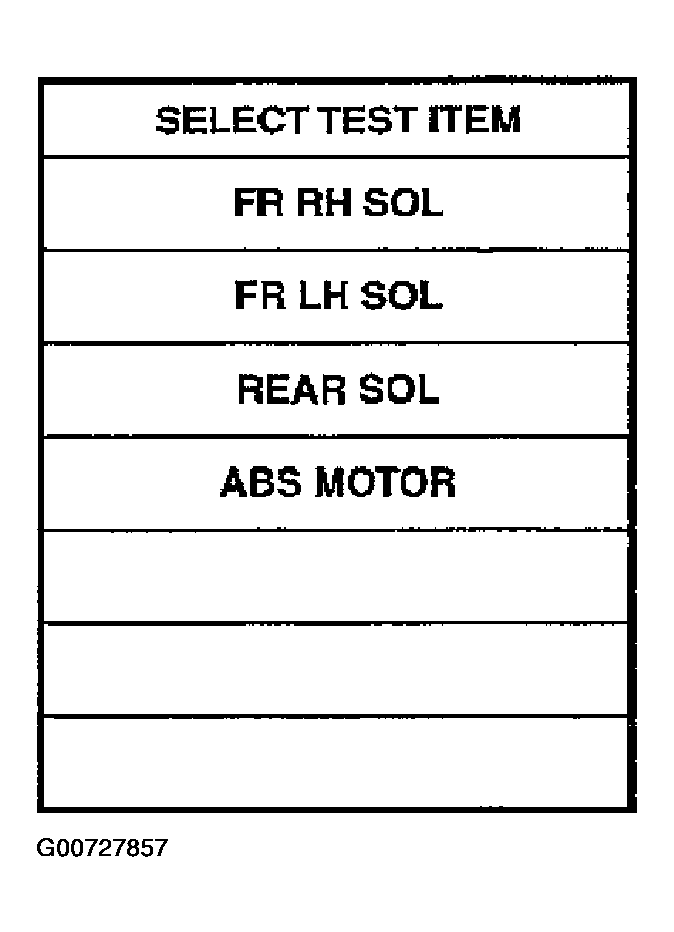

    Fig 1: CONSULT-II Function Display
    G00727857Courtesy of NISSAN MOTOR CO., U.S.A.
  7. With the "MAIN ITEM" display shown in reverse, touch "START".
  8. The Active Test screen will be displayed, so conduct the following test.
