Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch/King Cab

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

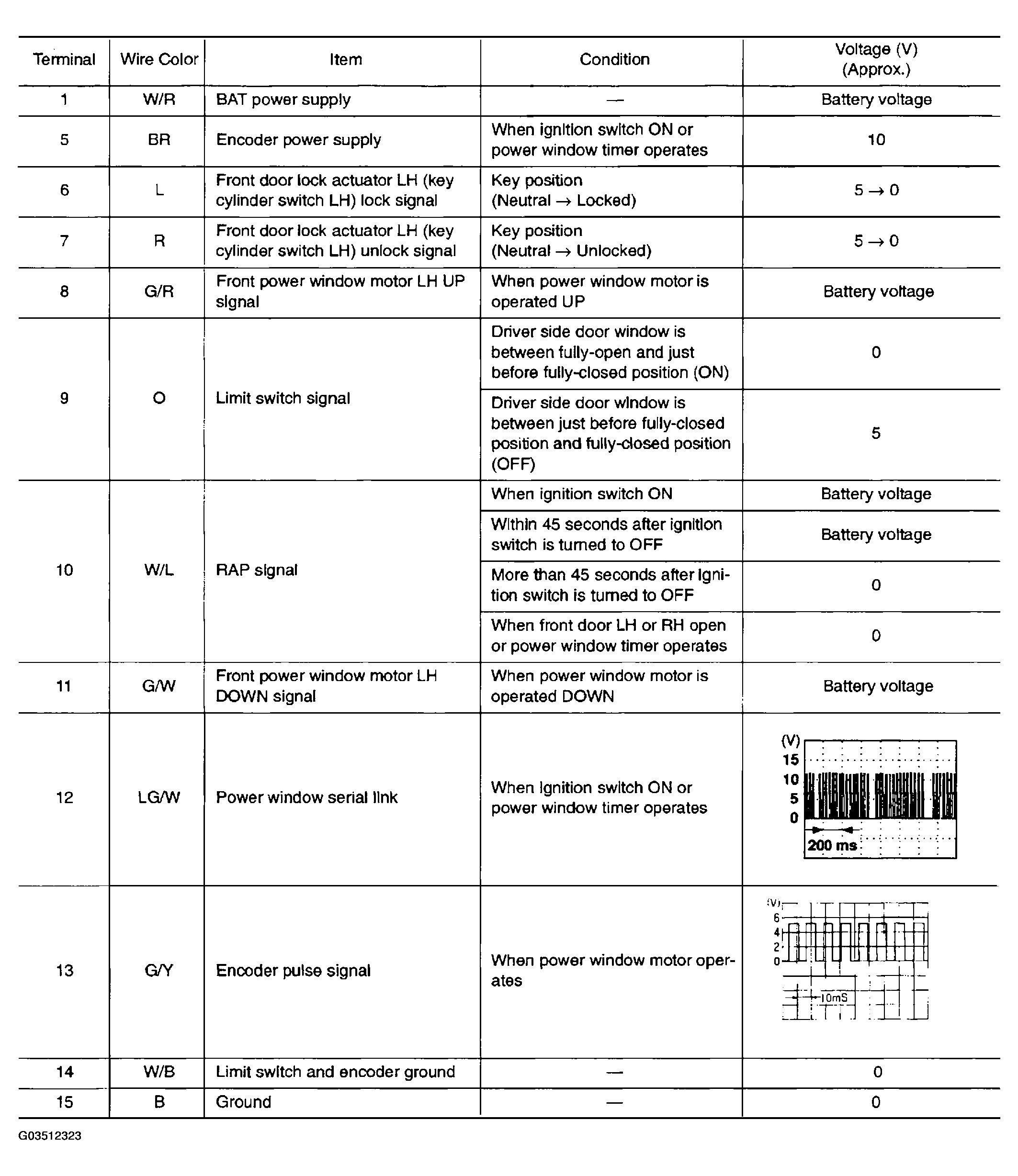

Fig 1: Main Power Window And Door Lock/Unlock Switch/King Cab Terminal And Reference Value Chart
G03512323Courtesy of NISSAN MOTOR CO., U.S.A.
