Consult-II Operation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

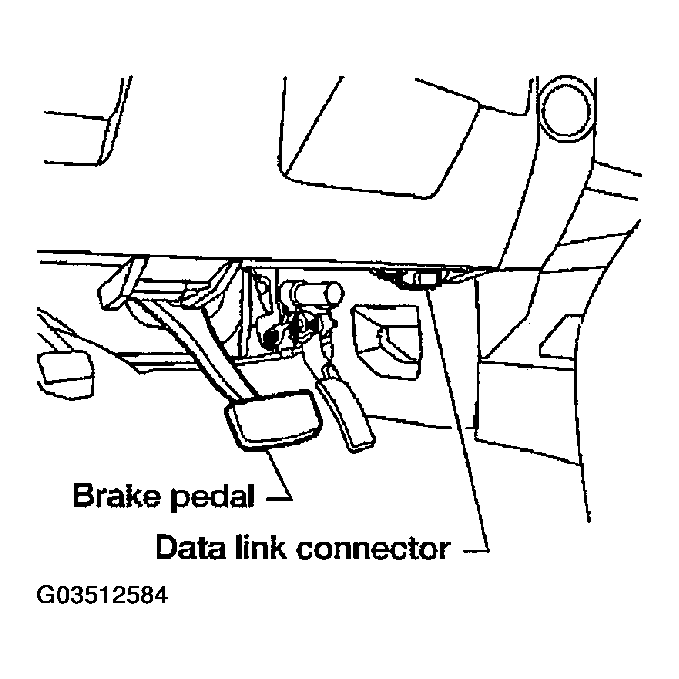

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

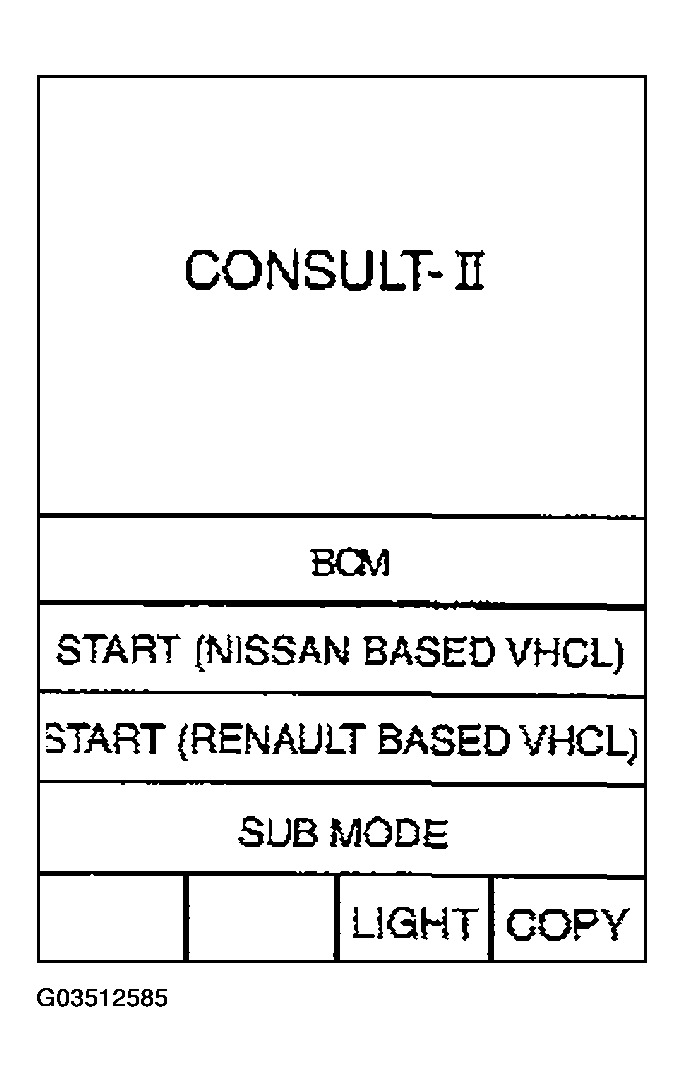

Fig 2: Identifying Scan Tool Display With CONSULT-II (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, refer to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT

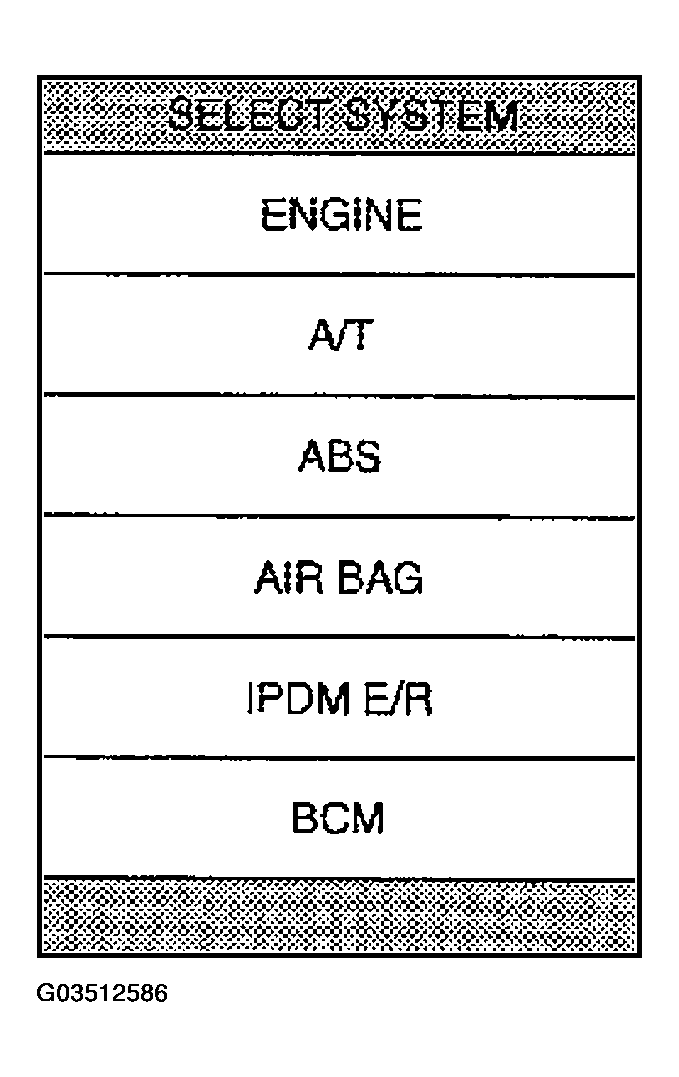

Fig 3: Identifying Scan Tool Display With CONSULT-II (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT SYSTEM" screen.

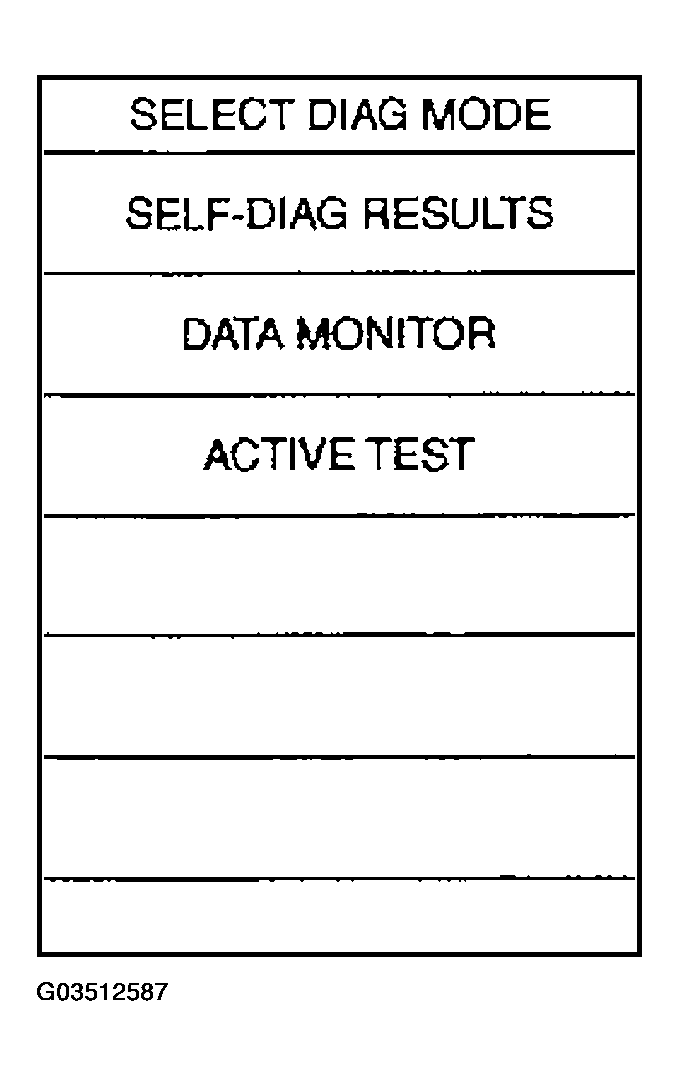

Fig 4: Identifying Scan Tool Display With CONSULT-II (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
