Removal and Installation of Optical Sensor: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defrost grille. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect the connector.
  3. Turn the optical sensor counterclockwise to remove it from defroster grille.

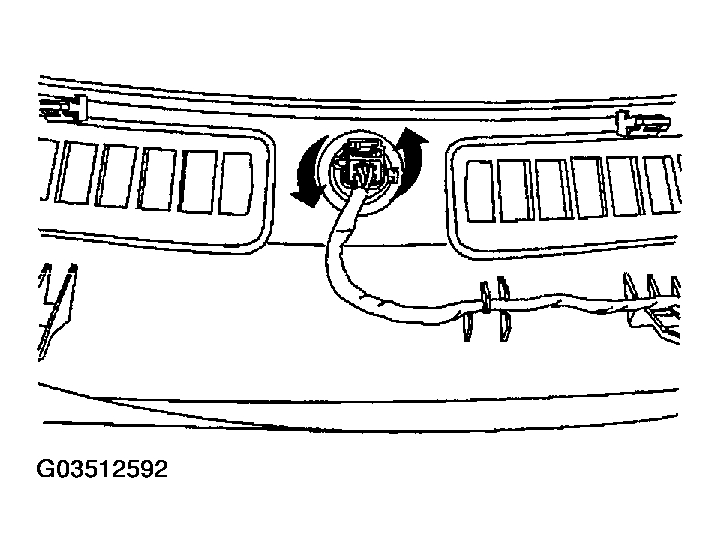

Fig 1: Disconnecting Connector
G03512592Courtesy of NISSAN MOTOR CO., U.S.A.
