Terminals and Reference Value for Audio Unit for Midline System
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

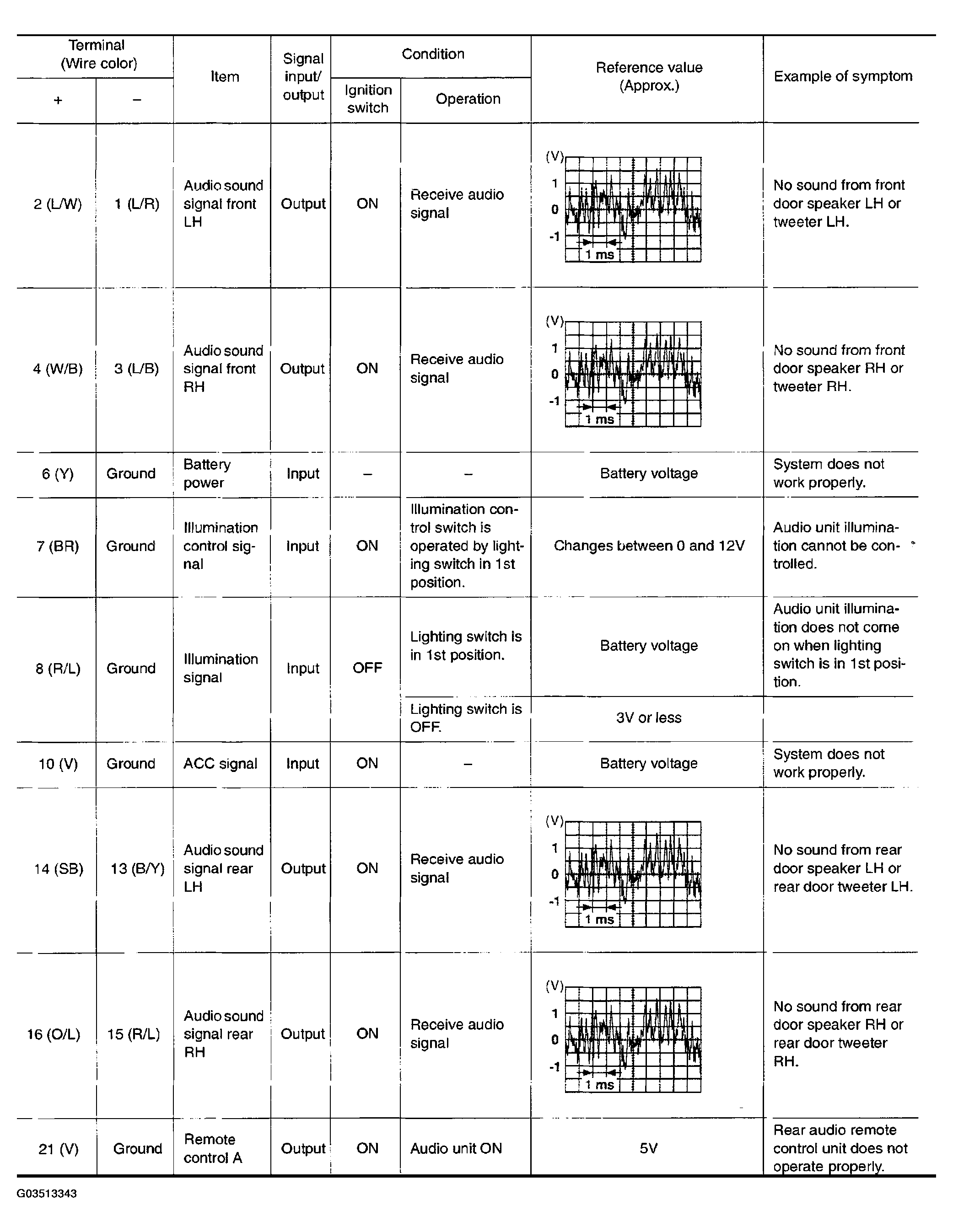

Fig 1: Audio Unit Midline System Terminals And Reference Value Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

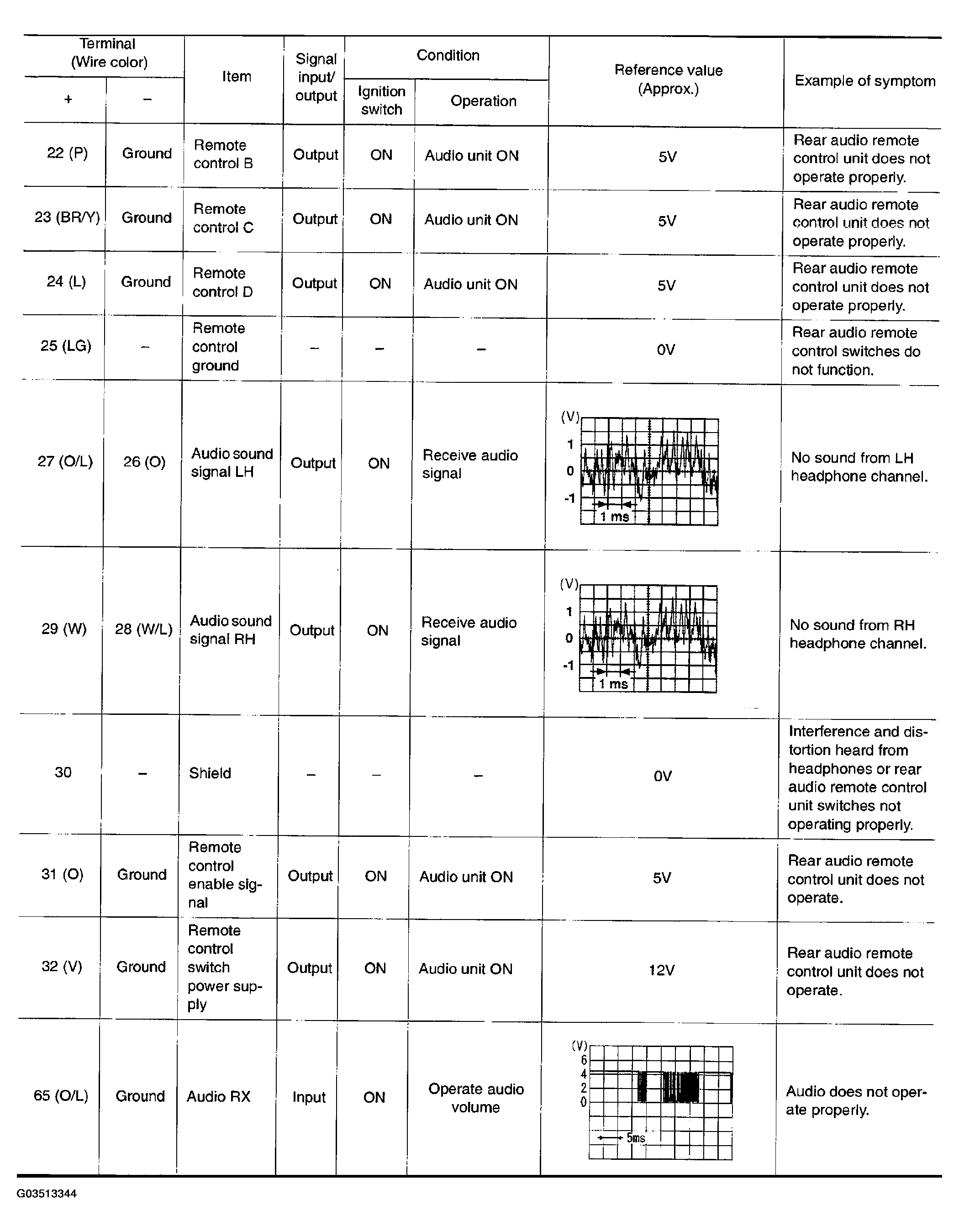

Fig 2: Audio Unit Midline System Terminals And Reference Value Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

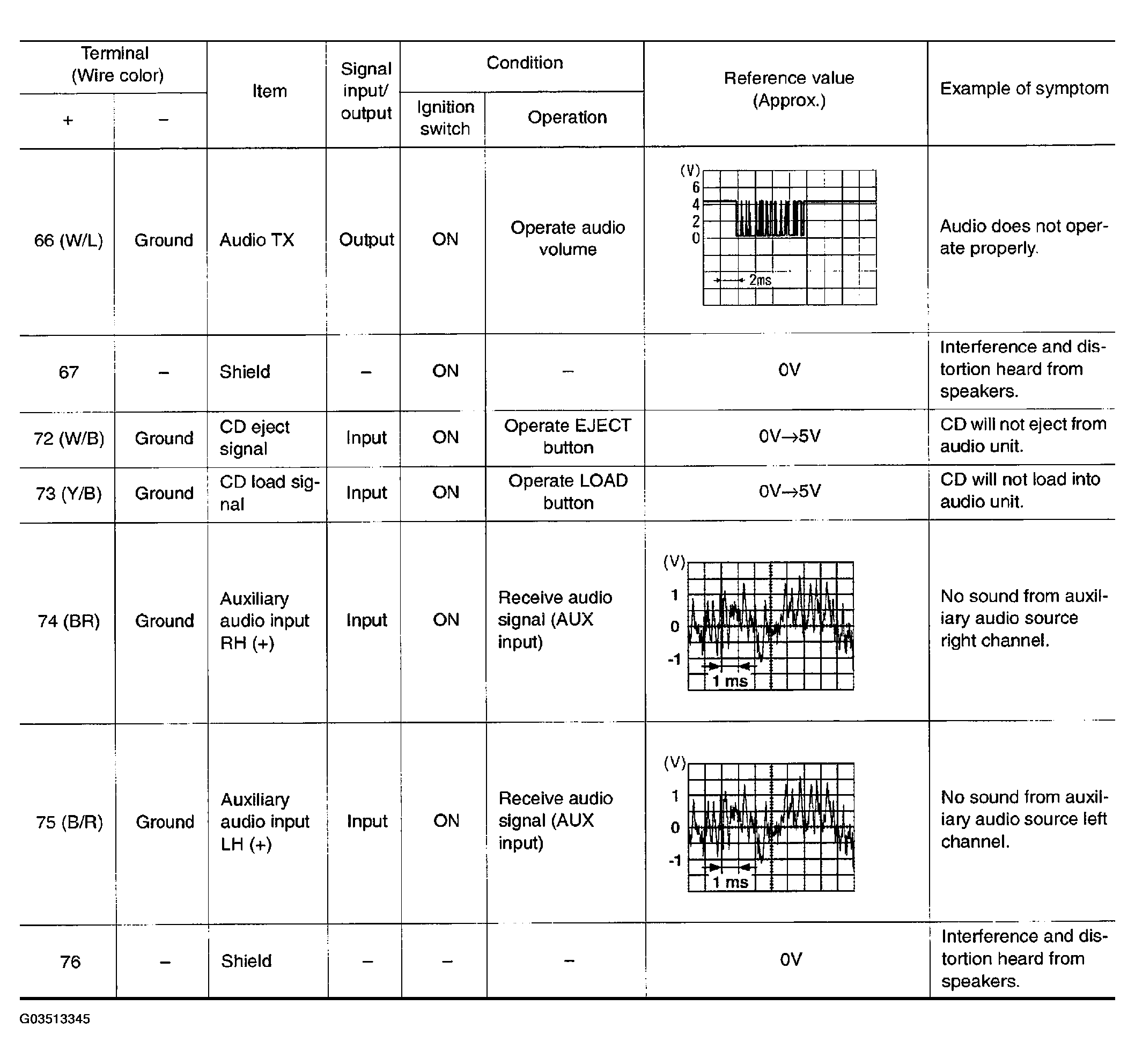

Fig 3: Audio Unit Midline System Terminals And Reference Value Chart (3 Of 3)
