Component Locations
WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

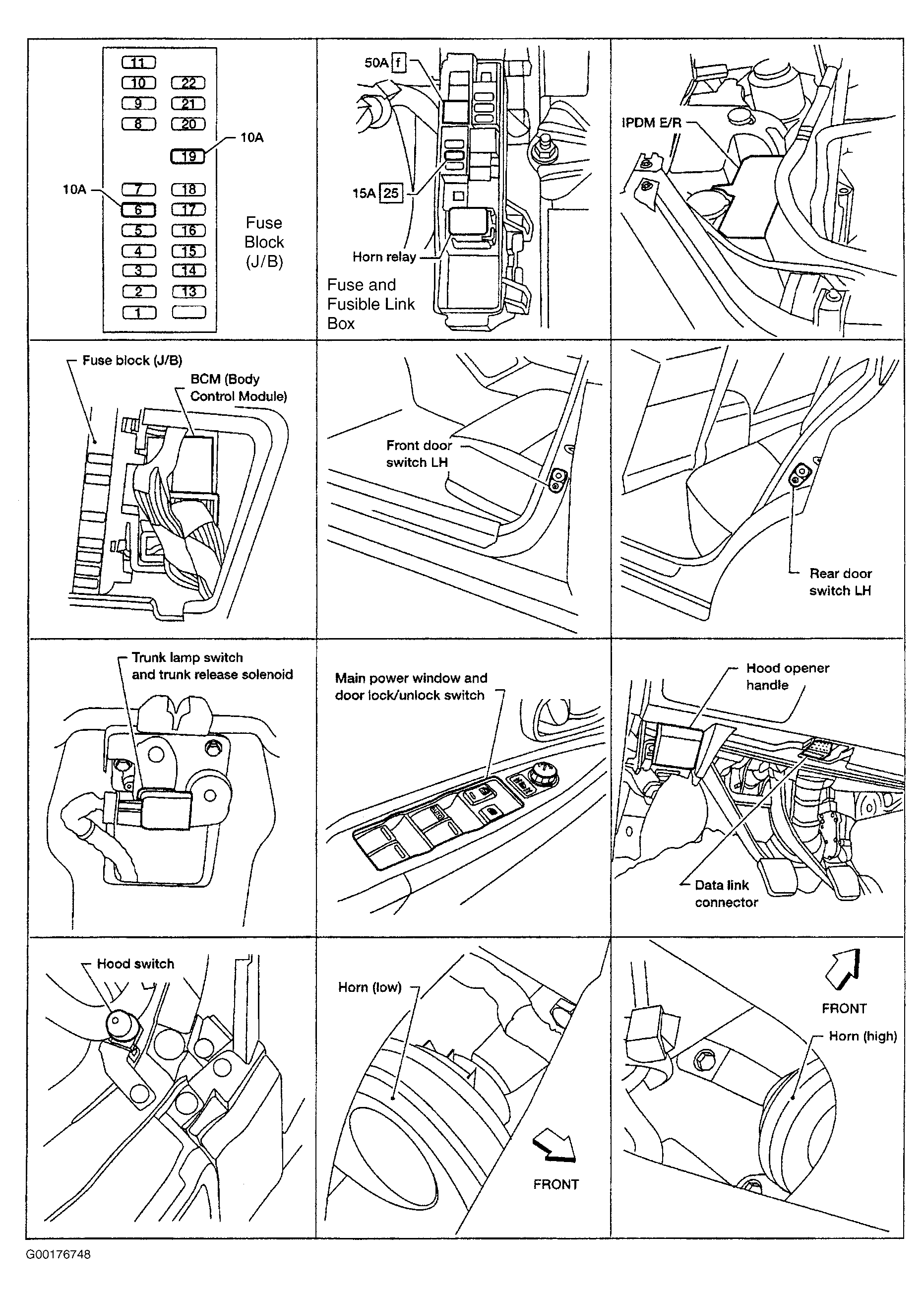

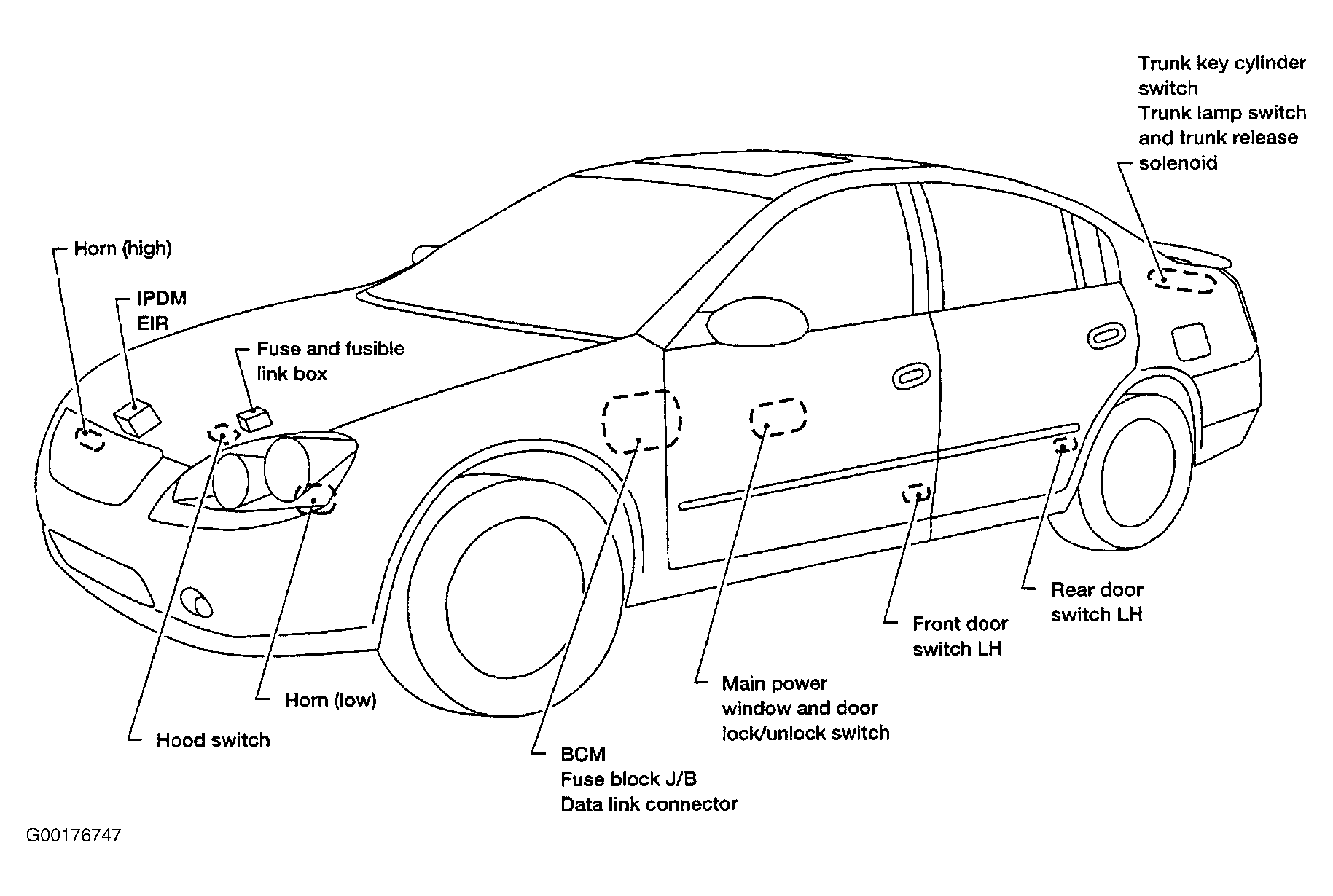

| Body Control Module | Behind Left End Of Dash, See Fig 1 and Fig 2 |
| Data Link Connector | Under Dash, In Front Of Driver |
| Door Switch, Left Front | Under Left Front Door Striker, See Fig 1 and Fig 2 |
| Door Switch, Left Rear | Under Left Rear Door Striker, See Fig 1 and Fig 2 |
| Fuse Block (J/B) | Next To BCM, See |
| Fuse & Fusible Link Box | Under Hood, Next To Battery, See Fig 1 and Fig 2 |
| Hood Switch | Under Left Front Corner Of Hood, See Fig 1 and Fig 2 |
| Horn (High) | Behind Right Headlight, See Fig 1 and Fig 2 |
| Horn (Low) | Behind Left Headlight, See Fig 1 and Fig 2 |
| Intelligent Power Distribution Module | Under Hood, Next To Washer Bottle, See Fig 1 and Fig 2 |
| Main Power Window & Door Lock/Unlock Switch | On Left Front Door Panel Arm Rest, See Fig 1 and Fig 2 |
| Trunk Lamp Switch & Trunk Release Solenoid | In Trunk, Under Deck Lid Latch, See Fig 1 and Fig 2 |
