Trunk Lid Key Unlock Signal Check

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For step 1, see Fig 1 .
For step 2, see Fig 2 .

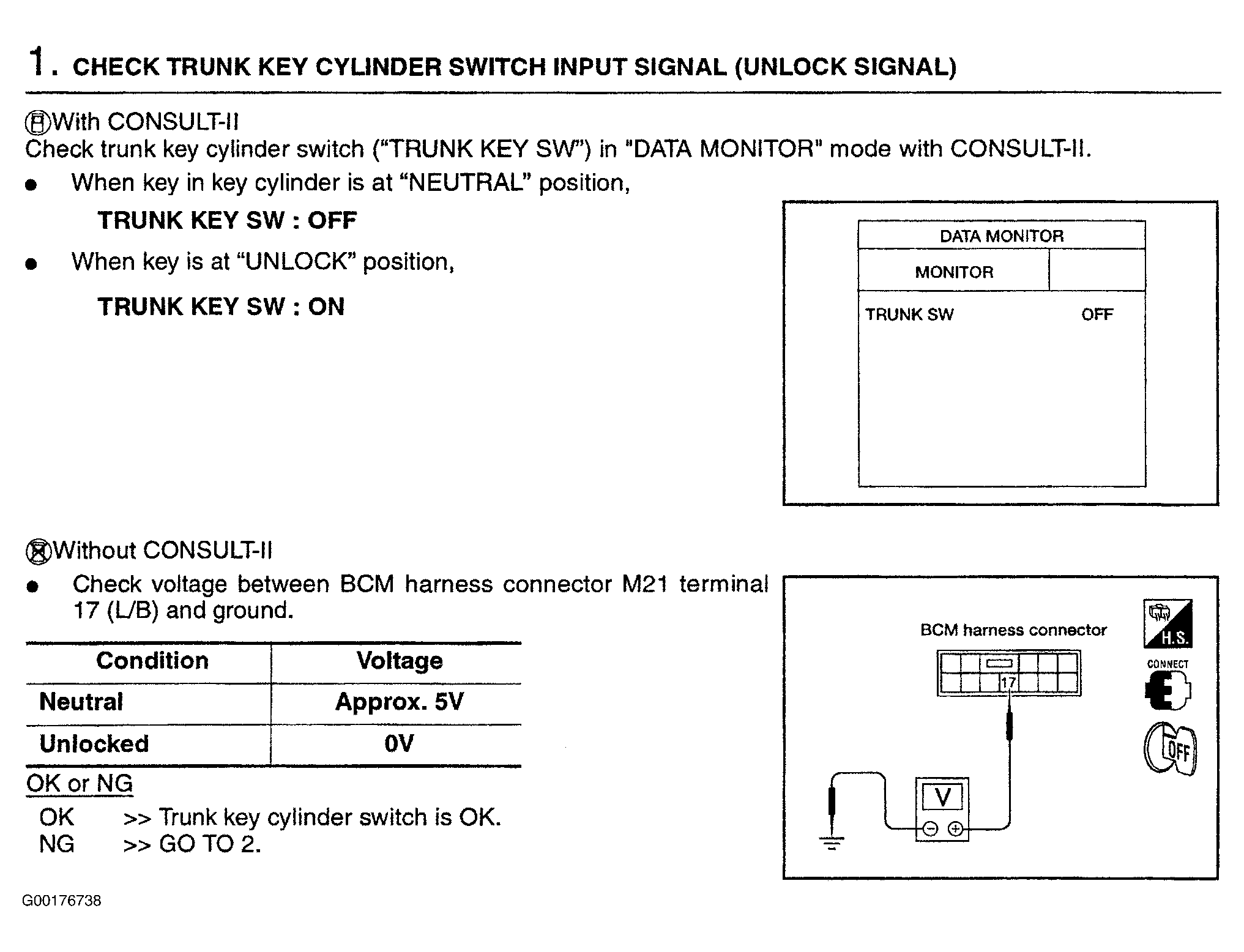

Fig 1: Identifying Trunk Lid Key Unlock Signal Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Trunk Lid Key Unlock Signal Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
