Inspection In Auto Active Test Mode

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When auto active test mode is actuated the following 7 steps in Fig 1 , are repeated 3 times.

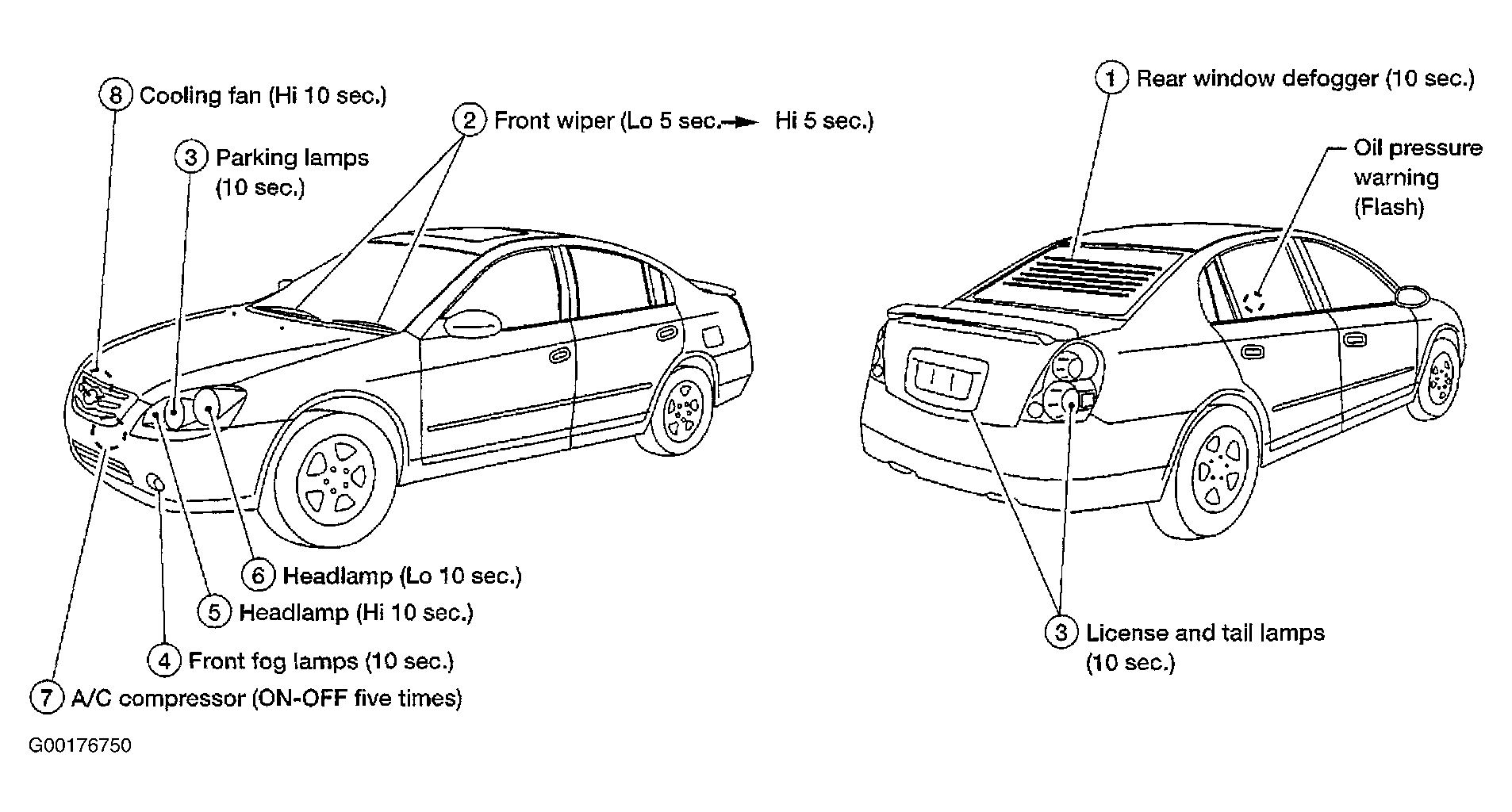

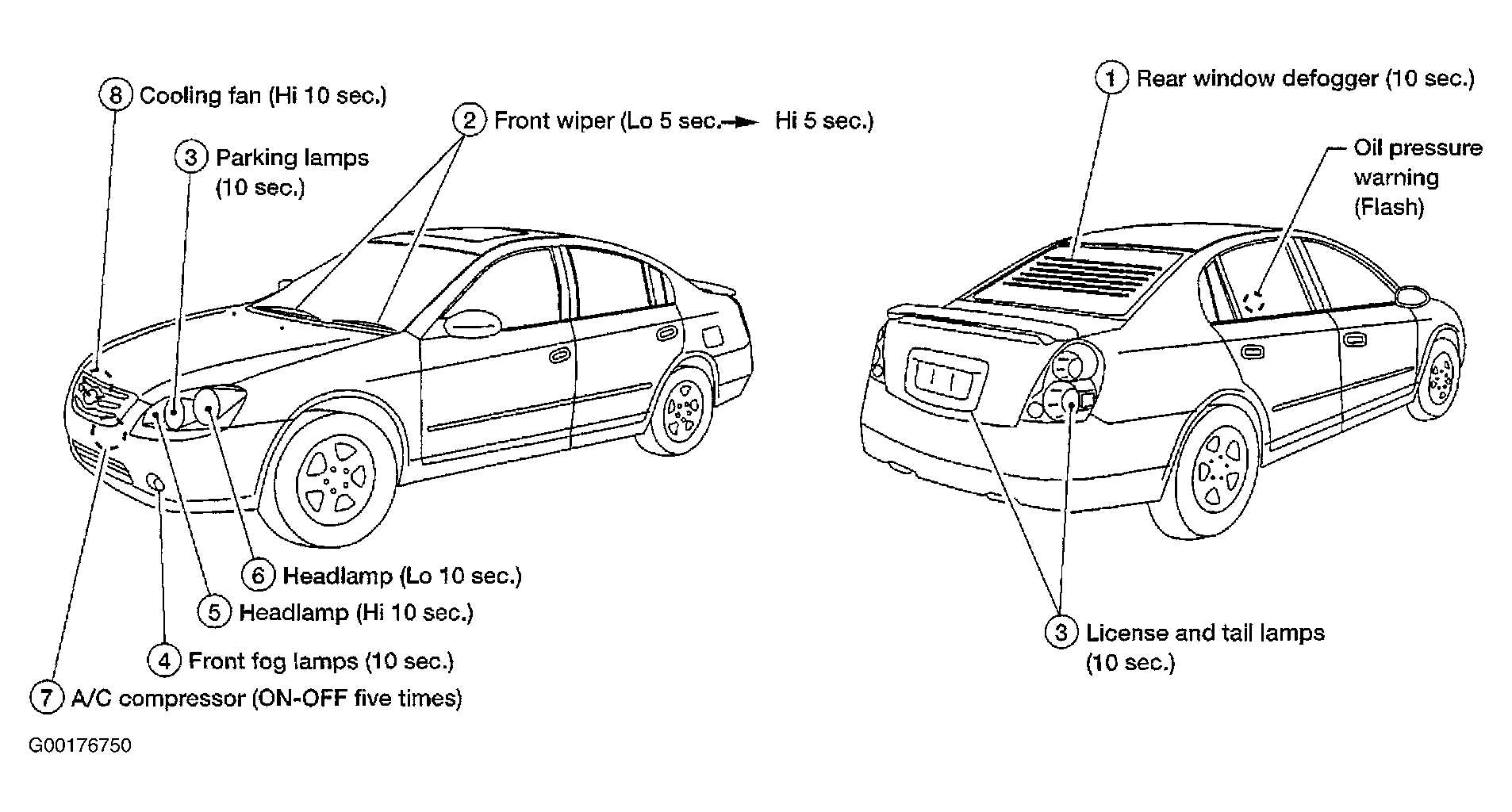

Fig 1: Inspection Steps In Auto Active Test Mode
G00176750Courtesy of NISSAN MOTOR CO., U.S.A.
