Component Locations

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Application Location
ASCD Brake & Stop Lamp Switch Mounted On Brake Pedal Lever, See Fig 1
ASCD Clutch Switch Mounted On Clutch Pedal Lever, See Fig 2
ASCD Steering Switch Mounted On Steering Wheel, See Fig 3
Electronic Throttle Control Actuator Mounted On Throttle Body, See Fig 4
Engine Control Module Mounted Behind Glove Box, See Fig 5

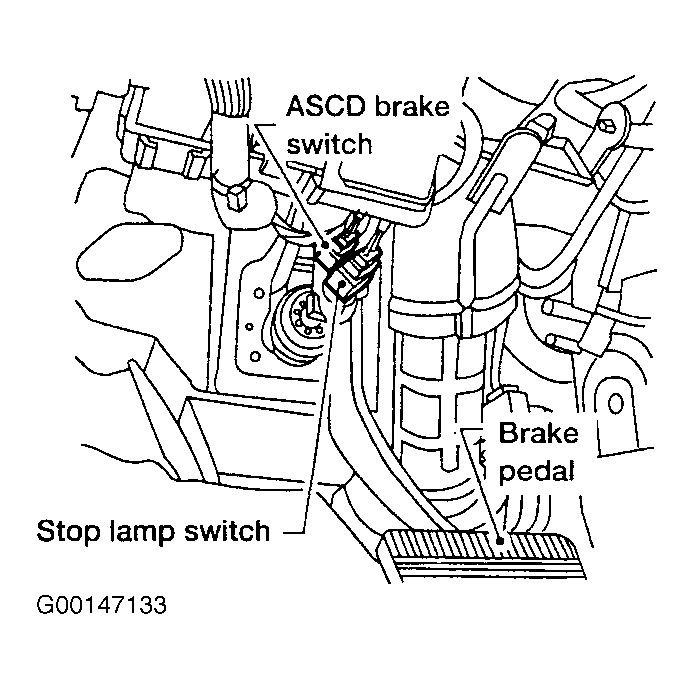

Fig 1: Locating ASCD Brake Switch & Stop Lamp Switch
G00147133Courtesy of NISSAN MOTOR CO., U.S.A.

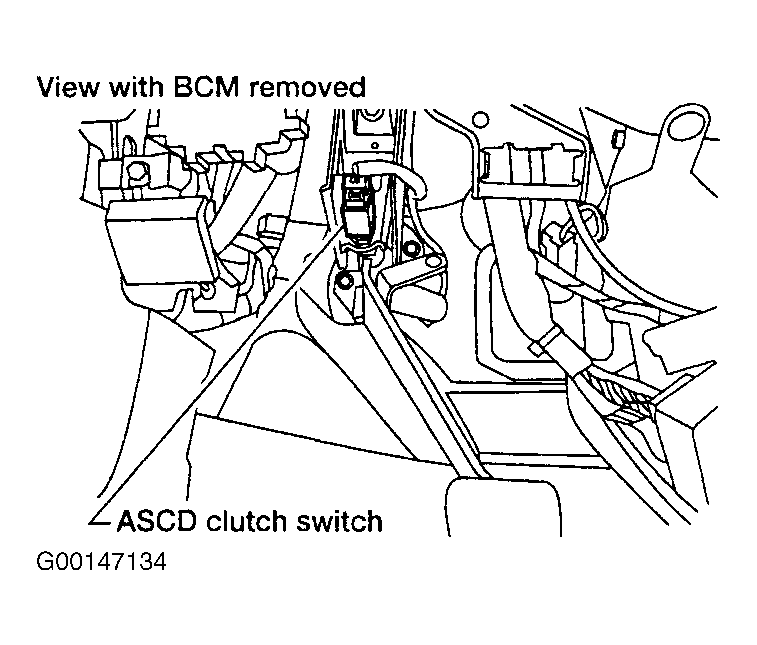

Fig 2: Locating ASCD Clutch Switch
G00147134Courtesy of NISSAN MOTOR CO., U.S.A.

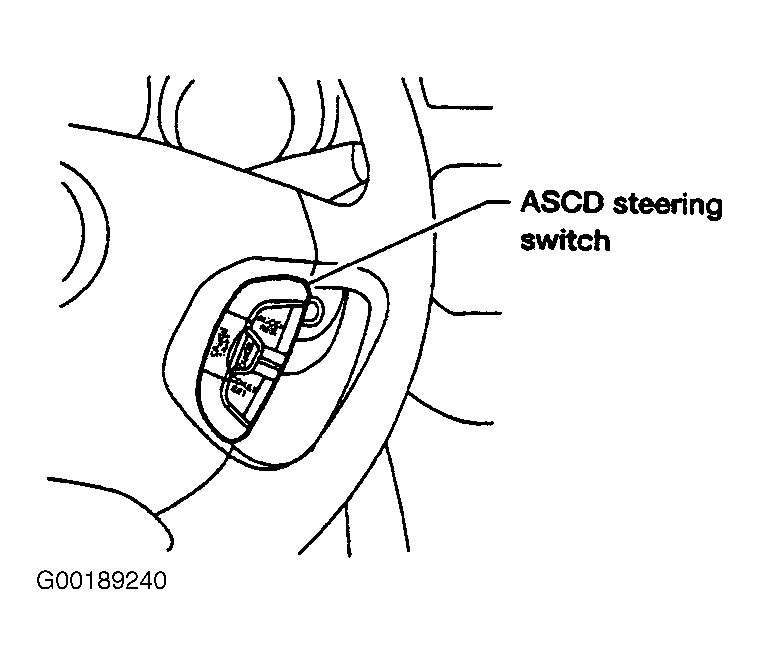

Fig 3: Locating ASCD Steering Switch
G00189240Courtesy of NISSAN MOTOR CO., U.S.A.

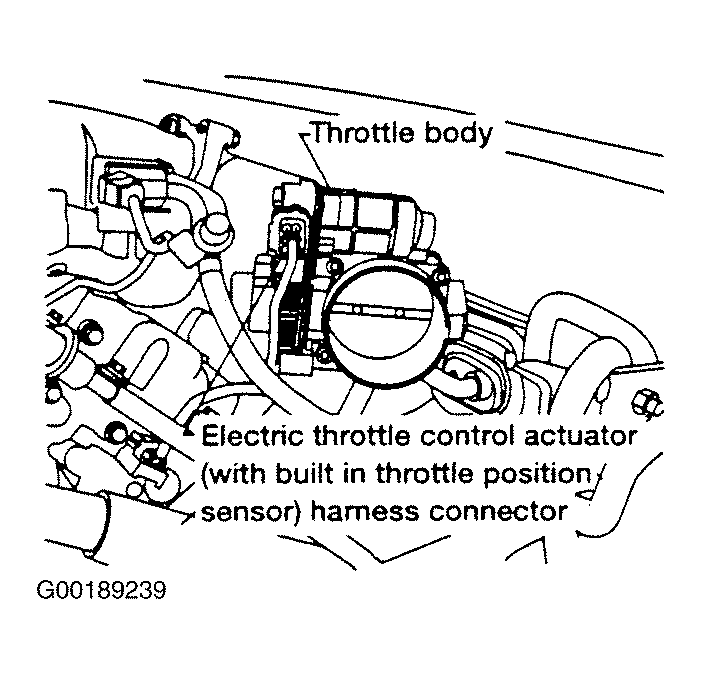

Fig 4: Locating Electronic Throttle Control Actuator
G00189239Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Locating Engine Control Module (ECM)
G00103843Courtesy of NISSAN MOTOR CO., U.S.A.
