Transfer Fluid: Replacement: Draining

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Run the vehicle to warm up the transfer unit sufficiently.
Stop the engine, and remove the drain plug to drain the transfer fluid.
Apply sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to "COMPONENTS ".
- Use Genuine Silicone RTV or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

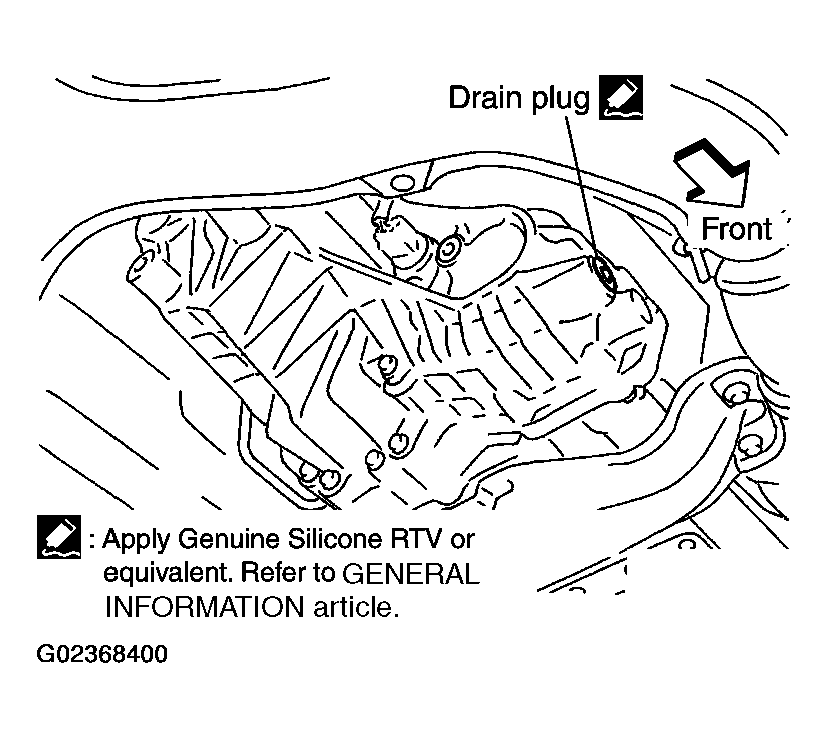

Fig 1: Locating Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
