Hydraulic Line: Components

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

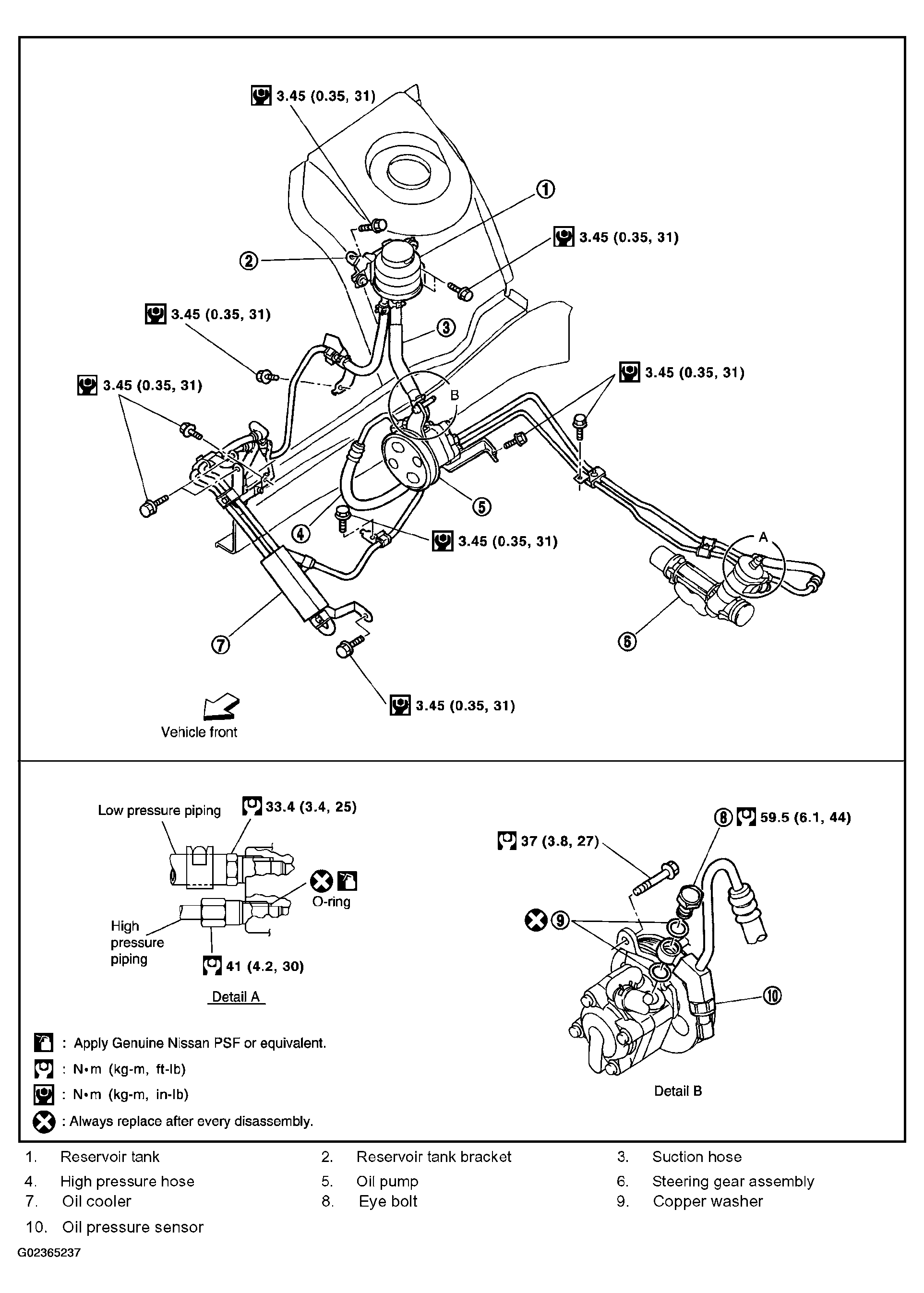

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (VQ35DE 2WD Model)
G02365237Courtesy of NISSAN MOTOR CO., U.S.A.

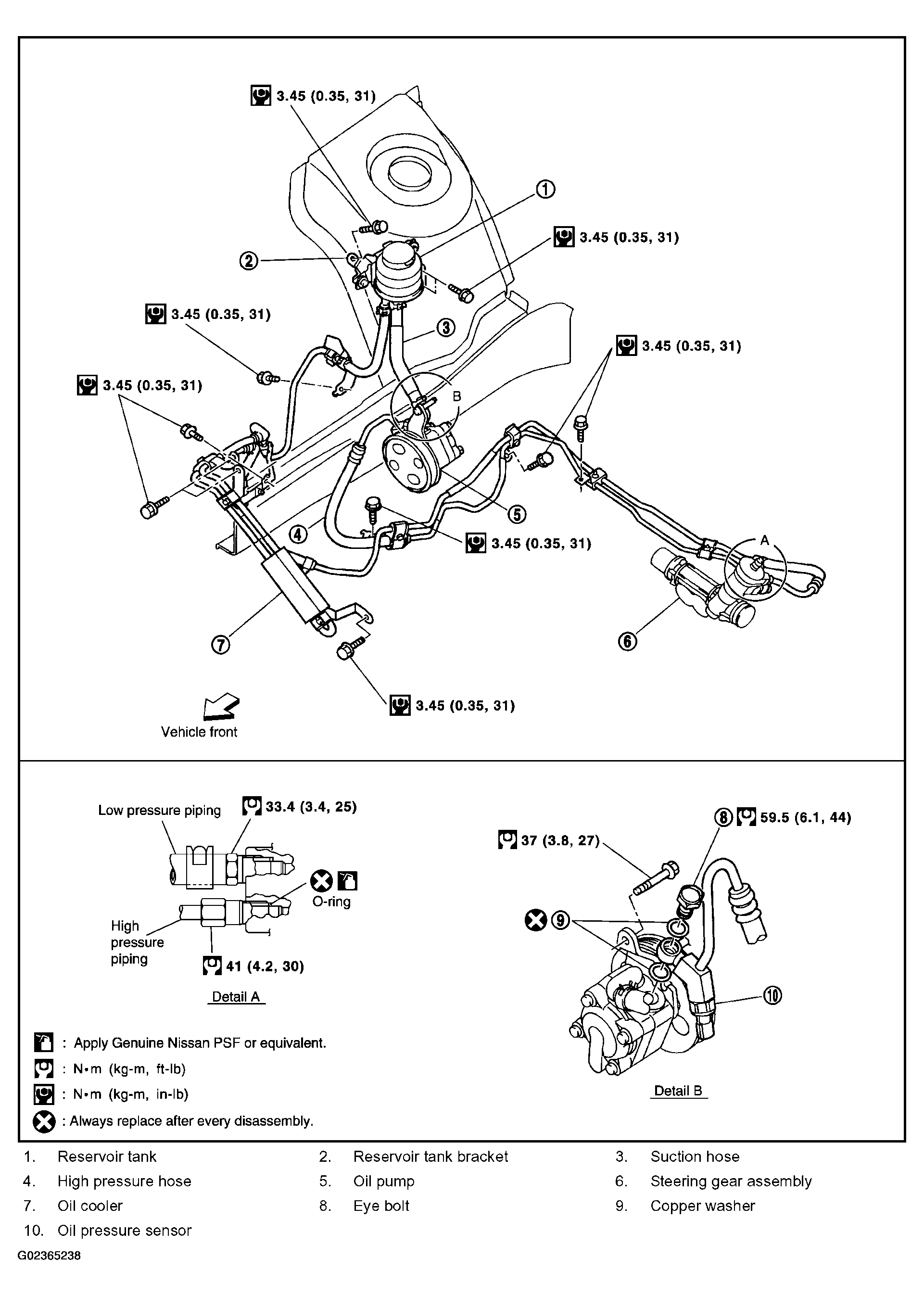

Fig 2: Hydraulic Line Replacement Components With Torque Specifications (VQ35DE AWD Model)
G02365238Courtesy of NISSAN MOTOR CO., U.S.A.
