Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Remove all parts from jacket tube assembly.

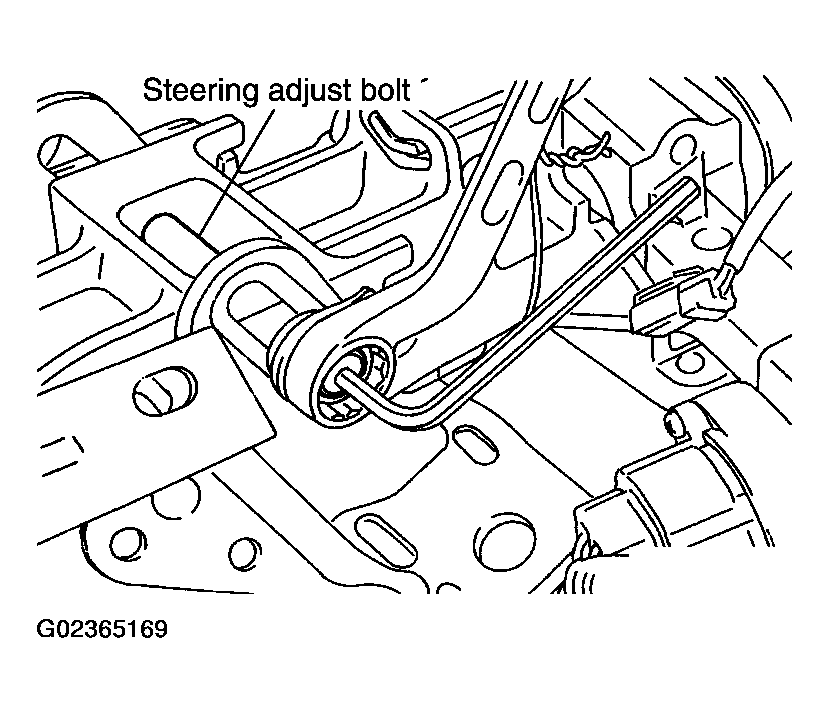

When remove tilt lever, perform as shown in the figure.

Fig 1: Removing Tilt Lever And All Parts From Jacket Tube Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

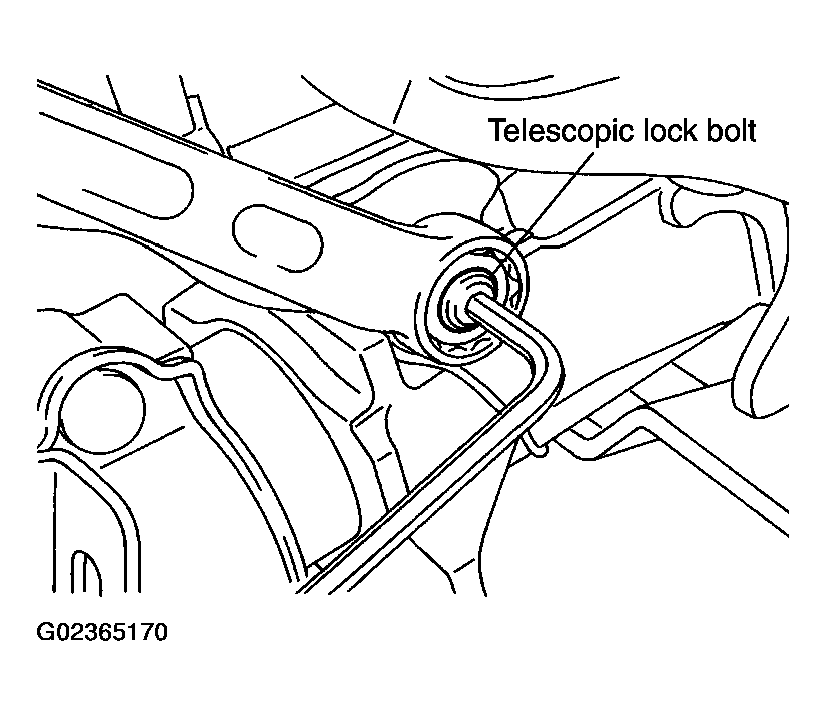

When remove telescopic lever, perform as shown in the figure.

Fig 2: Removing Telescopic Lock Bolt And Lever
Courtesy of NISSAN MOTOR CO., U.S.A.

Disassemble the parts from jacket tube. The parts to be disassembled are shown in the figure.
