Consult-II Basic Operation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

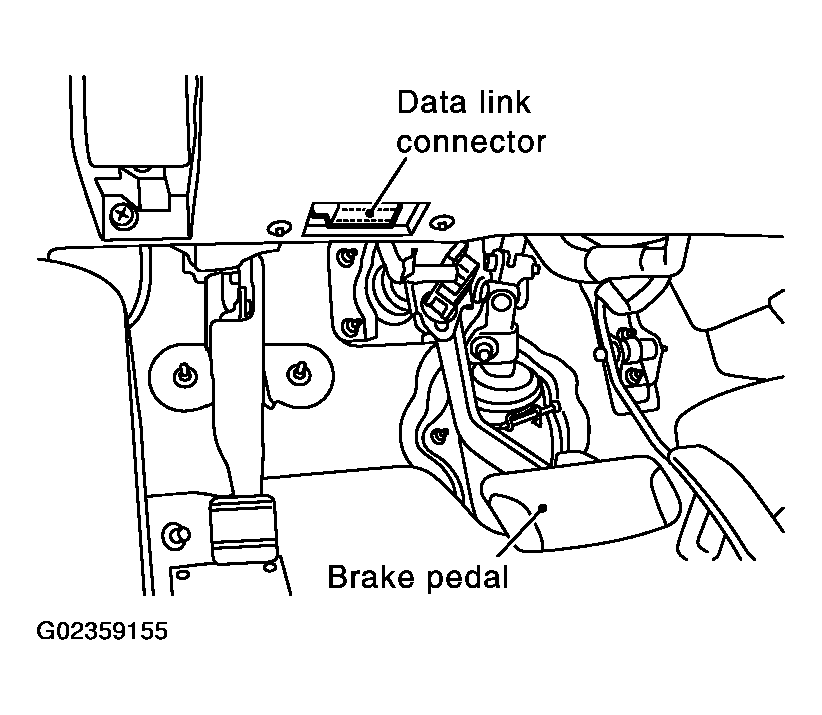

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

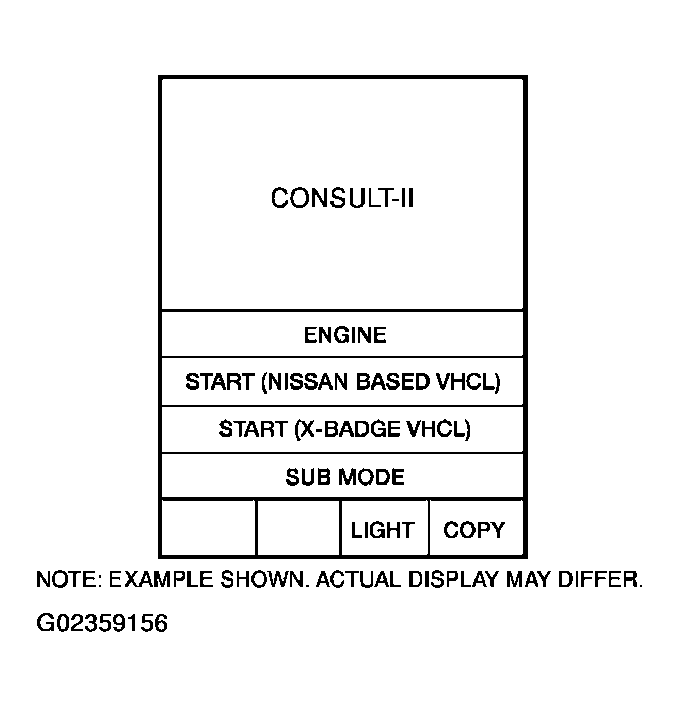

Fig 2: CONSULT-II Diagnosis Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

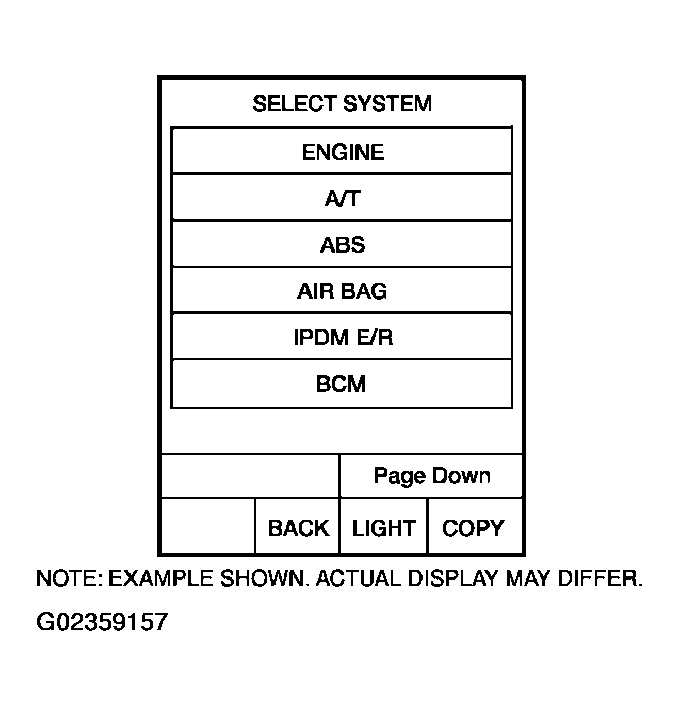

Fig 3: CONSULT-II Diagnosis Function Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.

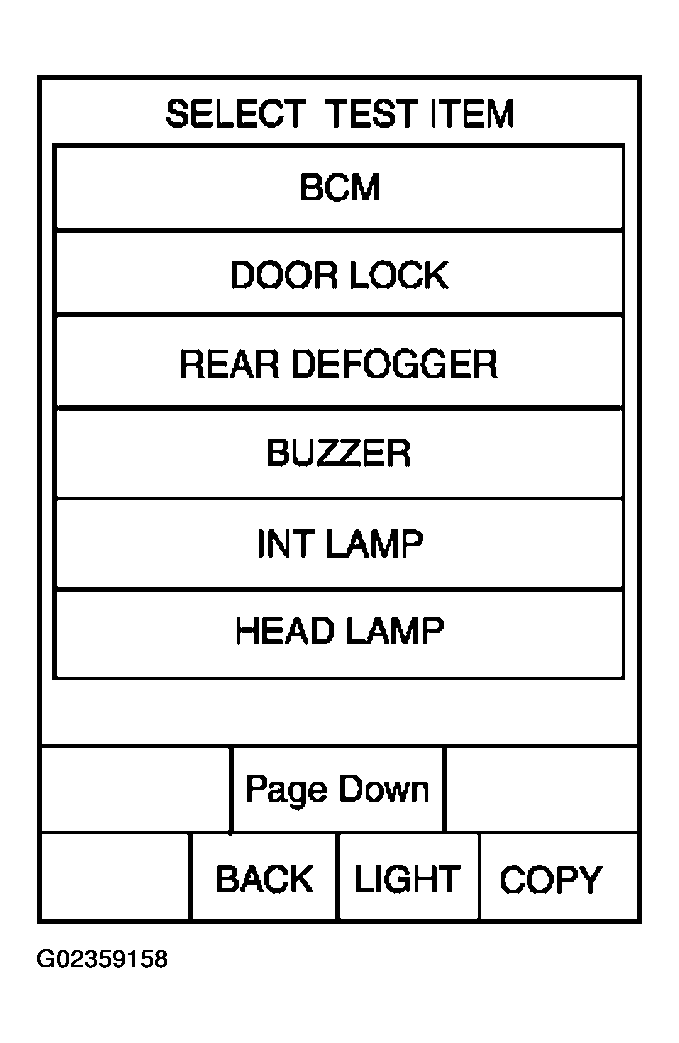

Fig 4: CONSULT-II Diagnosis Function Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
