Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
  2. Touch item to be tested, and check operation.
  3. Touch "START".
  4. Touch "STOP" while testing to stop the operation.

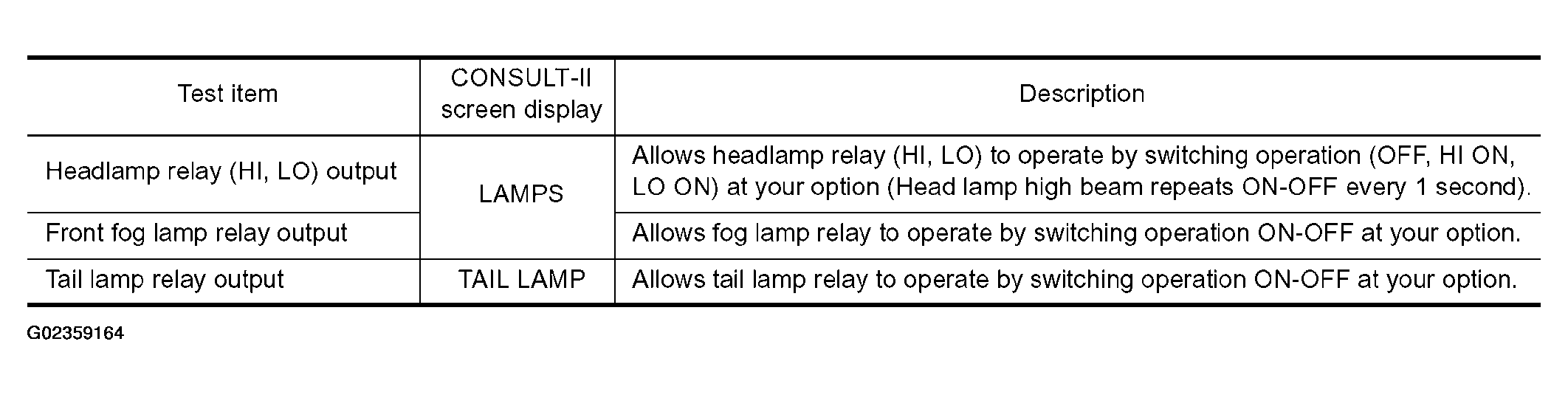

    Fig 1: Test Item Description Table
    G02359164Courtesy of NISSAN MOTOR CO., U.S.A.
